AGILITY TUBE
ONLINE CATALOGUE › HOSES › Flexible pipes for ventilation or cold air intakes
Download sheet in pdf format

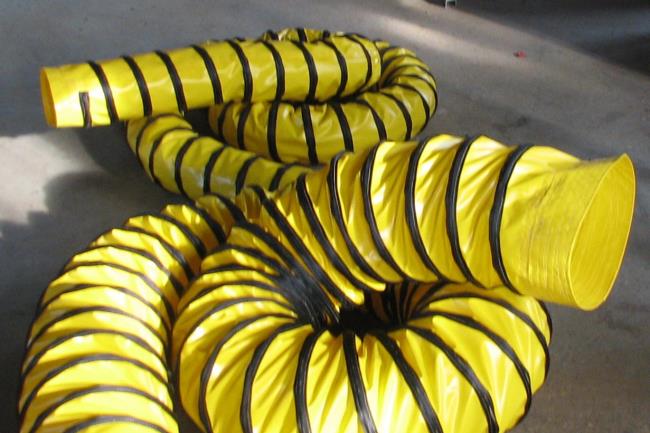

Flexible hose made of yellow or red PVC-coated polyester fabric , external metal spiral covered with a black polyester tape . Ends with smooth sleeves with reinforced wall without metal spiral. Interior perfectly smooth when stretched. High tensile strength for seam construction.
Operating temperature: –20° +90° C.
Radius of curvature 0.7 times the diameter.
Production diameters from 102 to 1200.
Standard lengths: 4 – 6 metres, others on request.

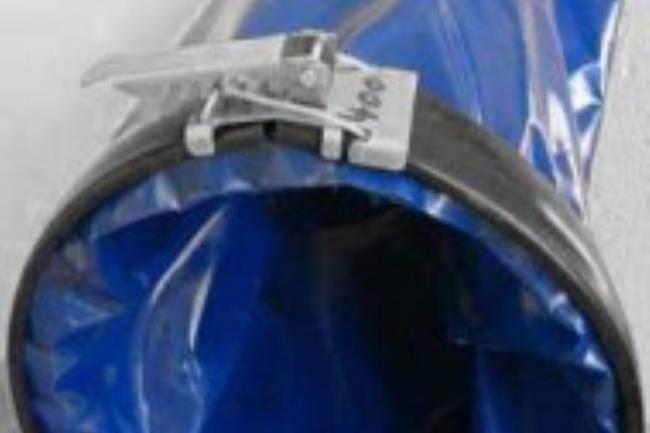

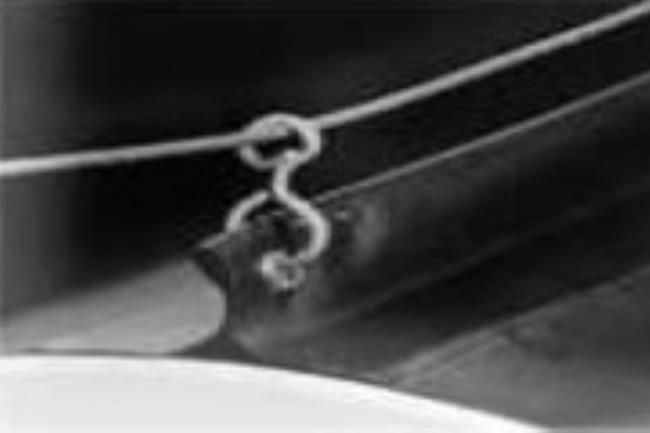

Ends reinforced by inserted rigid hoops, sewn metal eyelets for passage to the ground or cables suspended via hooks and rings.
Ideal for the pressurized conduction of hot air produced by portable heaters. Particularly suitable for sports facilities for training rescue and defense dogs, playgrounds, schools and kindergartens. The tube can also be used in case of light suction.

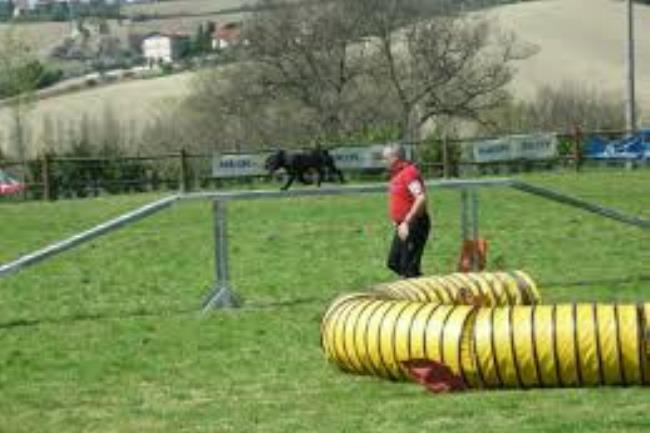

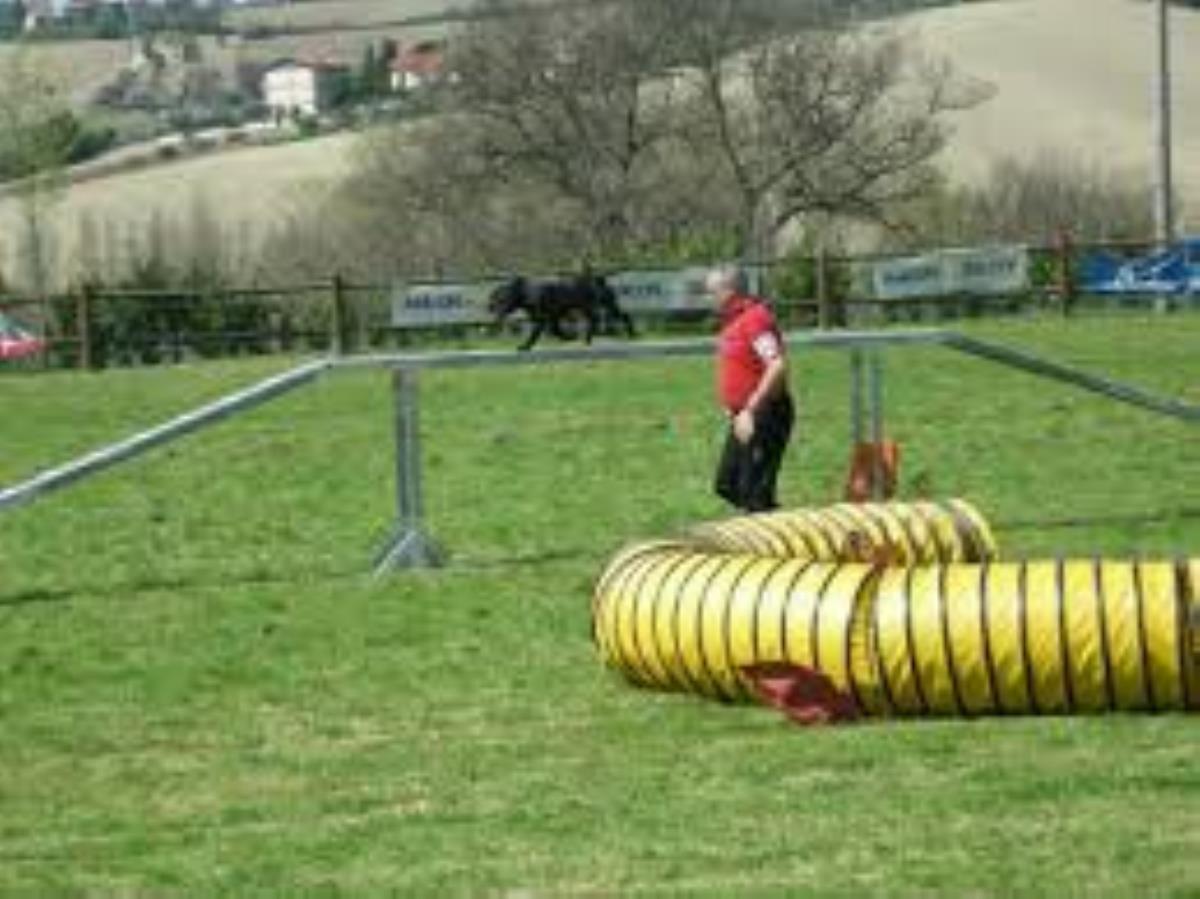

Ideal hose for dog training, of dogs in general.
Operating temperature: –20° +90° C.
Radius of curvature 0.7 times the diameter.
Production diameters from 102 to 1200.
Standard lengths: 4 – 6 metres, others on request.
Ends reinforced by inserted rigid hoops, sewn metal eyelets for passage to the ground or cables suspended via hooks and rings.
Ideal for the pressurized conduction of hot air produced by portable heaters. Particularly suitable for sports facilities for training rescue and defense dogs, playgrounds, schools and kindergartens. The tube can also be used in case of light suction.
Ideal hose for dog training, of dogs in general.
| Dimension mm | Depression mBar | Pressure maximum mBar |
|---|---|---|
| 102 | 50 | 3000 |
| 127 | 50 | 3000 |
| 152 | 50 | 3000 |
| 160 | 50 | 3000 |
| 178 | 50 | 2750 |
| 203 | 50 | 2750 |
| 220 | 30 | 2750 |
| 229 | 30 | 2750 |
| 254 | 30 | 2250 |
| 305 | 30 | 1750 |
| 356 | 30 | 1500 |
| 380 | 30 | 1300 |
| 407 | 30 | 1250 |
| 425 | 30 | 1200 |
| 457 | 30 | 1100 |
| 508 | 25 | 1000 |
| 525 | 25 | 1000 |
| 600 | 20 | 850 |
| 760 | 15 | 750 |
