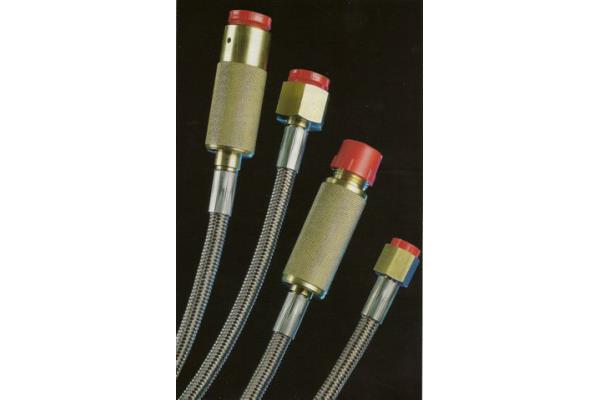

FLEXIBLE CRYOGENIC HOSES IN BRAIDED PTFE
ONLINE CATALOGUE › HOSES › Flexible hoses in PTFE - FEP - PFA
Download sheet in pdf format
Sintered PTFE tube, injection extruded, resistant to all chemical agents and non-toxic, food grade compound. Excellent resistance to chemicals, flame, heat, excellent dielectric and fireproof properties, unchanged in contact with ozone and ultra-violet rays. Excellent resistance to permeation. Operating temperature: -60° +240° C.
AISI 304 stainless steel external braid.
Burst pressures guaranteed up to 1000 bar.
Recommended for use together with the appropriate steel cable.
AISI 304 stainless steel external braid.
Burst pressures guaranteed up to 1000 bar.
Recommended for use together with the appropriate steel cable.
| Dimensions Ø mm | Dimensions Ø inch | Working pressure bar | Burst pressure bar | bending radius mm |
|---|---|---|---|---|
| 6.5 | 1/4 | 365 | 1100 | 35 |
| 8 | 5/16 | 315 | 950 | 40 |
| 11 | 7/16 | 285 | 850 | 60 |
| 13 | 1/2 | 265 | 800 | 70 |
| 16 | 5/8 | 235 | 700 | 110 |
| 19 | 3/4 | 200 | 600 | 240 |
| 22 | 7/8 | 165 | 500 | 260 |
| 25 | 1 | 150 | 450 | 310 |
| 29 | 1.1/8 | 135 | 400 | 370 |
