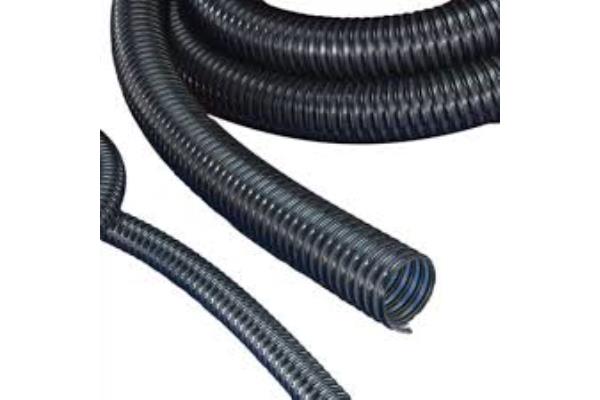

PUP-P 1.5 TUBE SWEEPER
ONLINE CATALOGUE › HOSES › Dust and chip suction polyurethane hoses
Download sheet in pdf format
use of suction of Pulvirenti products on (municipal vehicle) sweeper or fixed systems
Property:
- Heavy execution
- highly flexible + compressible
- highly abrasion resistant
- Protected and aerodynamically optimised external fold
- resistant to microbes
- excellent cold flexibility
- according to DIN 26057 type 3
- REACH according to -> Technical information / technical / REACH
- RoHS compliant
- Temperature range: -40°C to 90°C
- Pipe with smooth internal profile and corrugated external profile
- armed with harmonic steel wire embedded in the wall
- Wall thickness approx. 1.4 - 1.5 mm depending on diameter
- Packs of 10 meters.
| DIAMETER INTERNAL | DIAMETER EXTERNAL | PRESSURE | DEPRESSION | RADIUS OF CURVATURE | WEIGHT |
| mm | mm | bar | bar | mm | Kg/m |
| 160 | 173 | 0.365 | 0.195 | 200 | 2.40 |
| 180 | 193 | 0.385 | 0.165 | 260 | 2.70 |
| 203 | 216 | 0.367 | 0.125 | 330 | 3.16 |
| 225 | 238 | 0.335 | 0.100 | 364 | 3.50 |
| 254 | 267 | 0.285 | 0.080 | 407 | 3.93 |
| 275 | 288 | 0.270 | 0.075 | 425 | 4.25 |
