FLAT-FLEX
ONLINE CATALOGUE › HOSES › Compressed air hoses
Download sheet in pdf format

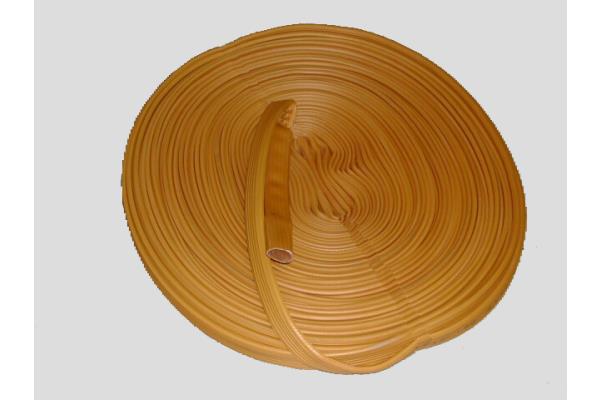

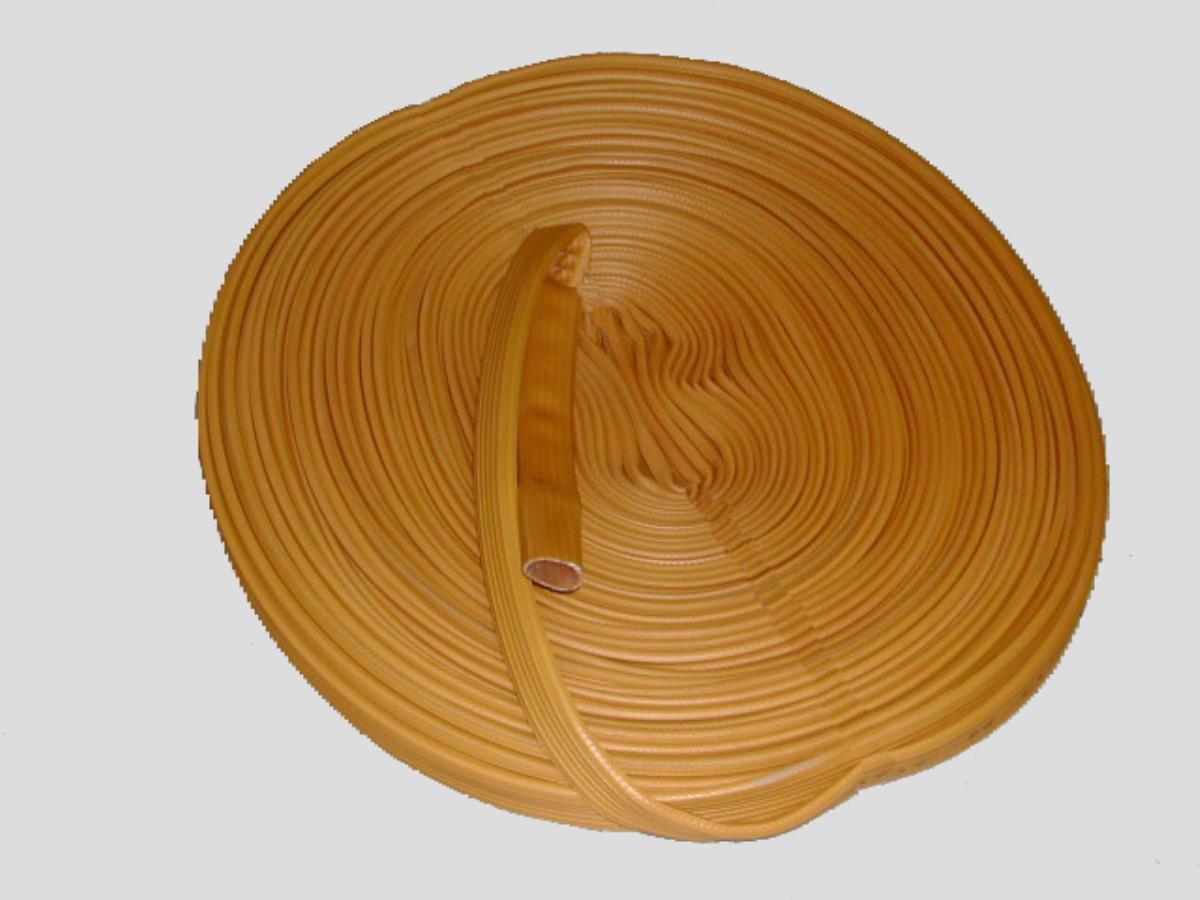

Extremely lightweight flattening hose for compressed air delivery, resistant to traces of oil mist. Smooth yellow nitrile rubber tube, high tenacity textile inserts, weather, ozone and abrasion resistant synthetic rubber cover. Smooth yellow outer surface with longitudinal rib.
Operating temperature: -20°C +80°C.
Other sizes, lengths and colors are available upon request.
Yellow color
Operating temperature: -20°C +80°C.
Other sizes, lengths and colors are available upon request.
Yellow color
| NAME | Pressure of exercise bar | Pressure of explosion bar | Weight kg/m | rolls m |
| 19 | 25 | 100 | 0.20 | 60 |
| 25 | 29 | 115 | 0.25 | 60 |
| 38 | 16 | 63 | 0.45 | 60 |
| 51 | 16 | 63 | 0.64 | 60 |
