STAINLESS STEEL BRAIDED CONVOLVED TEFLON/PTFE HOSE

ONLINE CATALOGUE  ›  HOSES  ›  Chemical hoses



Download sheet in pdf format
PTFE tube with helical internal profile, reduced microporosity and high resistance to breaking loads. High flexibility combined with low permeability make this tube ideal for the passage of aggressive gases or fluids and all chemical or food agents.
Flame and heat resistant, it has excellent dielectric and flame retardant properties, unaltered by contact with ozone and ultra-violet rays. 304 stainless steel braid.

PROPERTY'
  • Chemically inert
  • Wide temperature range
  • Low friction coefficient

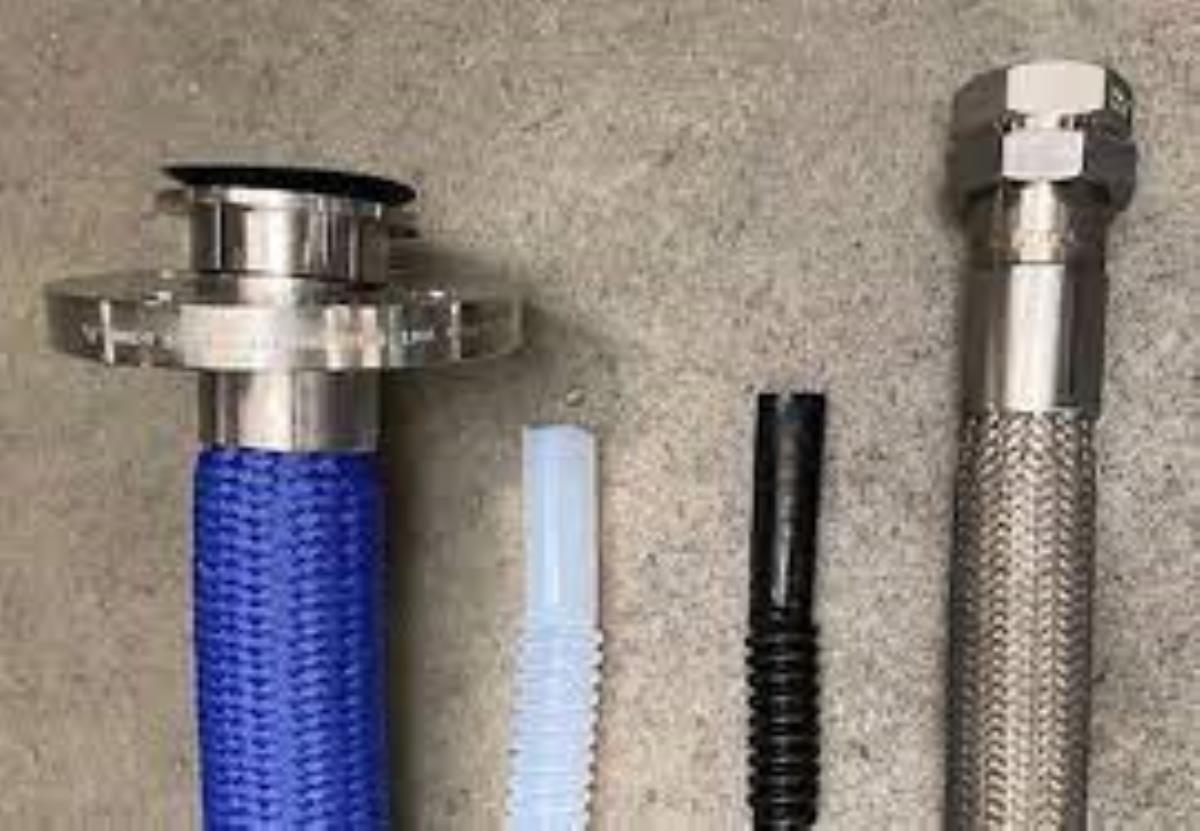

VERSIONS
  • Convoluted PTFE without braid (bare)

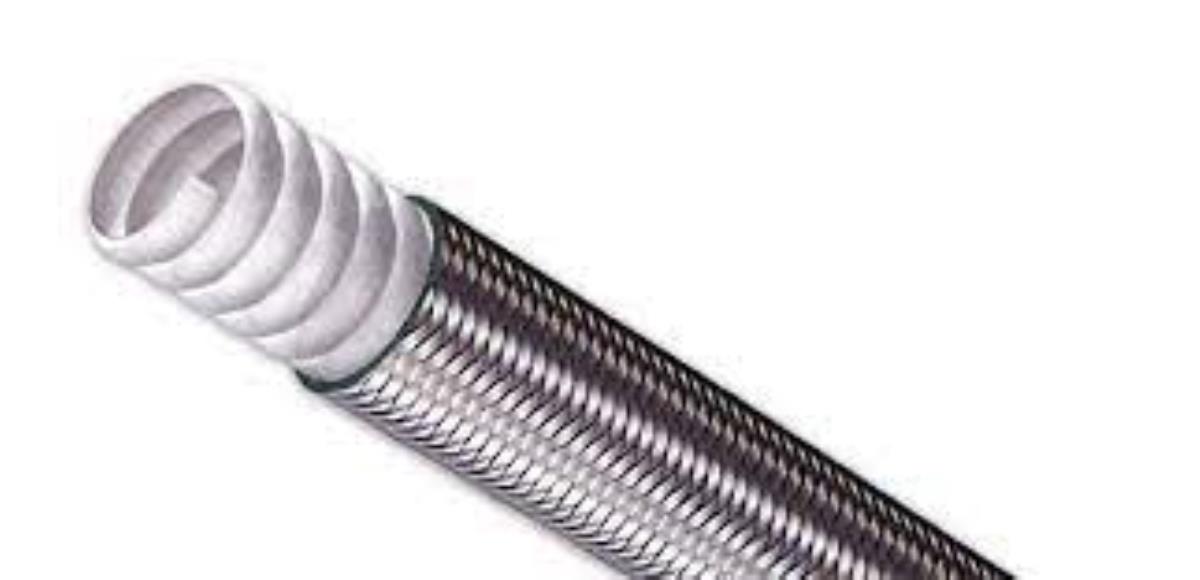

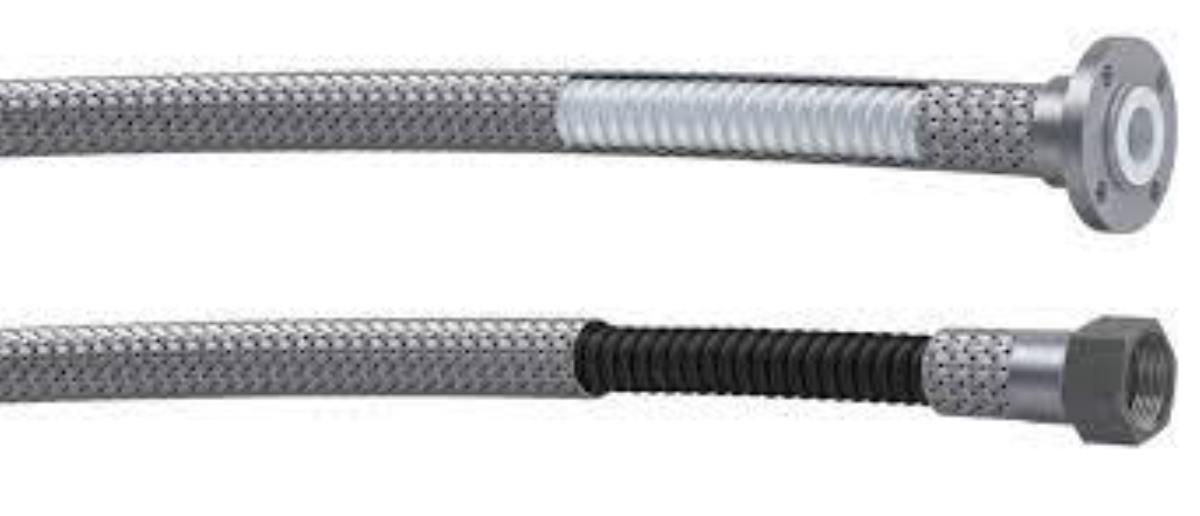

  • WHITE PTFE convoluted with AISI304 stainless steel braid
  • Antistatic BLACK PTFE convoluted with AISI304 stainless steel braid

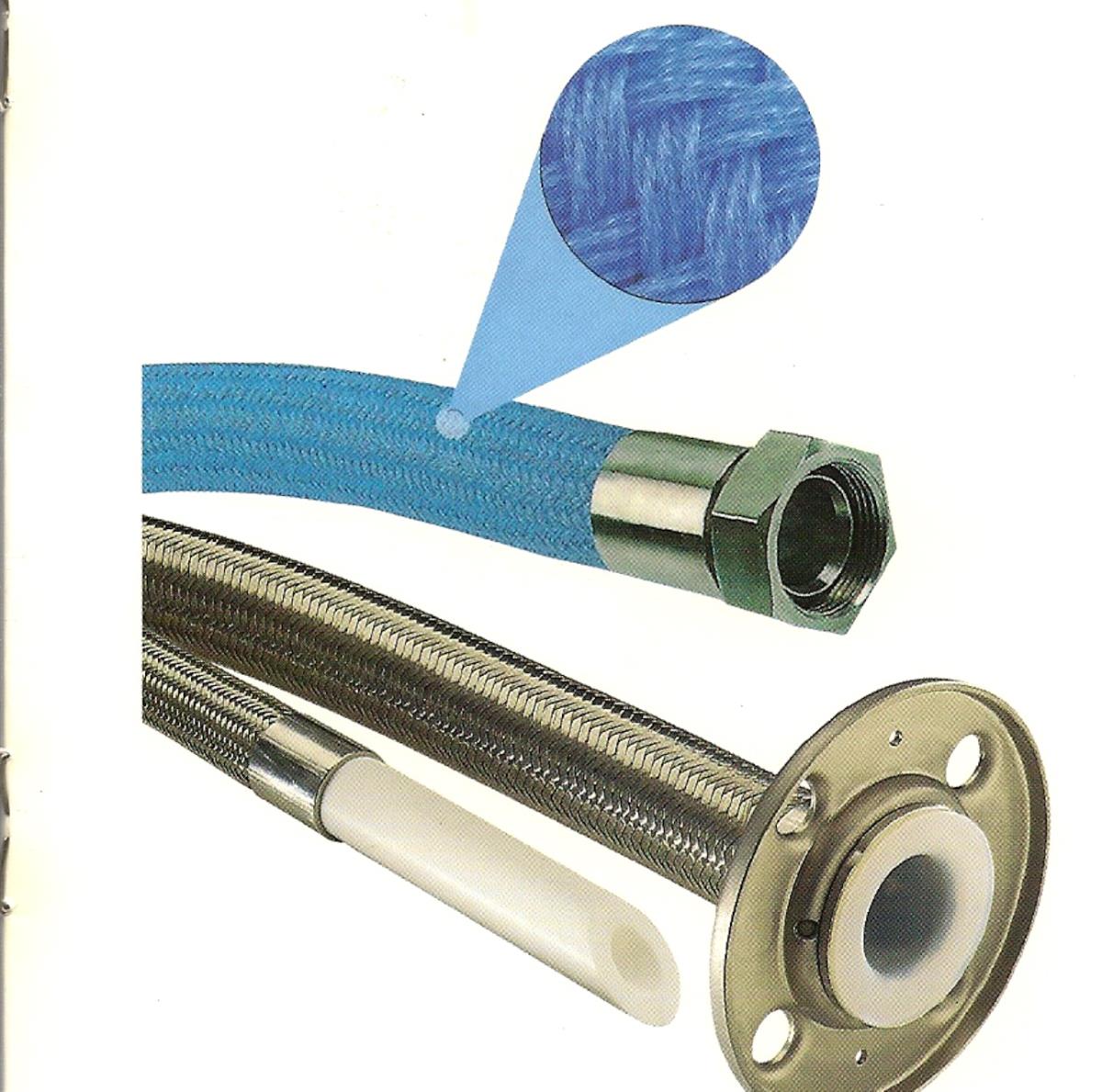

  • WHITE PTFE convoluted with BLUE POLYPROPYLENE braid
Electrical properties
White = R Black = R<100MO.

regulations
  • Operating temperature:-70° +260° C
  • FDA 21 CFR 177.1550 approved compound
  • Compound approved by USP Class VI requirements
  • Mix approved by EU regulation 1935/2004
Optional additional coating in black vulcanized EPDM rubber, or in transparent silicone, on request

Joints and fittings: Made to order, the pipes can be connected with any type of stainless steel hose connector, even PTFE coated, including the flanged folders on the flange folders.
Technical specifications 1 high-strength steel braid
thumb ID internal diameter mm Curvature radius mm Operating pressure bar Burst pressure bar 20°C Vacuum mbar 20°C maximum length Weight gr/m
1 high-strength steel braid
1/4" 6 12 35 170 744 20 122
3/8 " 10 24 35 170 744 20 168
1/2 " 13 29 60 250 887 20 197
5/8 " 16 35 55 170 887 20 302
3/4 " 20 59 60 290 887 20 372
1 " 25 71 40 210 887 20 604
1 1/4 " 32 94 40 210 887 20 723
1 1/2 " 38 118 35 175 887 20 1062
2 " 50 147 25 135 887 20 1282
2 1/2 " 63 230 16 80 887 20 2140
3 " 75 260 14 65 887 20 3310
4 " 100 300 10 40 887 20 4050
5 " 127 450 6 24 554 12 5500
6 " 150 520 6 24 554 12 6000


Technical specifications
Polypropylene braid, max +90°C
thumb ID internal diameter mm Curvature radius mm Operating pressure bar Burst pressure bar 20°C Vacuum mbar 20°C maximum length Weight gr/m

Polypropylene braid, max +90°C

1/4" 13 50 40 160 887 10 189
5/8 " 16 65 30 120 887 10 259
3/4 " 20 55 30 12 0 887 10 243
1 " 25 85 30 12 0 887 10 345
1 1/4 " 32 100 25 100 887 10 531
1 1/2 " 38 120 22 88 887 10 607
2 " 50 165 20 80 887 10 930
2 1/2 " 63 230 16 64 887 10 1028
3 " 75 260 14 50 887 10 1186
4 " 100 300 10 40 887 10 2710
