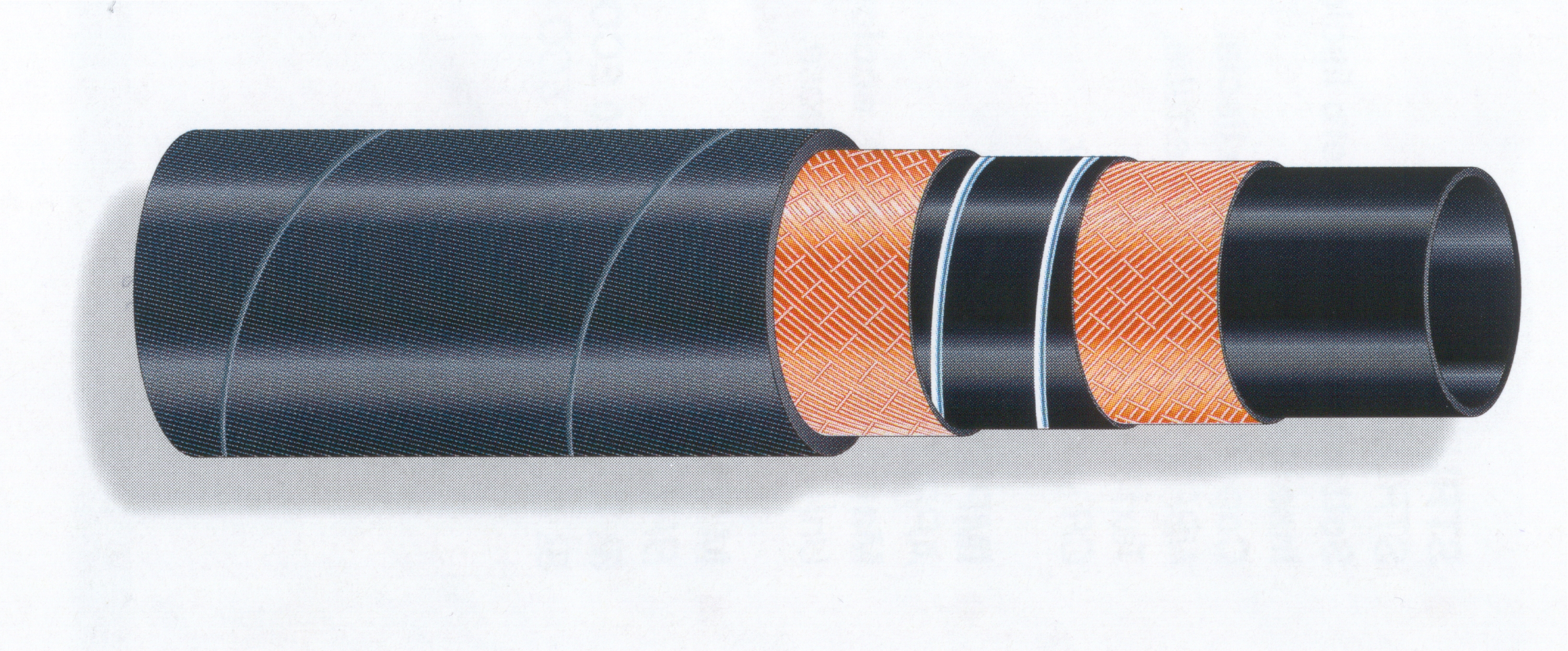

SPIRALPOLICHIMICO/16/UPE-SDTR antistatic
ONLINE CATALOGUE › HOSES › Chemical hoses
Download sheet in pdf format
Multipurpose flexible hose for the suction and delivery of highly aggressive chemical products. Hose with exceptional flexibility and manageability despite the UHMWPE tube. Exceptional minimum bending radius. Ideal for decanting tanks and shipbuilding, suitable for a wide range of chemical products, process plants. Approval: EN 12115:2011 type SD O/T
Structure:
Smooth black sub-layer in conductive UPE (High Molecular Weight Polyethylene), therefore with a Resistivity (R) less than or at most equal to 1 MOhm per meter.
In the internal part of the wall we find the reinforcing textile inserts and the steel spiral incorporated. Black EPDM rubber cover, with cloth finish, resistant to many aggressive chemical products and atmospheric agents.
Maximum working pressure 16 bar, safety coefficient 4
Vacuum suction 0.9 bar
Operating temperature: -30° +100°
Steam resistance at 140° up to a maximum of 30 minutes
40 meter rolls
Structure:
Smooth black sub-layer in conductive UPE (High Molecular Weight Polyethylene), therefore with a Resistivity (R) less than or at most equal to 1 MOhm per meter.
In the internal part of the wall we find the reinforcing textile inserts and the steel spiral incorporated. Black EPDM rubber cover, with cloth finish, resistant to many aggressive chemical products and atmospheric agents.
Maximum working pressure 16 bar, safety coefficient 4
Vacuum suction 0.9 bar
Operating temperature: -30° +100°
Steam resistance at 140° up to a maximum of 30 minutes
40 meter rolls
| Code | OR mm | Radius of curvature mm | Weight Kg/m |
|---|---|---|---|
| 07GSPIRPCHIM_SD19 | 19x31 | 95 | 0.64 |
| 07GSPIRPCHIM_SD25 | 25x37 | 125 | 0.79 |
| 07GSPIRPCHIM_SD32 | 32x44 | 160 | 0.98 |
| 07GSPIRPCHIM_SD38 | 38x51 | 190 | 1.33 |
| 07GSPIRPCHIM_SD51 | 51x67 | 255 | 2.13 |
| 07GSPIRPCHIM_SD63 | 63x79 | 315 | 2.47 |
| 07GSPIRPCHIM_SD76 | 75x92 | 380 | 3.06 |
| 07GSPIRPCHIM_SD102 | 102x118 | 510 | 4.19 |
