SPIRALCHEMICAL/10-FLEX
ONLINE CATALOGUE › HOSES › Chemical hoses
Download sheet in pdf format

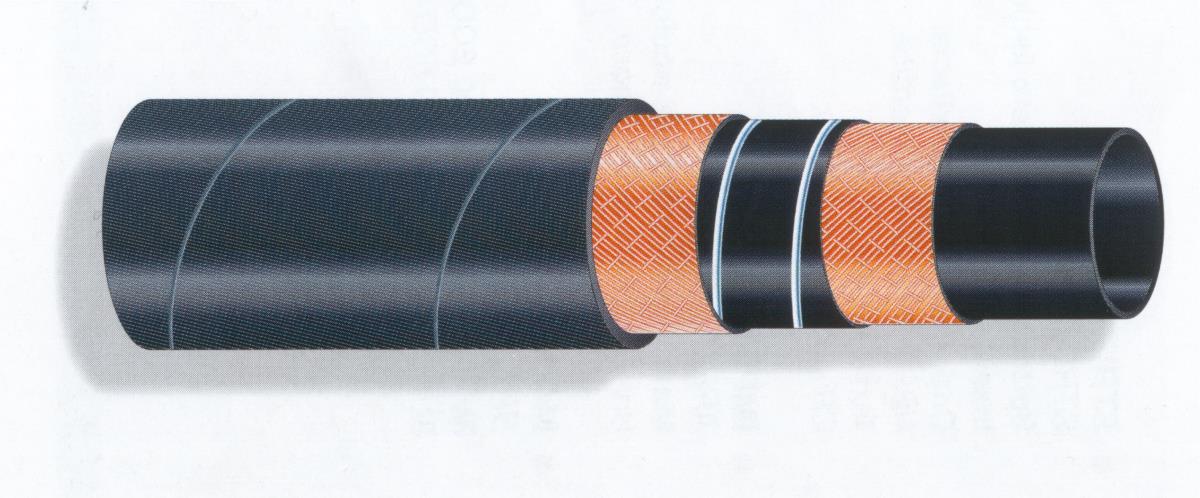

SUPERFLEXIBLE ANTISTATIC BLACK RUBBER HOSE RESISTANT TO HEAT, ABRASION, WEATHER AGENTS AND OZONE, SMOOTH EXTERNAL AND INTERNAL SURFACE
Multipurpose hose suitable for suction and pressure delivery of: hot water, sea water, neutral and basic acid solutions, water-based paints and ketones and for solvents with esters.
COVER: in ANTISTATIC black rubber R<10 6 O, high resistance textile reinforcements inserted together with the spiral
WORKING TEMPERATURE: -40° +120° C
WORKING PRESSURE: 10 BAR - BURST 30 BAR
Packed in standard 40 meter rolls.
Multipurpose hose suitable for suction and pressure delivery of: hot water, sea water, neutral and basic acid solutions, water-based paints and ketones and for solvents with esters.
COVER: in ANTISTATIC black rubber R<10 6 O, high resistance textile reinforcements inserted together with the spiral
WORKING TEMPERATURE: -40° +120° C
WORKING PRESSURE: 10 BAR - BURST 30 BAR
Packed in standard 40 meter rolls.
| Diameter internal | Diameter external | Thickness wall | Weight | Empty | Radius of curvature |
|---|---|---|---|---|---|
| 19mm | 29mm | 5 mm | 0.59 kg/m | 0.8 bar | 115mm |
| 25 mm | 35mm | 5 mm | 0.72 kg/m | 0.8 bar | 150 mm |
| 32mm | 42mm | 5 mm | 0.89 kg/m | 0.8 bar | 190 mm |
| 38mm | 49mm | 5.5mm | 1.16 kg/m | 0.8 bar | 230 mm |
| 40 mm | 51 mm | 5.5mm | 1.25 kg/m | 0.8 bar | 240 mm |
| 51 mm | 62mm | 5.5mm | 1.45 kg/m | 0.8 bar | 300 mm |
| 63 mm | 75 mm | 6 mm | 2.00 kg/m | 0.8 bar | 380 mm |
| 76 mm | 90 mm | 7 mm | 2.35 kg/m | 0.8 bar | 450 mm |
| 102mm | 116 mm | 7 mm | 3.80 kg/m | 0.8 bar | 600 mm |
