PT 125 HOSE
ONLINE CATALOGUE › HOSES › Chemical hoses
Download sheet in pdf format

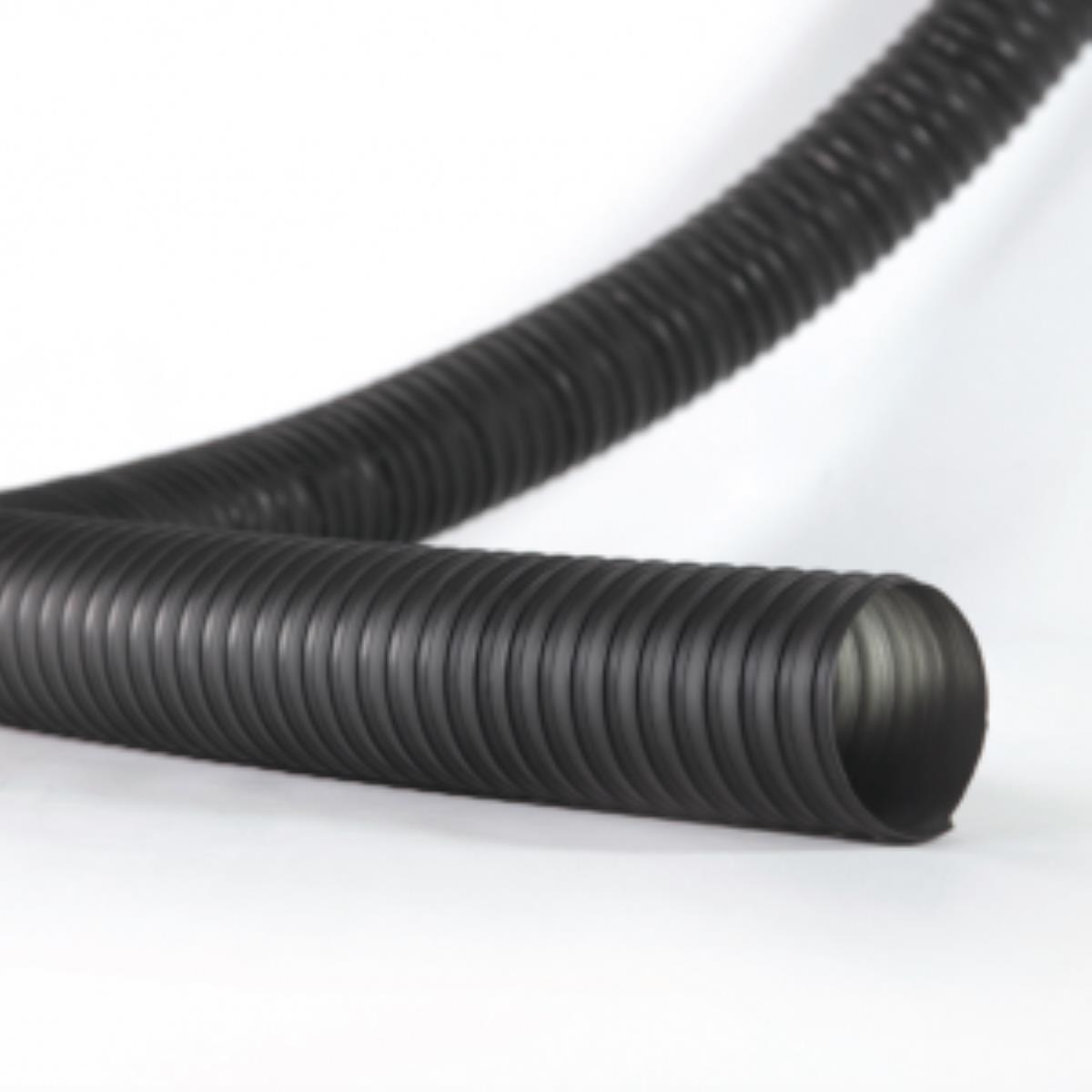

Flexible hose made of polyamide fabric impregnated with Santoprene with metal reinforcement: spiral incorporated in harmonic steel wire.
Particularly suitable for the extraction of hot and highly chemically aggressive vapours.
Reaction to fire: self-extinguishing class B1 (DIN 4102)
Operating temperature: -20° +125°C (peaks of 150°C)
Color: Black inside-outside.
production diameters: from 40mm to 700mm
Minimum production batches:
Particularly suitable for the extraction of hot and highly chemically aggressive vapours.
Reaction to fire: self-extinguishing class B1 (DIN 4102)
Operating temperature: -20° +125°C (peaks of 150°C)
Color: Black inside-outside.
production diameters: from 40mm to 700mm
Minimum production batches:
- 10 standard meters
- on request up to 20 meters up to Ø 200
- maximum 6 metres for diameters Ø 600 and Ø 700
| Item code | Dimensions OR mm | Pressure of exercise bar | Vacuum packed bar | Radius of curvature mm | Weight g/m |
|---|---|---|---|---|---|
| 11PVPT0000050 | 50 | 0.3 | 0.10 | 50 | 209 |
| 11PVPT0000060 | 60 | 0.3 | 0.09 | 60 | 255 |
| 11PVPT0000070 | 70 | 0.25 | 0.08 | 70 | 302 |
| 11PVPT0000080 | 80 | 0.20 | 0.07 | 80 | 345 |
| 11PVPT0000090 | 90 | 0.20 | 0.06 | 90 | 377 |
| 11PVPT0000100 | 100 | 0.15 | 0.05 | 100 | 562 |
| 11PVPT0000125 | 125 | 0.13 | 0.04 | 125 | 621 |
| 11PVPT0000150 | 150 | 0.11 | 0.04 | 150 | 683 |
| 11PVPT0000160 | 160 | 0.10 | 0.04 | 160 | 735 |
| 11PVPT0000180 | 180 | 0.09 | 0.03 | 180 | 840 |
| 11PVPT0000200 | 200 | 0.08 | 0.02 | 190 | 940 |
| 11PVPT0000250 | 250 | 0.07 | 0.02 | 220 | 1175 |
| 11PVPT0000300 | 300 | 0.05 | 0.01 | 260 | 1327 |
| 11PVPT0000350 | 350 | 0.04 | 0.01 | 310 | 1548 |
| 11PVPT0000400 | 400 | 0.04 | 0.01 | 360 | 1769 |
| 11PVPT0000450 | 450 | 0.03 | 0.01 | 390 | 1990 |
| 11PVPT0000500 | 500 | 0.03 | 0.01 | 420 | 2212 |
