PFA PIPE
ONLINE CATALOGUE › HOSES › Chemical hoses
Download sheet in pdf format

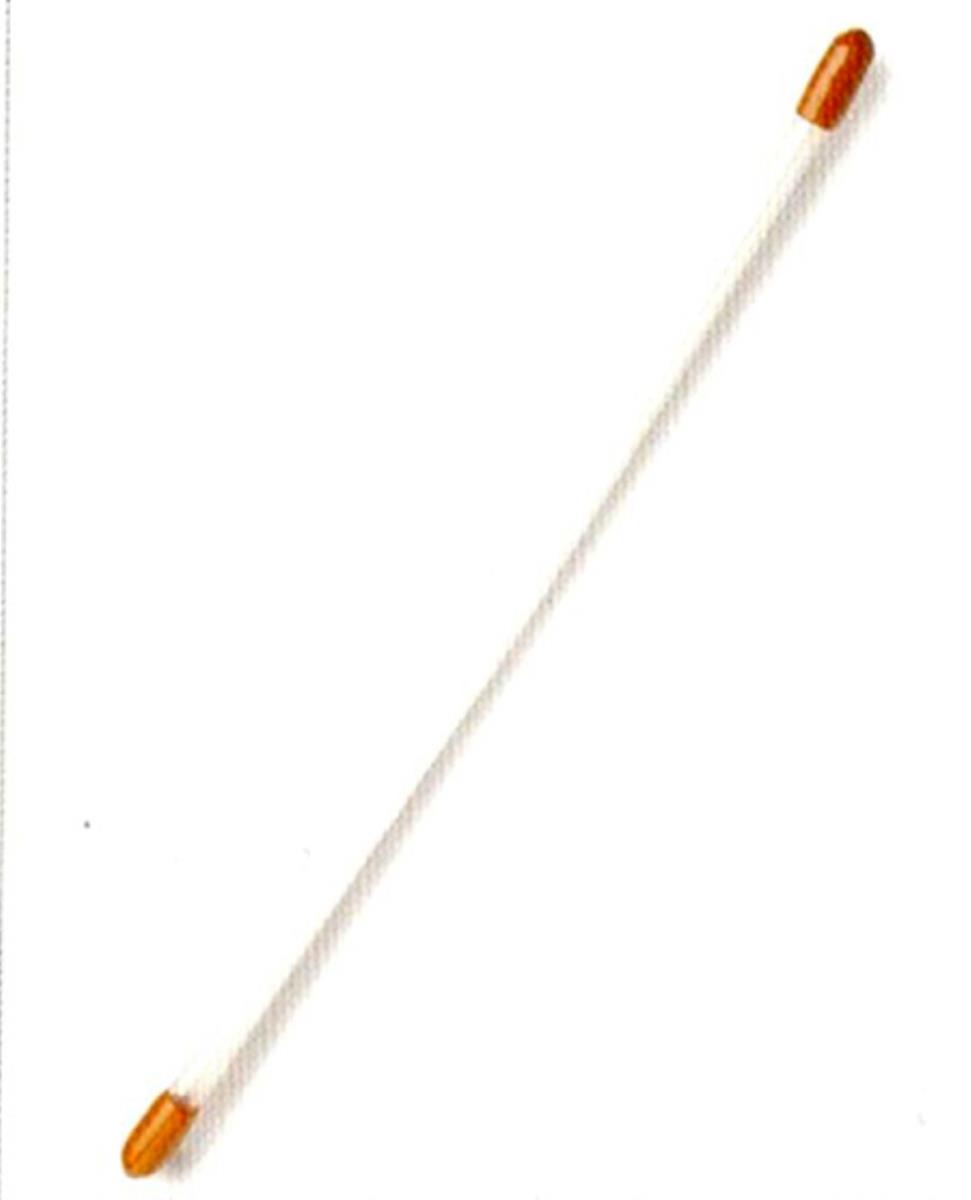

Transparent fluoropolymer hose: excellent resistance to chemicals, temperature, abrasion.
Great mechanical resistance, impermeable to gases, limited swelling for some solvents, impact resistant.
Great dimensional stability.
Non-toxic, exceptional resistance to the most aggressive chemical products, resistant to aging because it is inert to ultraviolet rays, unalterable when in contact with oxygen and ozone, great dimensional stability, excellent thermal stability. Ideal for use in level indicators.
Excellent dielectric properties.
Unaffected by contact with oxygen, ozone and ultra violet rays.
Fireproof to UL94 V0.
Operating temperature: -60° +260° C (500°F).
Melting point 327° C.
Hardness 60 shore D.
Great mechanical resistance, impermeable to gases, limited swelling for some solvents, impact resistant.
Great dimensional stability.
Non-toxic, exceptional resistance to the most aggressive chemical products, resistant to aging because it is inert to ultraviolet rays, unalterable when in contact with oxygen and ozone, great dimensional stability, excellent thermal stability. Ideal for use in level indicators.
Excellent dielectric properties.
Unaffected by contact with oxygen, ozone and ultra violet rays.
Fireproof to UL94 V0.
Operating temperature: -60° +260° C (500°F).
Melting point 327° C.
Hardness 60 shore D.
| Code | Dimension Ø mm | Operating pressure at 23° C bar | Burst pressure at 23° C bar | Weight gr/m | Curvature radius mm |
|---|---|---|---|---|---|
| 10PFA000002/04 | 2x4 | 28 | 140 | 21 | 20 |
| 10PFA000004/06 | 4x6 | 14 | 70 | 34 | 36 |
| 10PFA000006/08 | 6x8 | 9 | 46 | 47 | 64 |
| 10PFA000008/10 | 8x10 | 7 | 35 | 61 | 100 |
| 10PFA000010/12 | 10x12 | 5 | 30 | 80 | 150 |
