KYNAR PIPE - PVDF HD 4000
ONLINE CATALOGUE HOSES Chemical hoses
Download sheet in pdf format

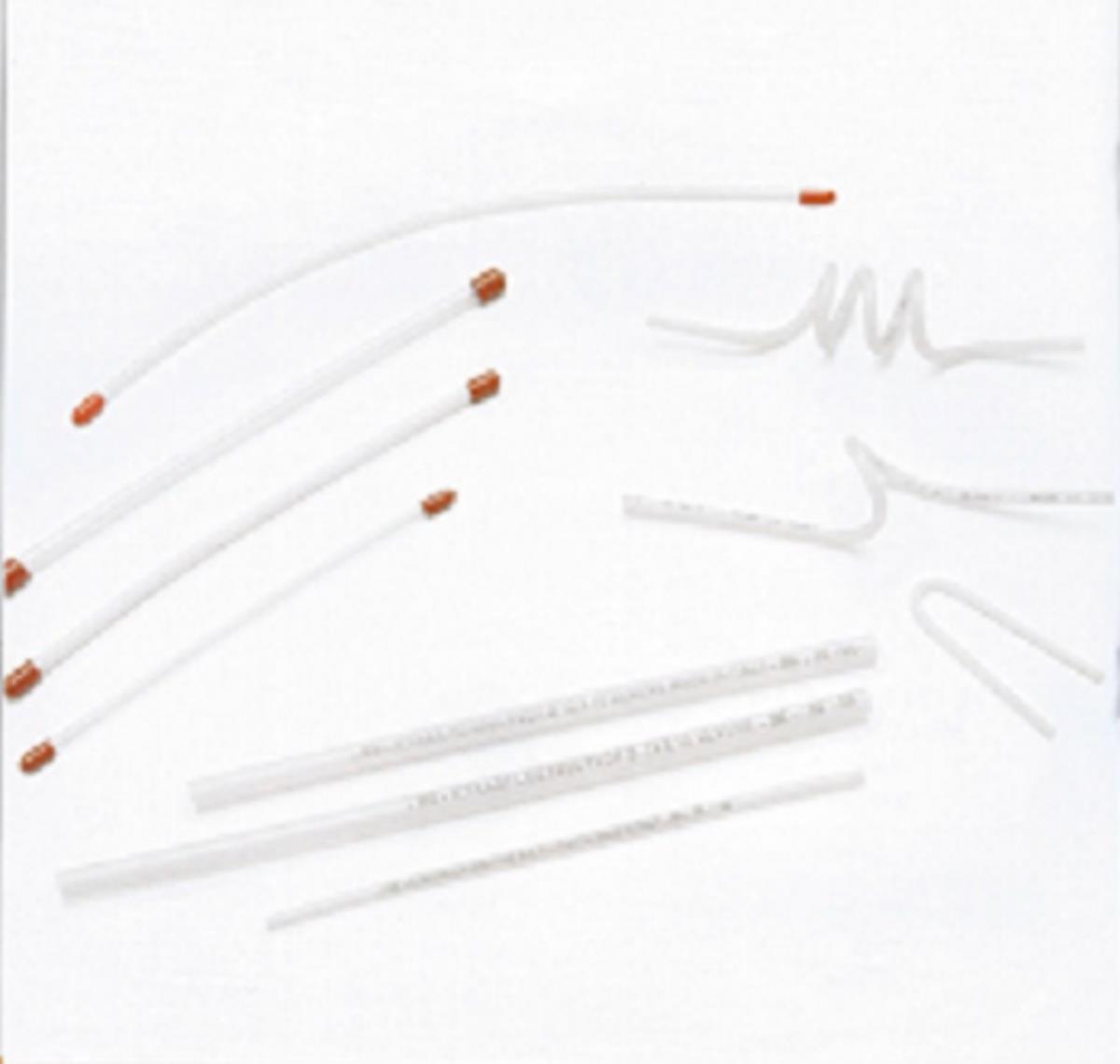

Tube in KYNARŪ HD 4000, rigid polyvinylidene fluoride (PDVF). Among PVDF products it is the most resistant to abrasion and temperature and boasts excellent mechanical resistance in use with many chemicals and solvents. It is a material intrinsically resistant to light, heat and aging as well as being intrinsically self-extinguishing UL94 V0.
Abrasion resistant and suitable for use in applications requiring chemical resistance with low permeability.
NEUTRAL COLOR - standard packs of 100 meters
USE TEMPERATURE : from -40°C to 100°C
Abrasion resistant and suitable for use in applications requiring chemical resistance with low permeability.
NEUTRAL COLOR - standard packs of 100 meters
USE TEMPERATURE : from -40°C to 100°C
| diameters mm | Weight gr/m | radius Of curvature mm | Pressure of explosion Cafe | Pressure of exercise Cafe | Packaging rolls m |
|---|---|---|---|---|---|
| 2 x 4 | 16.77 | 20 | 233 | 77 | 100 |
| 2.5x4 | 13.62 | 30 | 162 | 53 | 100 |
| 4x6 | 27.95 | 45 | 140 | 46 | 100 |
| 5x8 | 55.00 | 55 | 54 | 53 | 100 |
| 6x8 | 39.12 | 85 | 100 | 33 | 100 |
| 8x10 | 50.30 | 135 | 78 | 25 | 50 |
| 10x12 | 61.48 | 200 | 64 | 21 | 50 |
| 11x14 | 102.00 | 175 | 84 | 28 | 50 |
