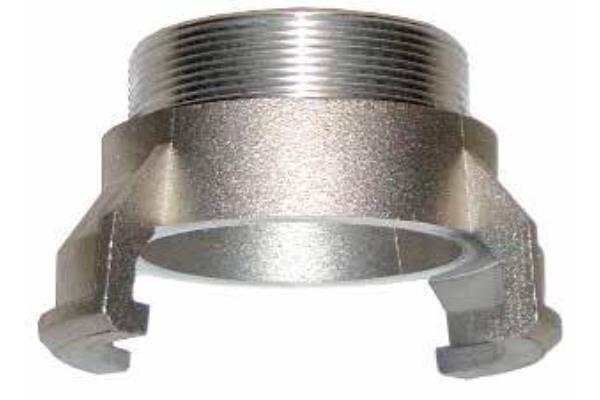

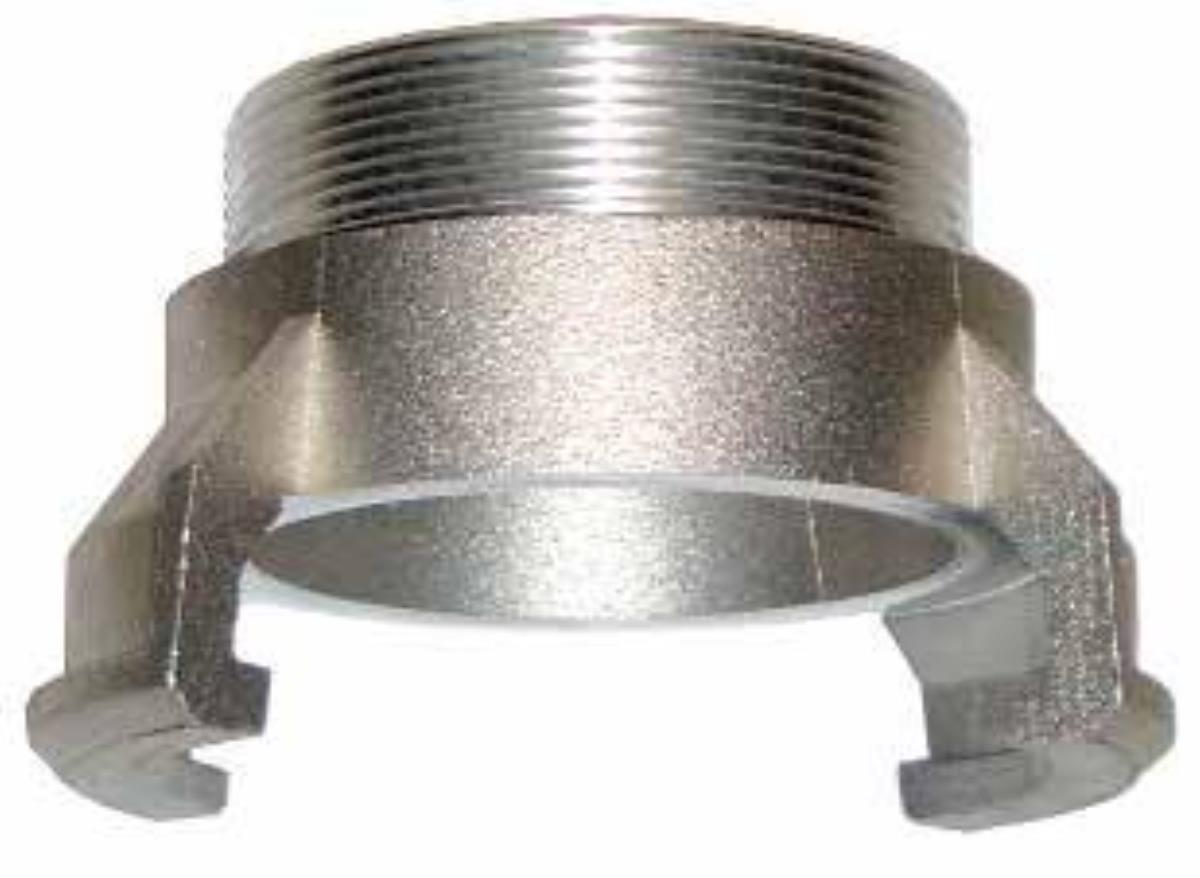

MALE GUILLEMIN FITTING WITHOUT CLOSURE
ONLINE CATALOGUE › FITTINGS FOR THE CHEMICAL AND FOOD INDUSTRY › GUILLEMIN SYMMETRIC FITTINGS
Download sheet in pdf format
GUILLEMIN QUICK FITTING WITHOUT TIGHTENING RING, BSP MALE THREAD
Available MATERIALS: ALUMINUM, AISI316 STEEL, BRASS
Available MATERIALS: ALUMINUM, AISI316 STEEL, BRASS
| DN | THREAD | PRESSURE BAR | ALUMINUM | STAINLESS STEEL AISI316 | BRASS |
| 20 | 3/4" | 16 | - | X | - |
| 25 | 1" | 16 | X | X | - |
| 32 | 1"1/4 | 16 | X | X | X |
| 40 | 1"1/2 | 16 | X | X | X |
| 50 | 2" | 16 | X | X | X |
| 65 | 2"1/2 | 16 | X | X | - |
| 80 | 3" | 16 | X | X | X |
| 100 | 4" | 16 | X | X | X |
| 150 | 6" | 16 | - | - | - |
