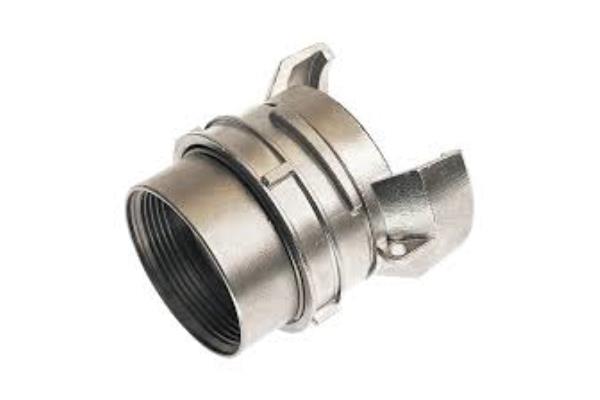

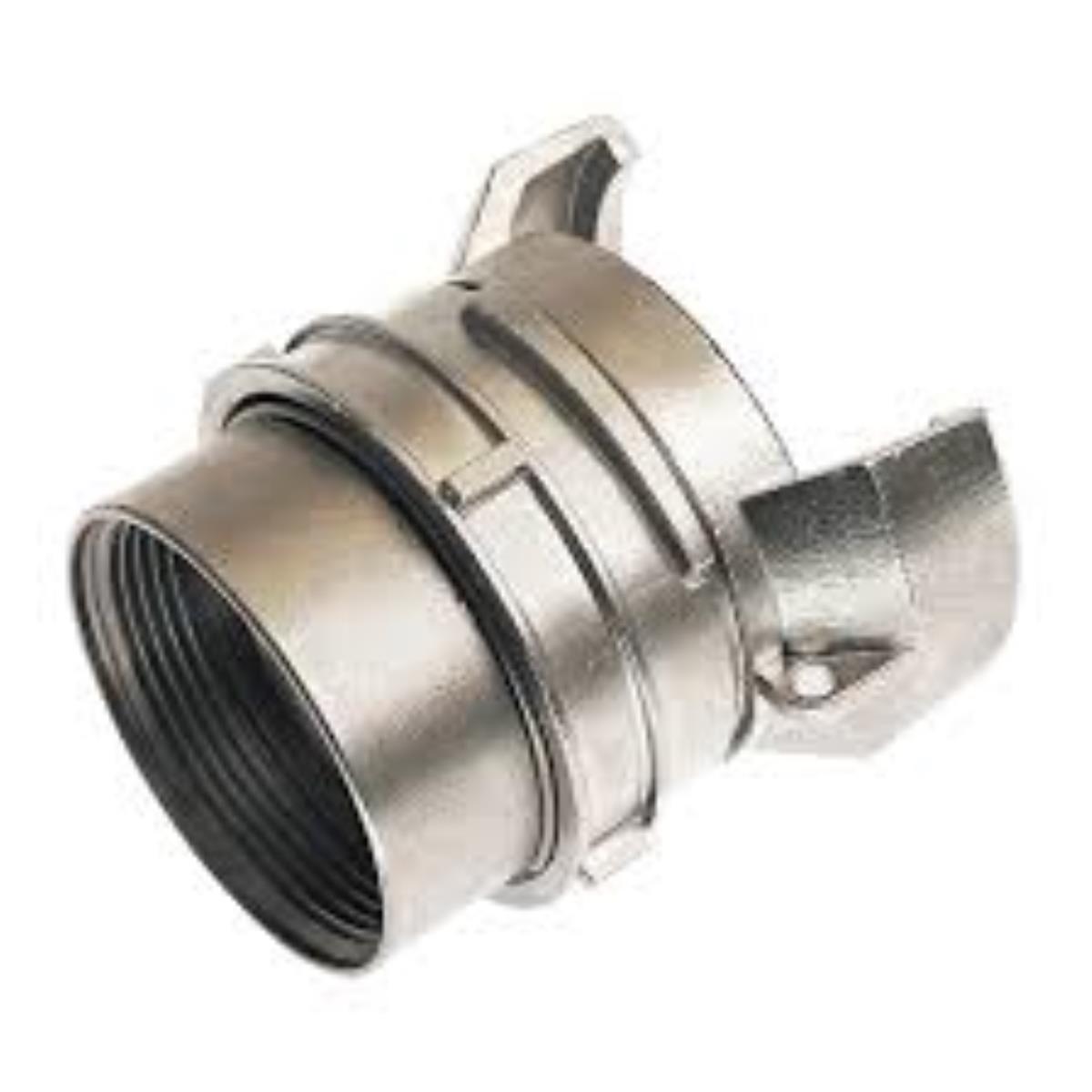

GUILLEMIN FEMALE FITTING WITH CLOSURE
ONLINE CATALOGUE › FITTINGS FOR THE CHEMICAL AND FOOD INDUSTRY › GUILLEMIN SYMMETRIC FITTINGS
Download sheet in pdf format
GUILLEMIN QUICK FITTING WITH BSP FEMALE THREAD TIGHTENING RING
Available MATERIALS: ALUMINUM, AISI316 STEEL, BRASS AND POLYPROPYLENE
Available MATERIALS: ALUMINUM, AISI316 STEEL, BRASS AND POLYPROPYLENE
| DN | FILLET STEAK | PRESSURE BAR | ALUMINUM | STAINLESS STEEL AISI316 | BRASS | PP |
| 20 | 3/4" | 16 | - | X | - | - |
| 25 | 1" | 16 | - | X | - | - |
| 32 | 1"1/4 | 16 | - | X | - | - |
| 40 | 1"1/2 | 16 | X | X | X | X |
| 40 | 2" | 16 | X | - | - | - |
| 50 | 1"1/2 | 16 | - | X | ||
| 50 | 2" | 16 | - | X | X | X |
| 65 | 2" | 16 | - | X | - | - |
| 65 | 2"1/2 | 16 | X | X | X | - |
| 80 | 2"1/2 | 16 | - | X | - | - |
| 80 | 3" | 16 | - | X | X | X |
| 100 | 3" | 16 | - | X | - | - |
| 100 | 4" | 16 | - | X | X | X |
| 125 | 5" | 16 | - | X | - | - |
| 150 | 6" | 16 | - | X | - | - |
