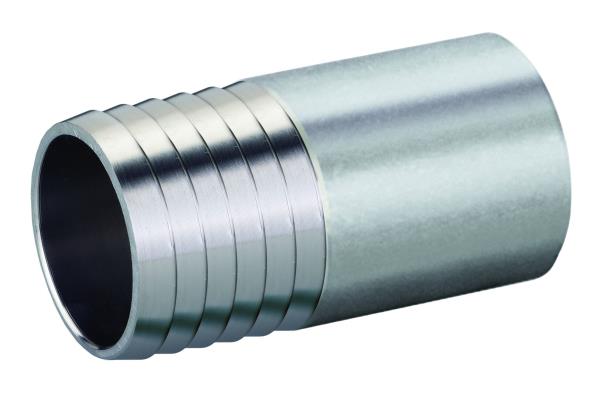

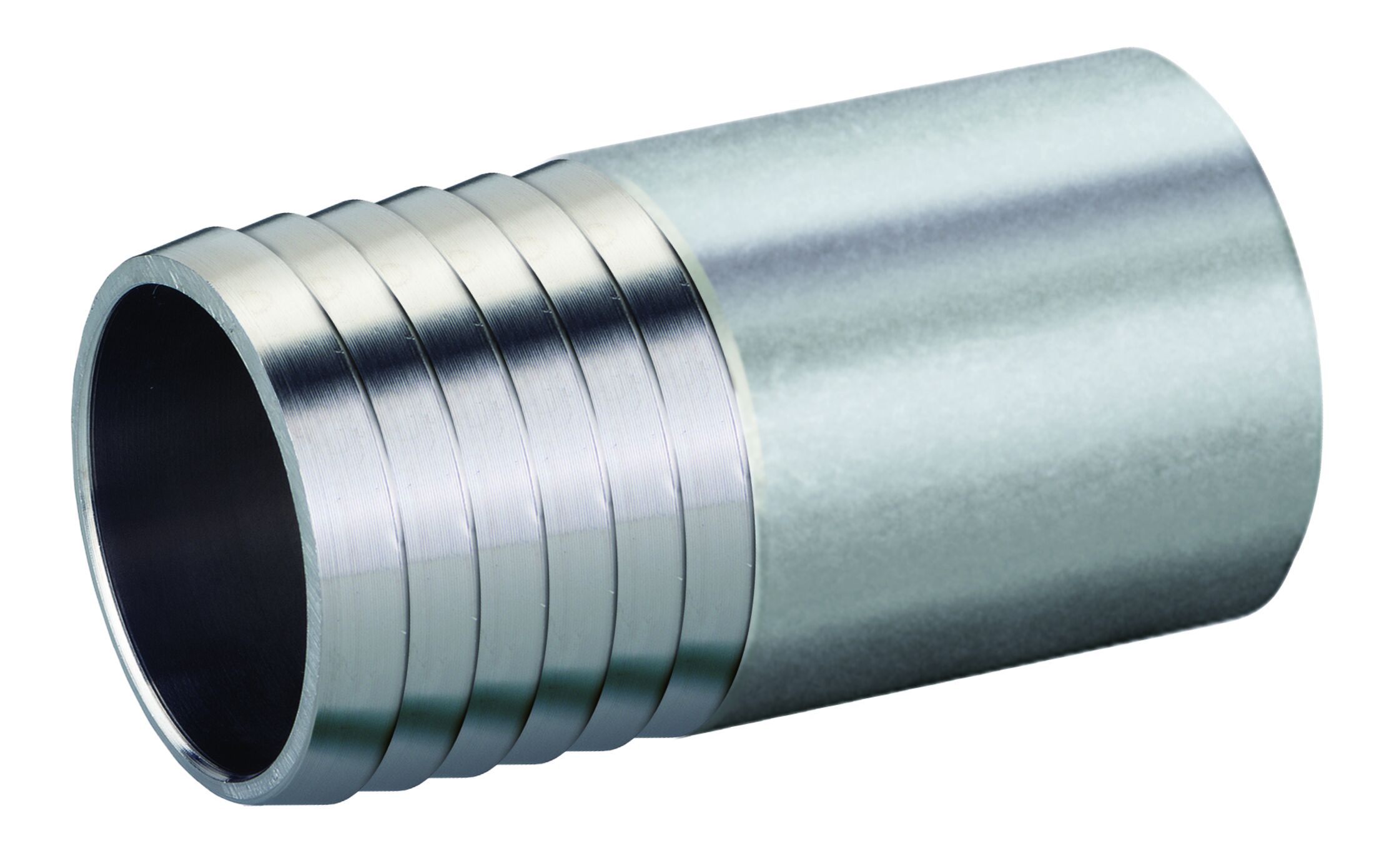

WELDING HOSE HOLDER
ONLINE CATALOGUE › FITTINGS FOR THE CHEMICAL AND FOOD INDUSTRY › STANDARD STAINLESS STEEL FITTINGS
Download sheet in pdf format
Code: 4028
EN10241 WELDABLE HOSE CONNECTOR
MATERIAL: 1.4404/316L
PACKAGING BAG: 10 PIECES
EN10241 WELDABLE HOSE CONNECTOR
MATERIAL: 1.4404/316L
PACKAGING BAG: 10 PIECES
| MEASURE | DIAMETER EXTERNAL SHANK | DIAMETER RUBBER HOLDER | LENGTH TOTAL | LENGTH RUBBER HOLDER | WEIGHT | CONF. |
| inch | mm | mm | mm | mm | gr | n° |
| 1/4" | 13.5 | 13.0 | 70 | 31 | 37.4 | 10 |
| 3/8" | 17.2 | 17.0 | 70 | 31 | 51.0 | 10 |
| 1/2" | 21.3 | 21.0 | 70 | 31 | 69.7 | 10 |
| 3/4" | 26.9 | 26.0 | 70 | 31 | 90.5 | 10 |
| 1" | 33.7 | 33.0 | 70 | 31 | 136.7 | 10 |
| 1"1/4 | 42.4 | 42.0 | 70 | 31 | 177.8 | 5 |
| 1"1/2 | 48.3 | 48.0 | 100 | 31 | 286.2 | 5 |
| 2" | 60.3 | 60.0 | 100 | 31 | 418.6 | 5 |
