WELDING HOSE FITTING
ONLINE CATALOGUE › FITTINGS FOR THE CHEMICAL AND FOOD INDUSTRY › STANDARD STAINLESS STEEL FITTINGS
Download sheet in pdf format
Code: 4029

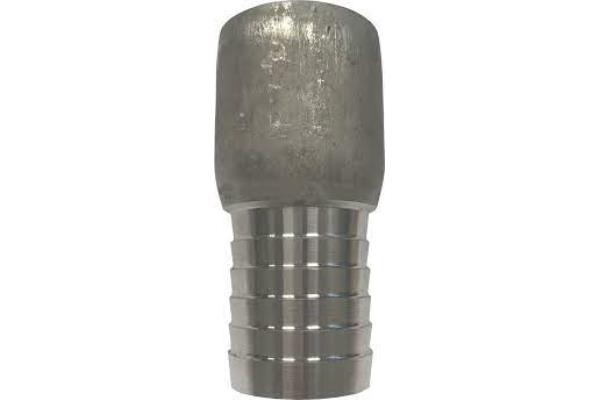

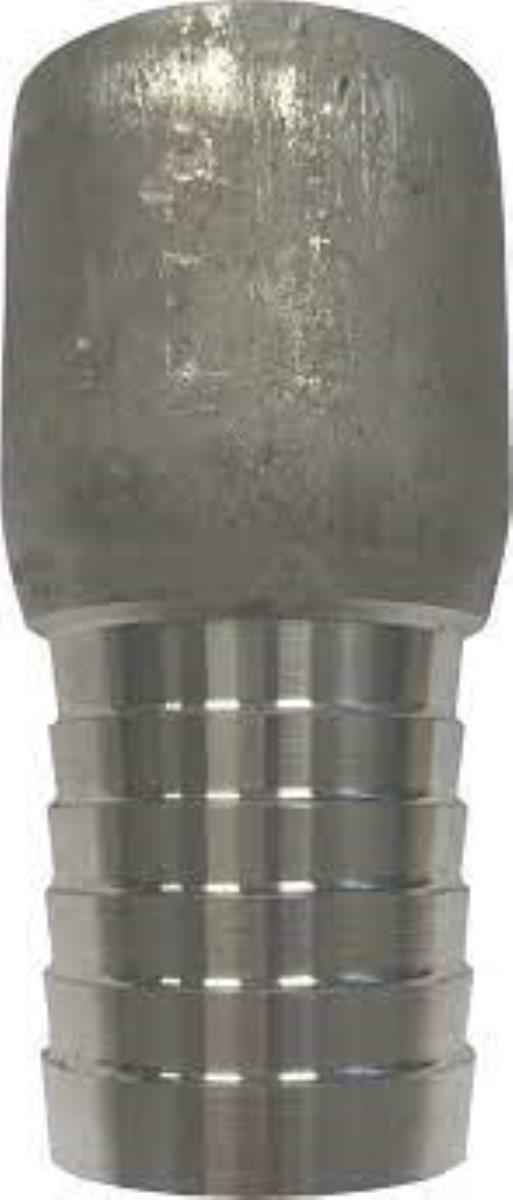

KC WELDING HOSE FITTING IN AISI 304 STAINLESS STEEL
ON REQUEST AVAILABLE IN GALVANIZED STEEL.
MAXIMUM WORKING PRESSURE 10 BAR
KC WELDING HOSE FITTING IN AISI 304 STAINLESS STEEL
ON REQUEST AVAILABLE IN GALVANIZED STEEL.
MAXIMUM WORKING PRESSURE 10 BAR
| Hose holder in fishtail | Head to Weld |
| Ø mm | Øi x Øe |
| 13.8 | 16.8x21.8 |
| 20 | 22.1x27.3 |
| 26 | 28.6x34.2 |
| 32.3 | 36.5x42.9 |
| 38.7 | 42.4x48.8 |
| 51.7 | 54.4x60.8 |
| 64.8 | 68.5x76.6 |
| 77.6 | 81.5x89.5 |
| 102.9 | 107.0x115.0 |
