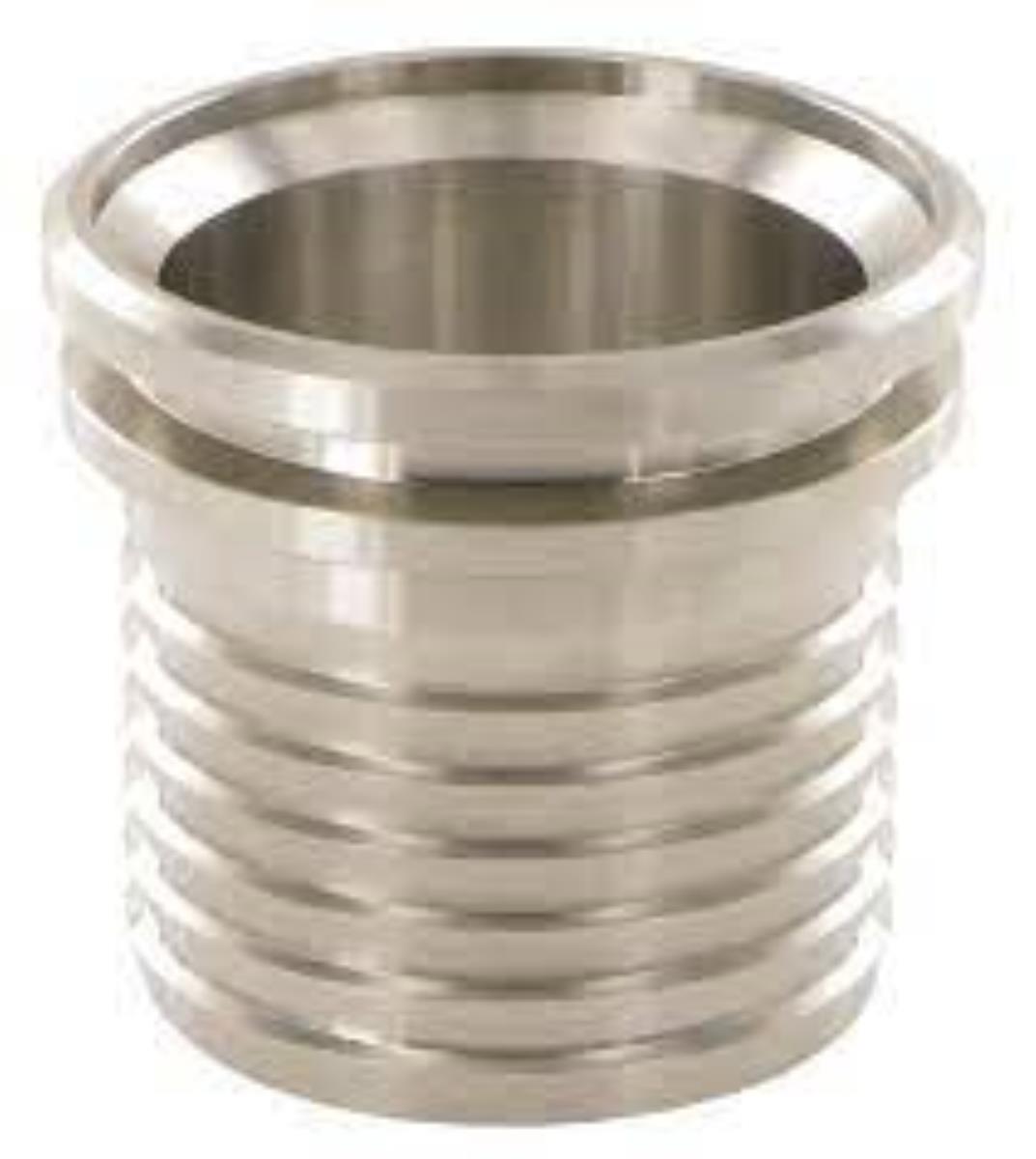

WELD-ON STAINLESS STEEL HOSE HOLDER FOR SPANNLOC
ONLINE CATALOGUE › FITTINGS FOR THE CHEMICAL AND FOOD INDUSTRY › STANDARD STAINLESS STEEL FITTINGS
Download sheet in pdf format
Code: 4025
WELD-ON HOSE HOLDER IN AISI 316 STAINLESS STEEL WITH SAFETY RING UNDER THE HEAD FOR FIXING THE SPANNLOC SYSTEM OR PRESSED RINGS.
ON REQUEST AVAILABLE IN GALVANIZED STEEL.
MAXIMUM WORKING PRESSURE 16 BAR
WELD-ON HOSE HOLDER IN AISI 316 STAINLESS STEEL WITH SAFETY RING UNDER THE HEAD FOR FIXING THE SPANNLOC SYSTEM OR PRESSED RINGS.
ON REQUEST AVAILABLE IN GALVANIZED STEEL.
MAXIMUM WORKING PRESSURE 16 BAR
DN | Shank diameter internal x external | Pressure maximum Cafe |
| 25 | 28.5 x 33.7 | 16 |
| 32 | 37.2 x 42.4 | 16 |
| 38 | 43.1 x 48.3 | 16 |
| 50 | 54.5 x 60.3 | 16 |
| 63 | 70.3 x 76.1 | 16 |
| 75 | 82.5 x 88.9 | 16 |
| 100 | 107.1 x 114.3 | 16 |
| 150 | 159.3 x 168.3 | 10 |
| 200 | 208.9 x 219.1 | 6 |
