AISI304 WELD-ON HOSE PORT
ONLINE CATALOGUE › FITTINGS FOR THE CHEMICAL AND FOOD INDUSTRY › STANDARD STAINLESS STEEL FITTINGS
Download sheet in pdf format
Code: 4026

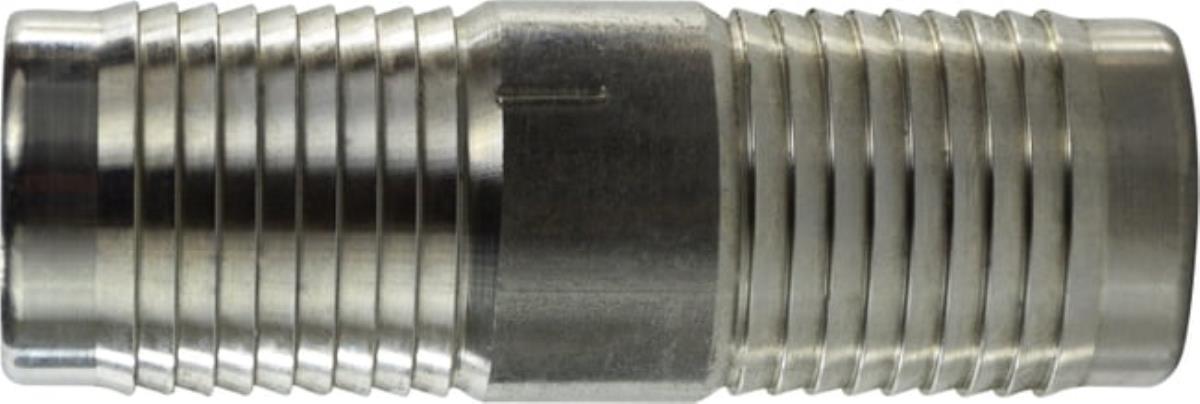

DOUBLE HOSE HOLDER AISI304
ON REQUEST AVAILABLE IN GALVANIZED STEEL.
MAXIMUM WORKING PRESSURE 10 BAR
DOUBLE HOSE HOLDER AISI304
ON REQUEST AVAILABLE IN GALVANIZED STEEL.
MAXIMUM WORKING PRESSURE 10 BAR
| CODE | DN | RESCUE DIAMETER |
| mm | mm | |
| 374026_304_13 | 13 | 13.8 |
| 374026_304_20 | 20 | 20 |
| 374026_304_25 | 25 | 26 |
| 374026_304_30 | 30 | 32.3 |
| 374026_304_40_80 | 40 | 38.7 |
| 374026_304_50 | 50 | 51.7 |
| 374026_304_65 | 65 | 64.8 |
| 374026_304_80 | 80 | 77.6 |
| 374026_304_100 | 101.6 | 102.90 |
