AISI 304 MALE HOSE PORT
ONLINE CATALOGUE › FITTINGS FOR THE CHEMICAL AND FOOD INDUSTRY › STANDARD STAINLESS STEEL FITTINGS
Download sheet in pdf format
Code: 4030

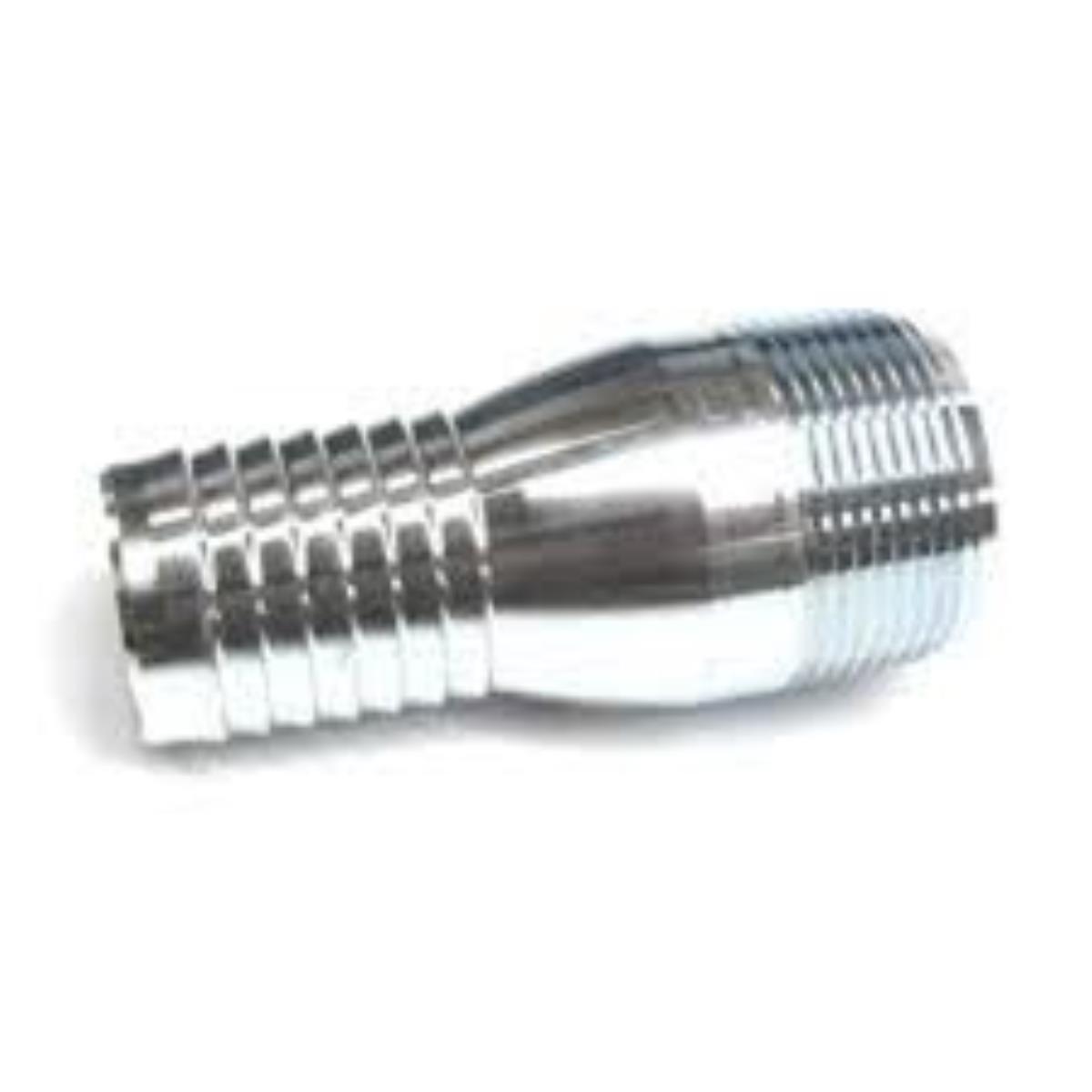

MALE THREADED HOSE FITTING WITH FLAT SEAT WITHOUT GASKET IN AISI 304 STEEL.
ON REQUEST AVAILABLE IN GALVANIZED STEEL.
MAXIMUM WORKING PRESSURE 10 BAR
MALE THREADED HOSE FITTING WITH FLAT SEAT WITHOUT GASKET IN AISI 304 STEEL.
ON REQUEST AVAILABLE IN GALVANIZED STEEL.
MAXIMUM WORKING PRESSURE 10 BAR
| CODE | Hose holder in fishtail | fillet steak |
| Ø mm | inch | |
| 374030304013.8 | 13.8 | 1/2" |
| 374030304020 | 20 | 3/4" |
| 374030304026 | 26 | 1" |
| 374030304032,3 | 32.3 | 1"1/4 |
| 374030304038,7 | 38.7 | 1"1/2 |
| 374030304051.7 | 51.7 | 2" |
| 374030304064.8 | 64.8 | 2"1/2 |
| 374030304077,6 | 77.6 | 3" |
| 374030304102.9 | 102.9 | 4" |
