EN 14420-2 STAINLESS STEEL MALE HOSE FITTING
ONLINE CATALOGUE › FITTINGS FOR THE CHEMICAL AND FOOD INDUSTRY › STAINLESS STEEL FITTINGS EN 14420-2
Download sheet in pdf format
Code: 4019

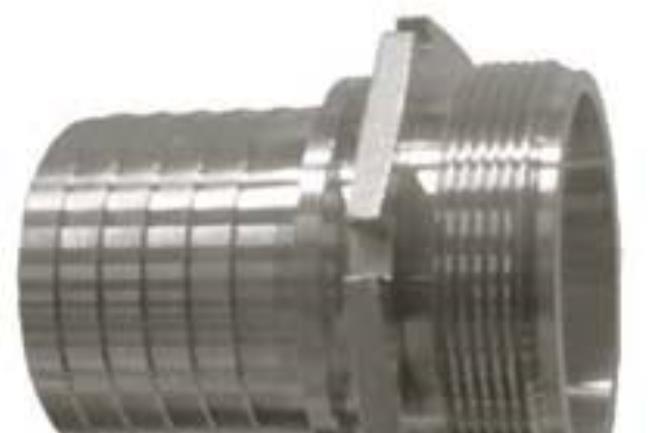

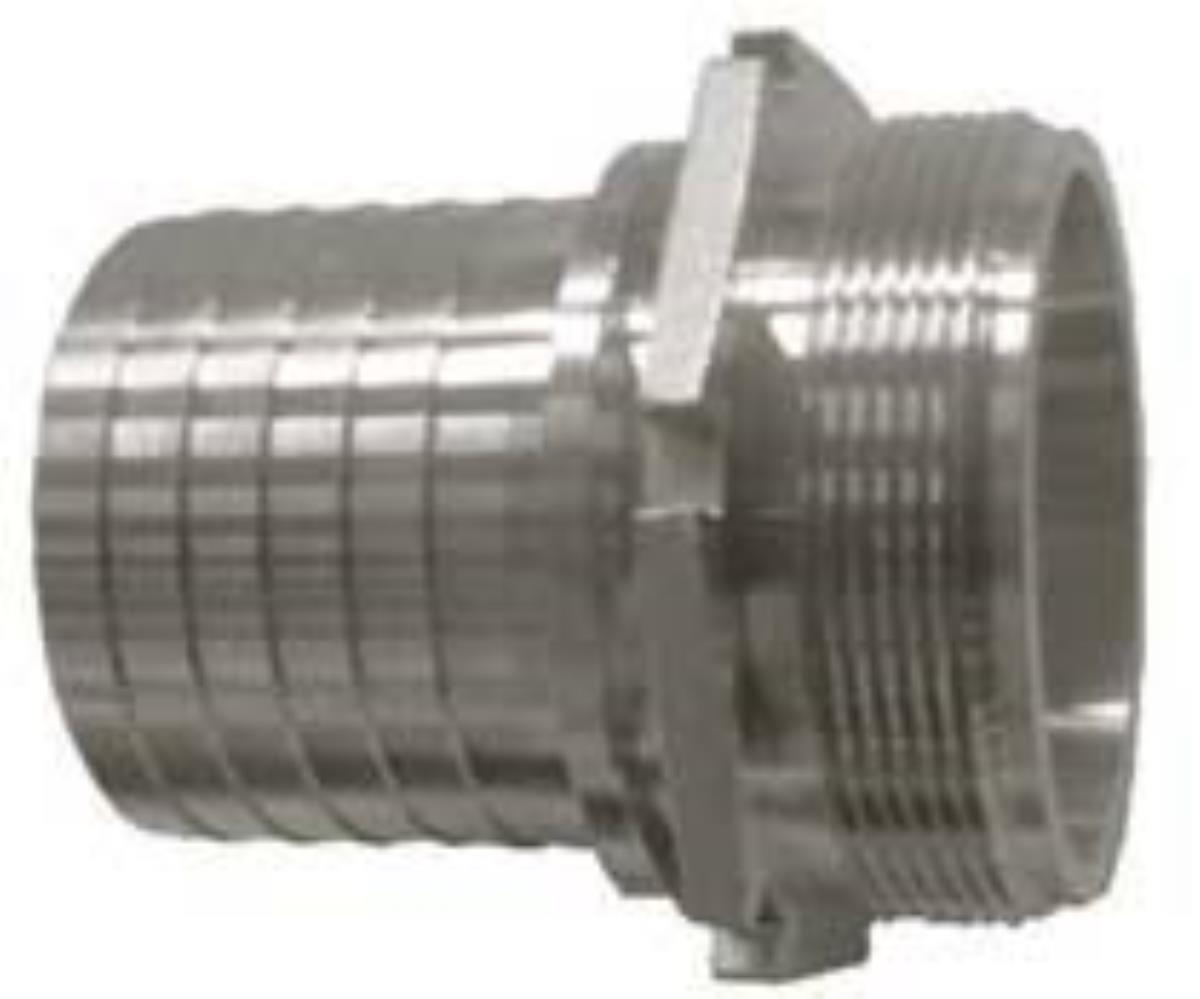

AISI316 STAINLESS STEEL CONNECTOR ACCORDING TO STANDARD 14420-2
HOSE HOLDER WITH RESCA - MALE THREADED BSPP-CYLINDRICAL FLAT SEAT

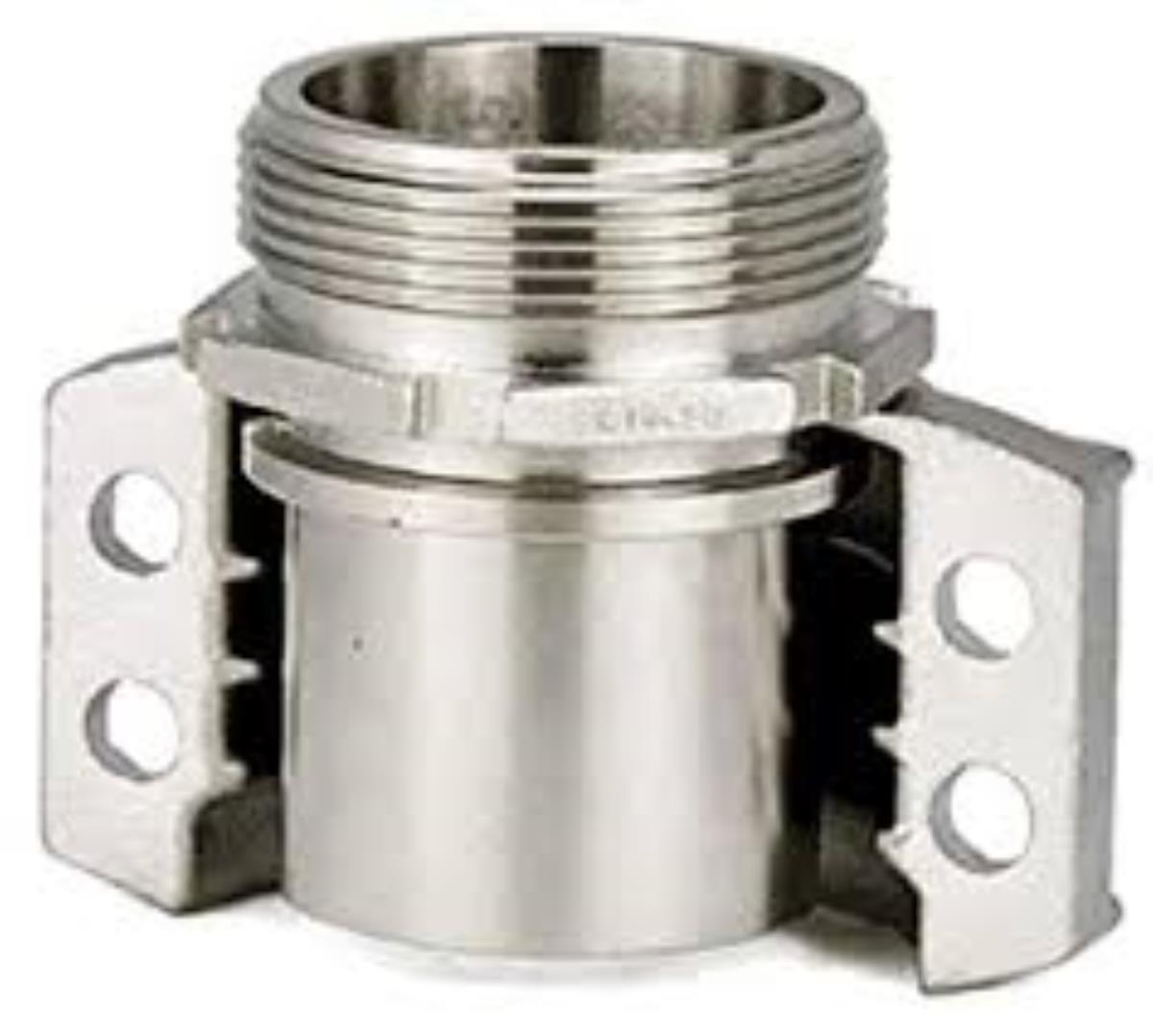

IDEAL FOR COUPLING WITH COLLARS FOR TIGHTENING WITH SPANNLOK HALF-SHELLS OR WITH PRESS RINGS FOR THEIR ANCHORING RING.

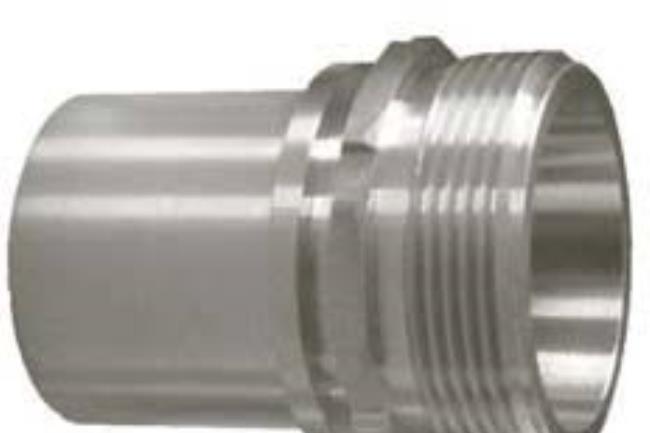

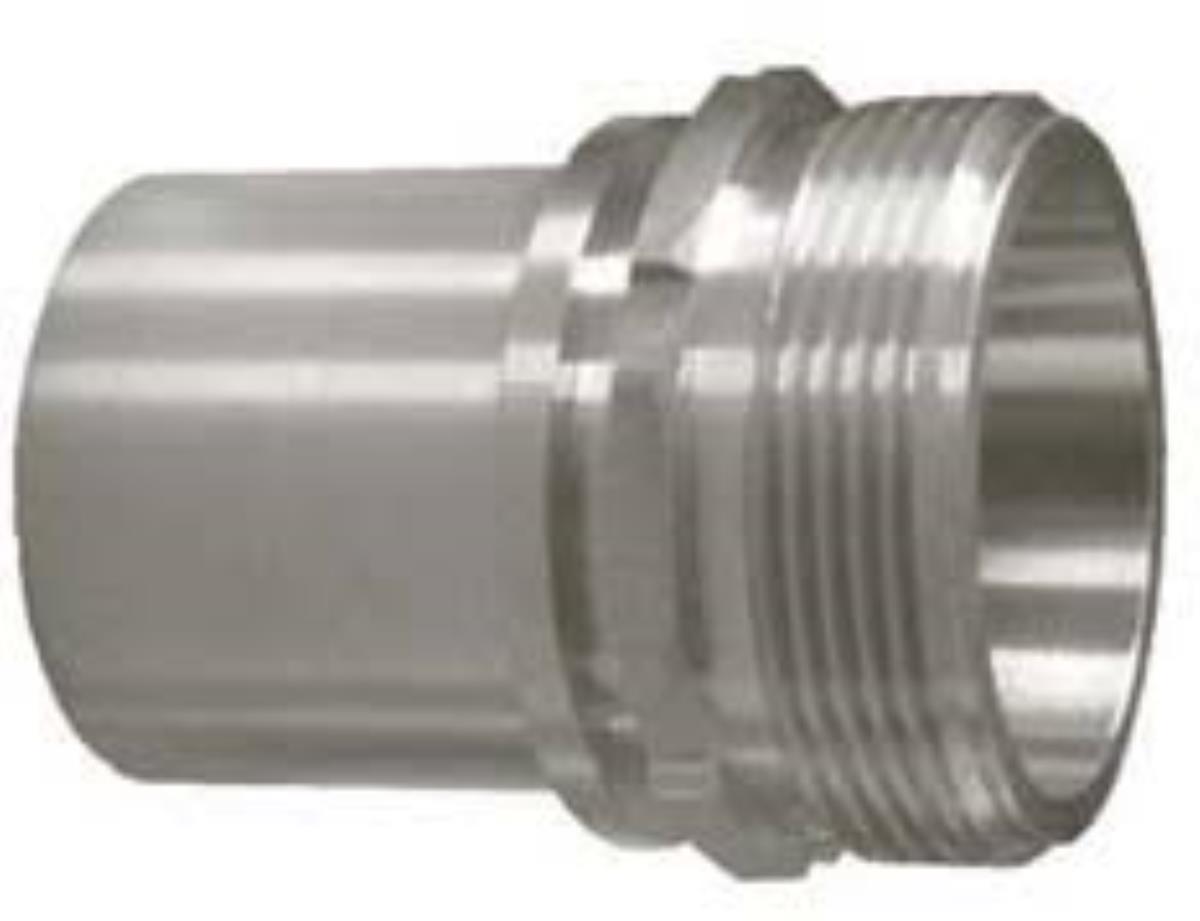

ON REQUEST VERSION WITH SMOOTH RUBBER HOLDER FOR PIPES WITH HD POLYETHYLENE OR PTFE SUBLAYER
ALSO AVAILABLE WITH NPT THREAD ON REQUEST
MAXIMUM WORKING PRESSURE 25 BAR
AISI316 STAINLESS STEEL CONNECTOR ACCORDING TO STANDARD 14420-2
HOSE HOLDER WITH RESCA - MALE THREADED BSPP-CYLINDRICAL FLAT SEAT
IDEAL FOR COUPLING WITH COLLARS FOR TIGHTENING WITH SPANNLOK HALF-SHELLS OR WITH PRESS RINGS FOR THEIR ANCHORING RING.
ON REQUEST VERSION WITH SMOOTH RUBBER HOLDER FOR PIPES WITH HD POLYETHYLENE OR PTFE SUBLAYER
ALSO AVAILABLE WITH NPT THREAD ON REQUEST
MAXIMUM WORKING PRESSURE 25 BAR
| CODE | RUBBER HOLDER | THREAD BSP | THREAD NPT |
| 37401931613SPA | DN 13 | 1/2" | 1/2" |
| 37401931619SPA | DN 19 | 3/4" | 3/4" |
| 37401931625SPA | DN 25 | 1" | 1" |
| 37401931632SPA | DN 32 | 1"1/4 | 1"1/4 |
| 37401931638SPA | DN 38 | 1"1/2 | 1"1/2 |
| 374019316502SPA | DN 50 | 2" | 2" |
| 374019316503SPA | DN 50 | 3" | - |
| 374019316632SPA | DN 63 | 2"1/2 | - |
| 374019316633SPA | DN 63 | 3" | - |
| 374019316753SPA | DN 75 | 3" | 3" |
| 374019316754SPA | DN 75 | 4" | - |
| 374019316100SPA | DN 100 | 4" | - |
