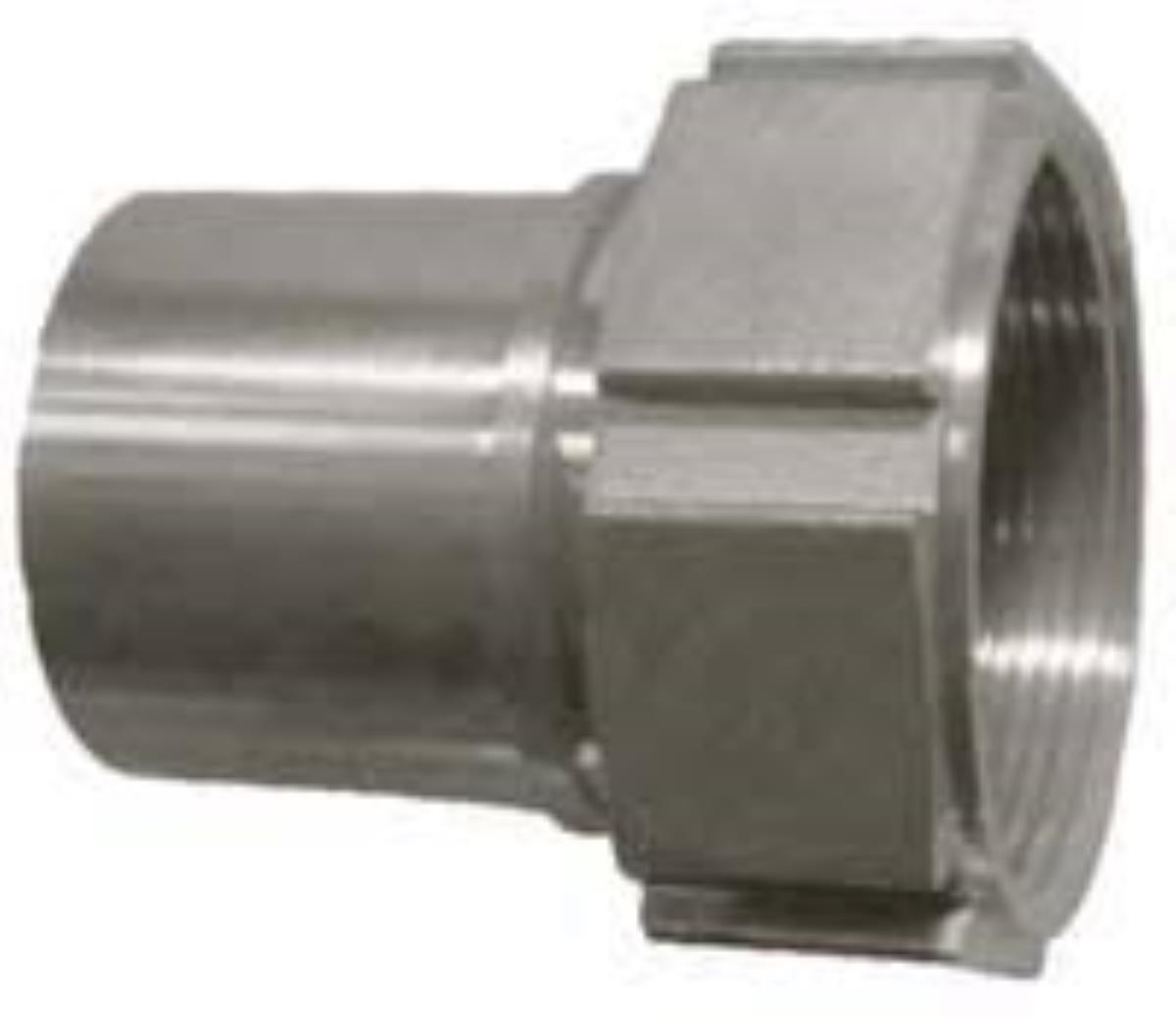

EN 14420-2 STAINLESS STEEL HOSE FEMALE FITTING
ONLINE CATALOGUE › FITTINGS FOR THE CHEMICAL AND FOOD INDUSTRY › STAINLESS STEEL FITTINGS EN 14420-2
Download sheet in pdf format
Code: 4021

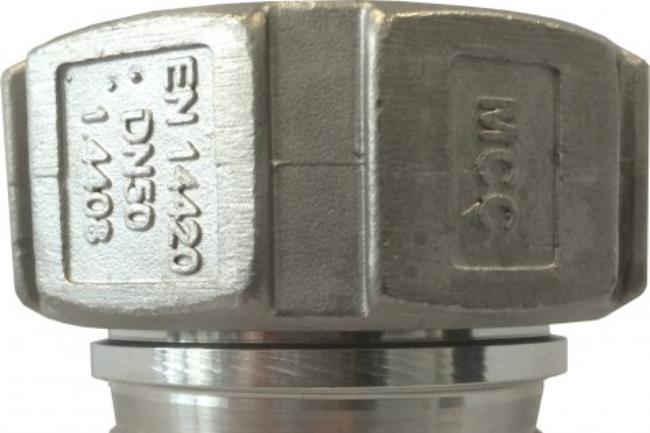

AISI316 STAINLESS STEEL FITTING ACCORDING TO EN 14420-2 STANDARD
HOSE BARREL - SAFETY COLLAR AND SWIVEL FEMALE THREADED NUT BSPP-CYLINDRICAL FLAT SEAT

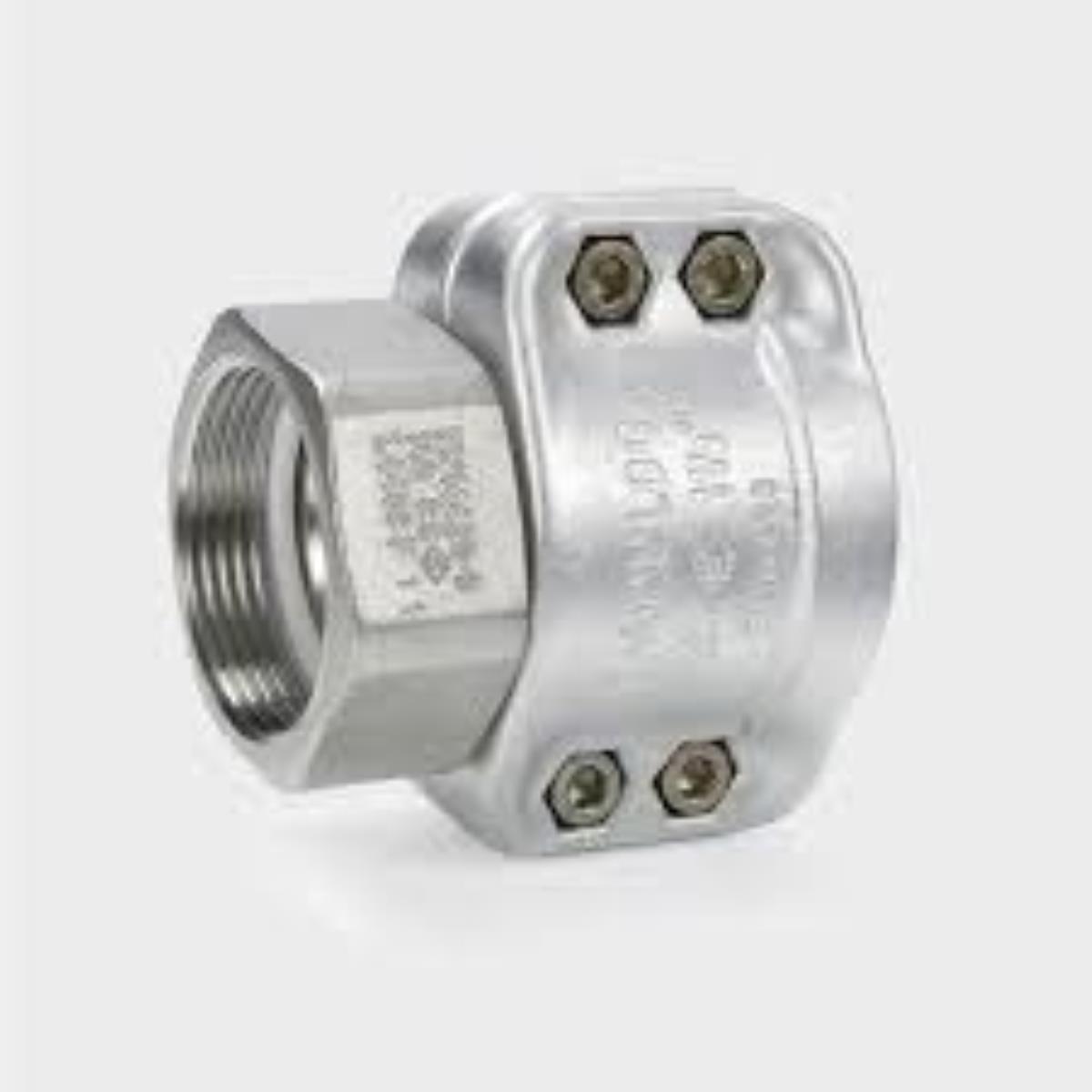

IDEAL FOR COUPLING WITH COLLARS FOR TIGHTENING WITH SPANNLOC HALF-SHELLS OR WITH PRESS RINGS FOR THEIR ANCHOR RING
PTFE FLAT GASKET INCLUDED
ON REQUEST VERSION WITH SMOOTH HOSE PORT FOR HOSES WITH HD POLYETHYLENE OR PTFE UNDERLAYER
CODE 4021/L
MAXIMUM WORKING PRESSURE 25 BAR
AISI316 STAINLESS STEEL FITTING ACCORDING TO EN 14420-2 STANDARD
HOSE BARREL - SAFETY COLLAR AND SWIVEL FEMALE THREADED NUT BSPP-CYLINDRICAL FLAT SEAT
IDEAL FOR COUPLING WITH COLLARS FOR TIGHTENING WITH SPANNLOC HALF-SHELLS OR WITH PRESS RINGS FOR THEIR ANCHOR RING
PTFE FLAT GASKET INCLUDED
ON REQUEST VERSION WITH SMOOTH HOSE PORT FOR HOSES WITH HD POLYETHYLENE OR PTFE UNDERLAYER
CODE 4021/L
MAXIMUM WORKING PRESSURE 25 BAR
| code | HOSE HOLDER | THREAD |
| 374021F013-1/2 | DN 13 | 1/2" |
| 374021F019-3/4 | DN 19 | 3/4" |
| 374021F025-1 | DN 25 | 1" |
| 374021F032-1_1/4 | DN 32 | 1"1/4 |
| 374021F038-1_1/2 | DN 38 | 1"1/2 |
| 374021F050-2 | DN 50 | 2" |
| 374021F063-2_1/2 | DN 63 | 2"1/2 |
| 374021F075-3 | DN 75 | 3" |
| 374021F100-4 | DN 100 | 4" |
