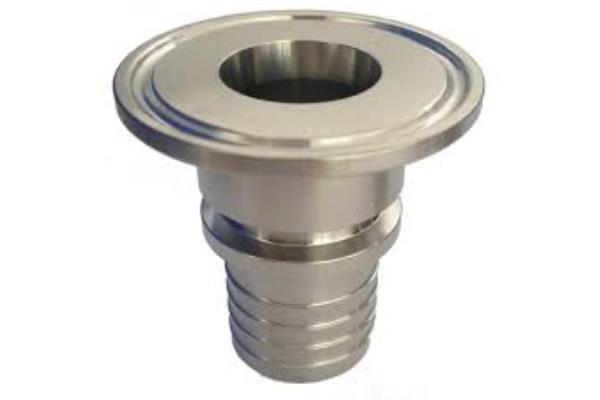

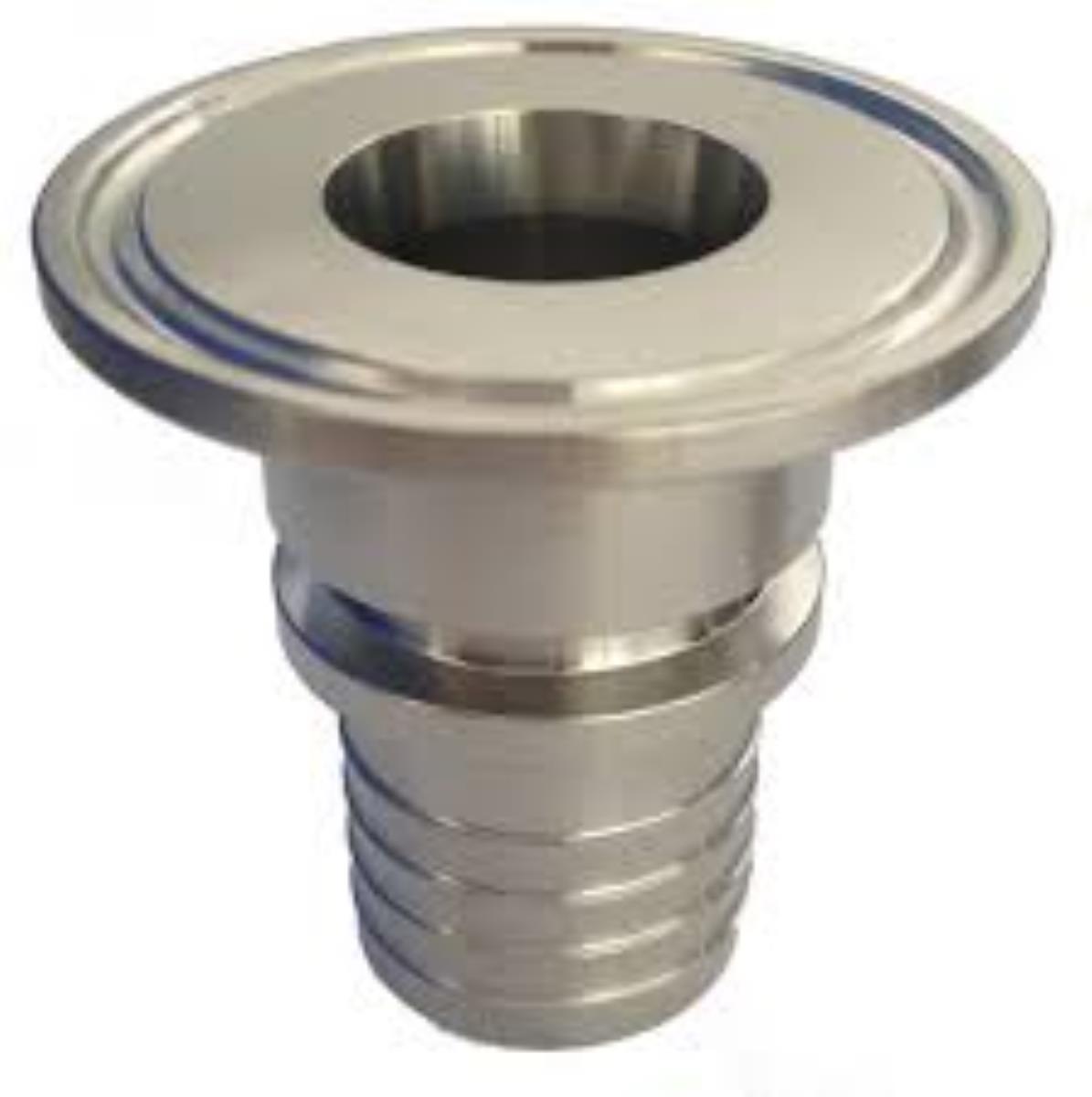

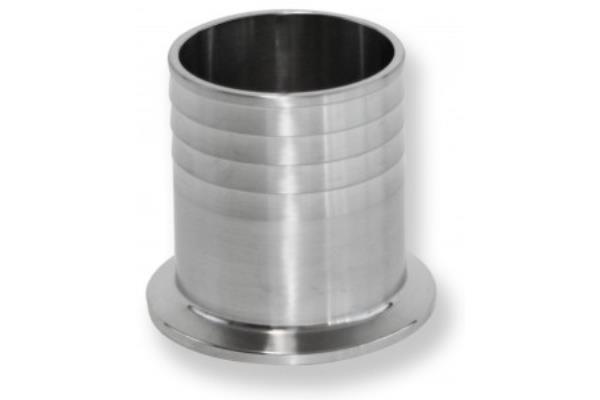

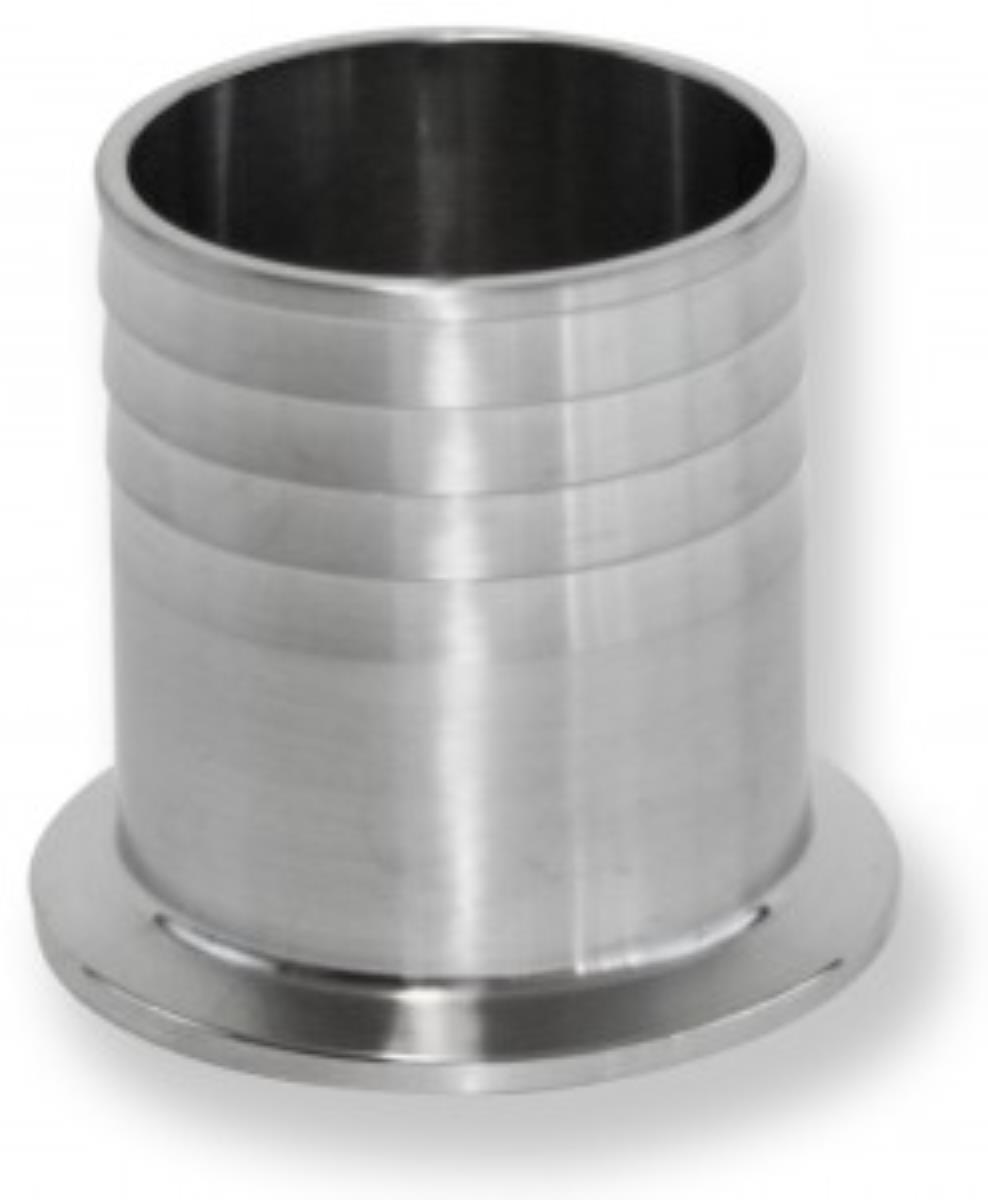

STAINLESS STEEL CLAMP CONNECTOR WITH HOSE HOLDER
ONLINE CATALOGUE › FITTINGS FOR THE CHEMICAL AND FOOD INDUSTRY › STAINLESS STEEL CLAMP FITTINGS › STAINLESS STEEL CLAMP FITTINGS BS 4825
Download sheet in pdf format
CLAMP DN 32676 AISI316 stainless steel hose connector with safety ring under the head for pressed rings
Maximum operating pressure 16 bar
Maximum operating pressure 16 bar
| CODE | DISC | RUBBER HOLDER |
| 3740CL21812 | 25.1 | 1/2" |
| 3740CL21820 | 25.1 | 3/4" |
| 3740CL21825 | 50.4 | 1" |
| 3740CL21838 | 50.4 | 1"1/2 |
| 3740CL21850 | 64.0 | 2" |
| 3740CL21850_77 | 77.4 | 2" |
| 3740CL21863.5 | 77.4 | 2"1/2 |
| 3740CL21875_77 | 77.4 | 3" |
| 3740CL21875 | 90.9 | 3" |
| 3740CL218100_77 | 77.4 | 4" |
| 3740CL218100 | 118.8 | 4" |
| 3740CL218125 | 155.0 | 5" |
| 3740CL218150 | 167.0 | 6" |
| 3740CL218200 | 217.4 | 8" |
| 3740CL218250 | 268.5 | 10" |
| 3740CL218300 | 319.3 | 12" |
