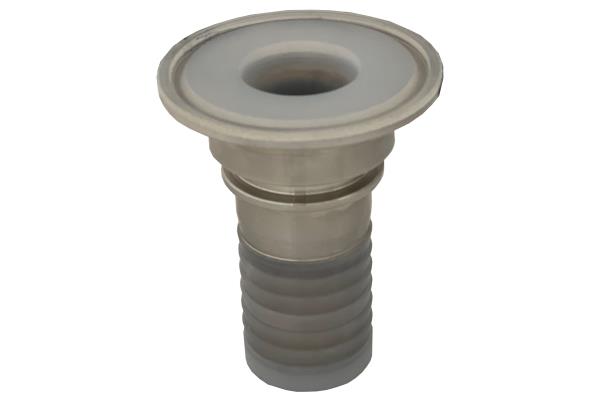

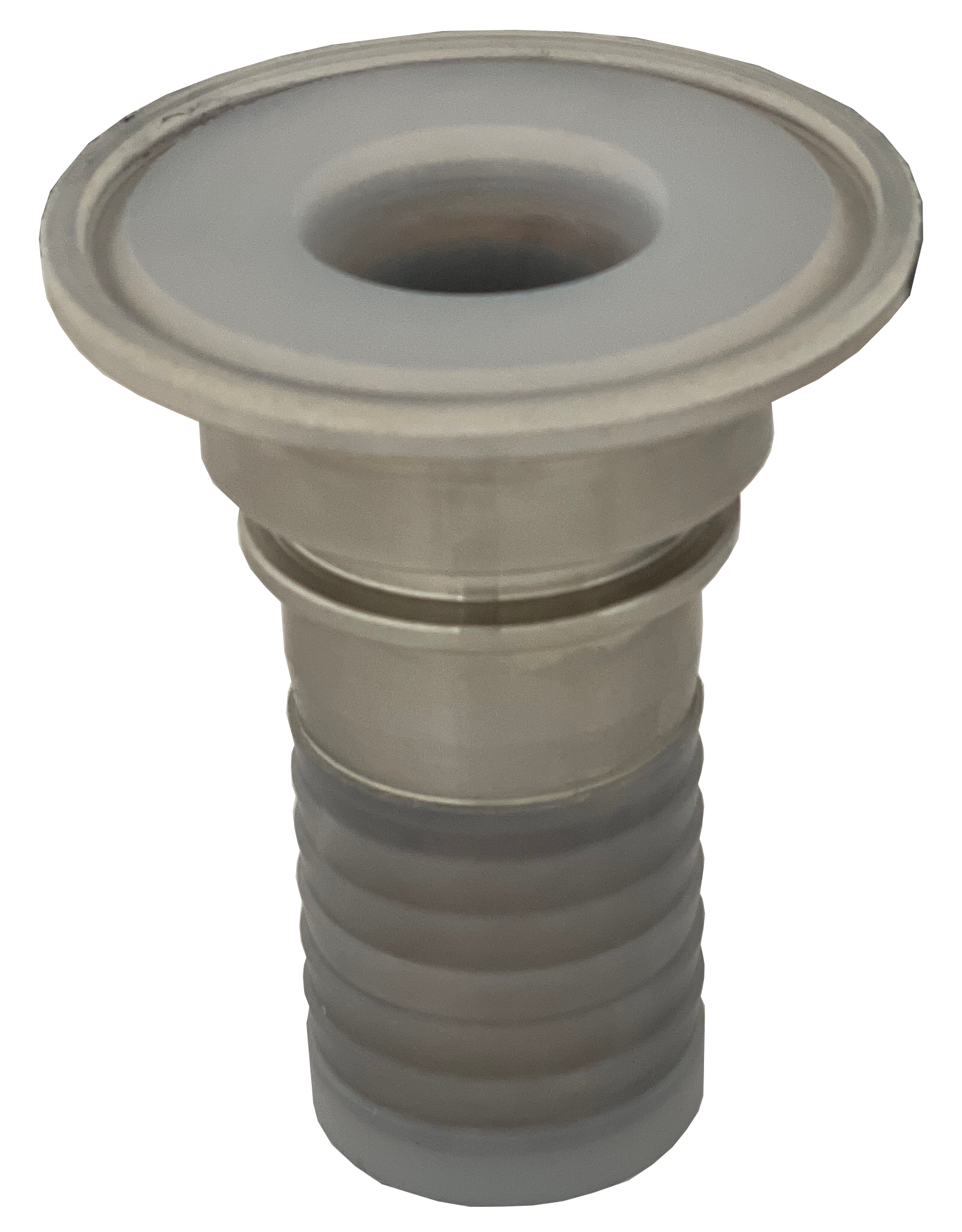

SMOOTH STAINLESS STEEL CLAMP FITTING WITH UNDERHEAD RING DIN 32676
ONLINE CATALOGUE › FITTINGS FOR THE CHEMICAL AND FOOD INDUSTRY › STAINLESS STEEL CLAMP FITTINGS › DIN 32676 STAINLESS STEEL CLAMP FITTINGS
Download sheet in pdf format
CLAMP DIN 32676 fitting coated in PFA fluoroderivative
Rubber holder with safety ring under the head for pressed rings
Maximum operating pressure 16 bar
Rubber holder with safety ring under the head for pressed rings
Maximum operating pressure 16 bar
| CODE | DISC | RUBBER HOLDER |
| 3740CLPFA025-DIN | 50.5 | 25 |
| 3740CLPFA032-DIN | 50.5 | 32 |
| 3740CLPFA38-DIN | 50.5 | 38 |
| 3740CLPFA51-DIN | 64 | 51 |
| 3740CLPFA63-DIN | 91 | 63 |
| 3740CLPFA76-DIN | 106 | 76 |
| 3740CLPFA101-DIN | 119 | 101.4 |
