CURVE 90 CLAMP STAINLESS STEEL DIN 32676 TO BE WELDED
ONLINE CATALOGUE › FITTINGS FOR THE CHEMICAL AND FOOD INDUSTRY › STAINLESS STEEL CLAMP FITTINGS › DIN 32676 STAINLESS STEEL CLAMP FITTINGS
Download sheet in pdf format

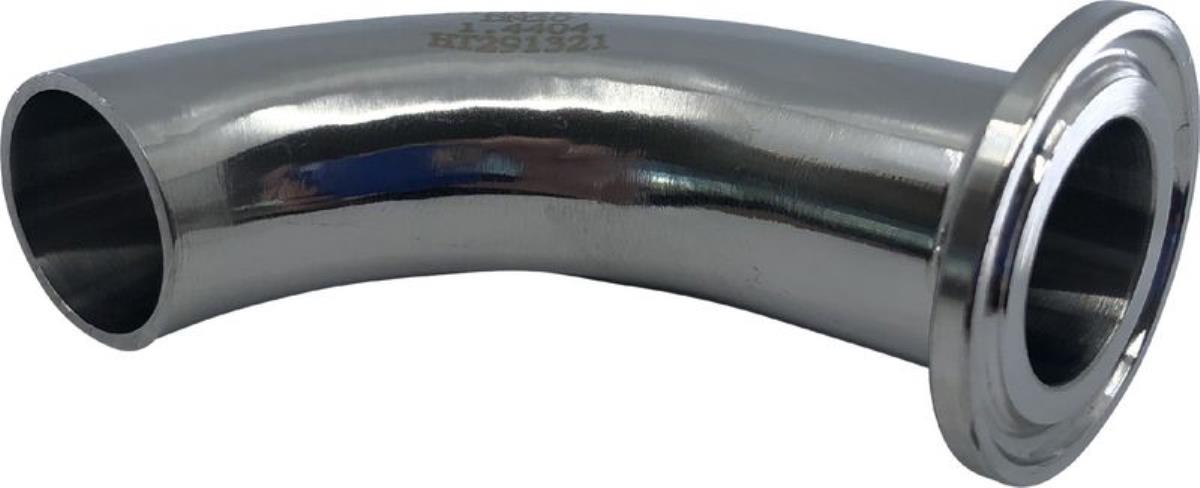

90° CURVED CLAMP FITTING INOX AISI 316 DIN 32676 WITH SMOOTH SIDE TO WELD
MAXIMUM OPERATING PRESSURE 16 bar
MAXIMUM OPERATING PRESSURE 16 bar
| CODE | DN | DISC mm |
| 3740CL90BW076 | 20 | 34 |
| 3740CL90BW106 | 25 | 50.5 |
| 3740CL90BW125 | 32 | 50.5 |
| 3740CL90BW156 | 40 | 50.5 |
| 3740CL90BW206 | 50 | 64 |
| 3740CL90BW256 | 65 | 91 |
| 3740CL90BW306 | 80 | 106 |
