GASKETS FOR CLAMP CONNECTOR DIN 32676
ONLINE CATALOGUE › FITTINGS FOR THE CHEMICAL AND FOOD INDUSTRY › STAINLESS STEEL CLAMP FITTINGS › DIN 32676 STAINLESS STEEL CLAMP FITTINGS
Download sheet in pdf format

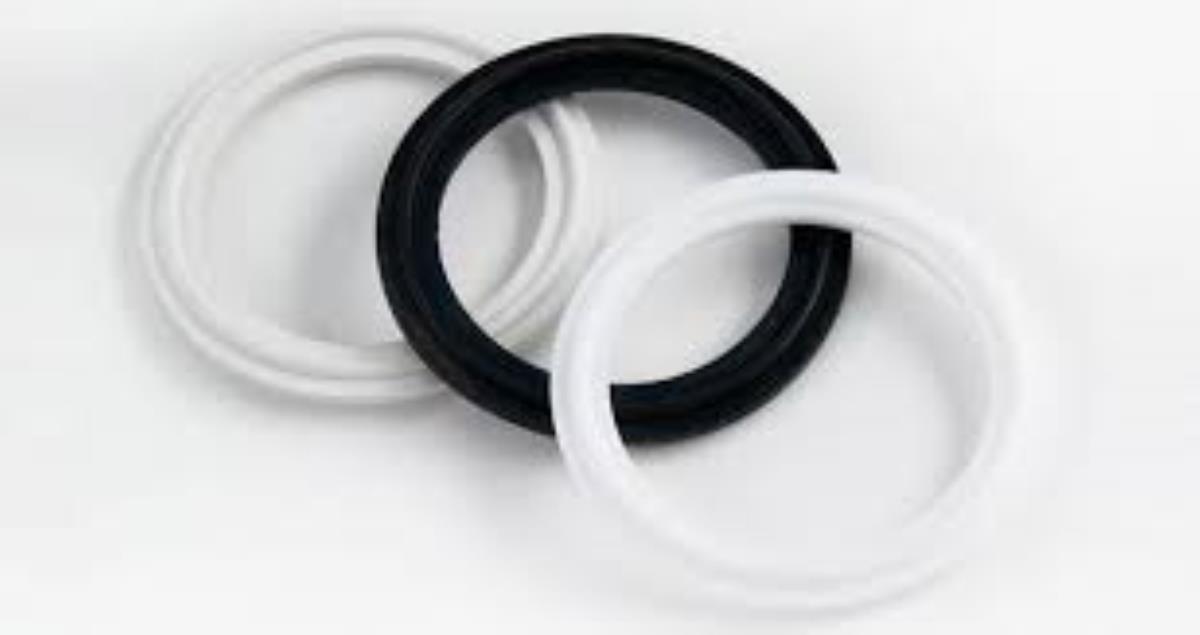

SEAL FOR CLAMP FITTINGS
APPROVALS FOR USE IN THE FOOD INDUSTRY FDA - EC1935/2004
AVAILABLE MATERIALS: BLACK EPDM RUBBER - WHITE NBR RUBBER
APPROVALS FOR USE IN THE FOOD INDUSTRY FDA - EC1935/2004
AVAILABLE MATERIALS: BLACK EPDM RUBBER - WHITE NBR RUBBER
| Usage temperatures in °C | |||
| minimum | maxims | COLOR | |
| EPDM FDA | -40 | +150 | BLACK |
| NBR ACCORDING TO EC1935 | -30 | +100 | WHITE |
| CODE | COLOR | MATERIAL | DN | DISC |
| 3740EPDM015DIN | BLACK | EPDM | 15 | 34 |
| 3740EPDM020DIN | BLACK | EPDM | 20 | 34 |
| 3740EPDM025DIN | BLACK | EPDM | 25 | 50.5 |
| 3740EPDM032DIN | BLACK | EPDM | 32 | 50.5 |
| 3740EPDM040DIN | BLACK | EPDM | 40 | 50.5 |
| 3740EPDM050DIN | BLACK | EPDM | 50 | 64 |
| 3740EPDM065DIN | BLACK | EPDM | 65 | 91 |
| 3740EPDM100DIN | BLACK | EPDM | 100 | 119 |
| CODE | COLOR | MATERIAL | DN | DISC |
| 3740NBR025DIN | WHITE | NBR | 25 | 50.5 |
| 3740NBR040DIN | WHITE | NBR | 40 | 50.5 |
| 3740NBR050DIN | WHITE | NBR | 50 | 64 |
| 3740NBR065DIN | WHITE | NBR | 65 | 91 |
| 3740NBR080DIN | WHITE | NBR | 80 | 106 |
