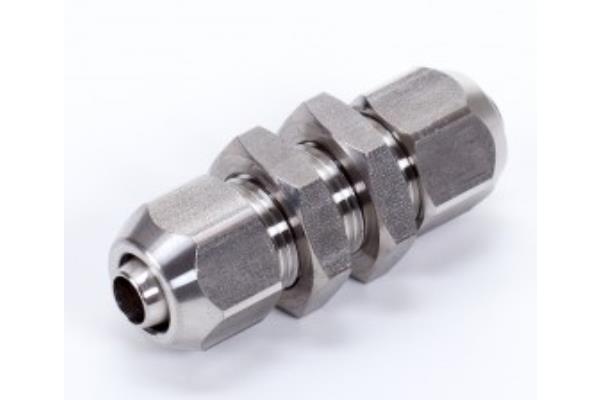

INTERMEDIATE STAINLESS STEEL BULKHUT FITTING
ONLINE CATALOGUE › FITTINGS FOR THE CHEMICAL AND FOOD INDUSTRY › STAINLESS STEEL AISI316L FITTINGS
Download sheet in pdf format
Code: 345 X
INTERMEDIATE BULKHUTTHRUTH FITTING FITTING IN AISI 316L STAINLESS STEEL
Connection hoses: PA6, PA11, PA12, Polyethylene, Polyurethane, PTFE, FEP.
Compatible fluids: Compressed air - Vacuum - Water. Fluids for the food and chemical industry
Minimum package 10 pieces
reference standards:
- REACH DIRECTIVE 1907/2006
- RoHS3 EU DIRECTIVE 2011/65/EC
- PED 2014/68/EU
- NSF/ANSI 169
- MOCA 1935/2004
- SILICON FREE
INTERMEDIATE BULKHUTTHRUTH FITTING FITTING IN AISI 316L STAINLESS STEEL
Connection hoses: PA6, PA11, PA12, Polyethylene, Polyurethane, PTFE, FEP.
Compatible fluids: Compressed air - Vacuum - Water. Fluids for the food and chemical industry
Minimum package 10 pieces
reference standards:
- REACH DIRECTIVE 1907/2006
- RoHS3 EU DIRECTIVE 2011/65/EC
- PED 2014/68/EU
- NSF/ANSI 169
- MOCA 1935/2004
- SILICON FREE
| code | tube |
| 32C345X06/04 | 6/4 |
| 32C345X08/06 | 8/6 |
