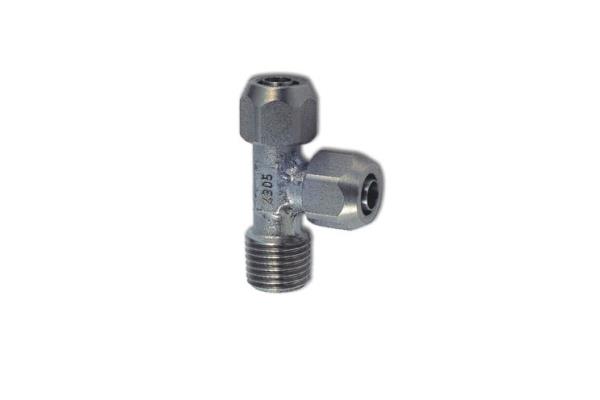

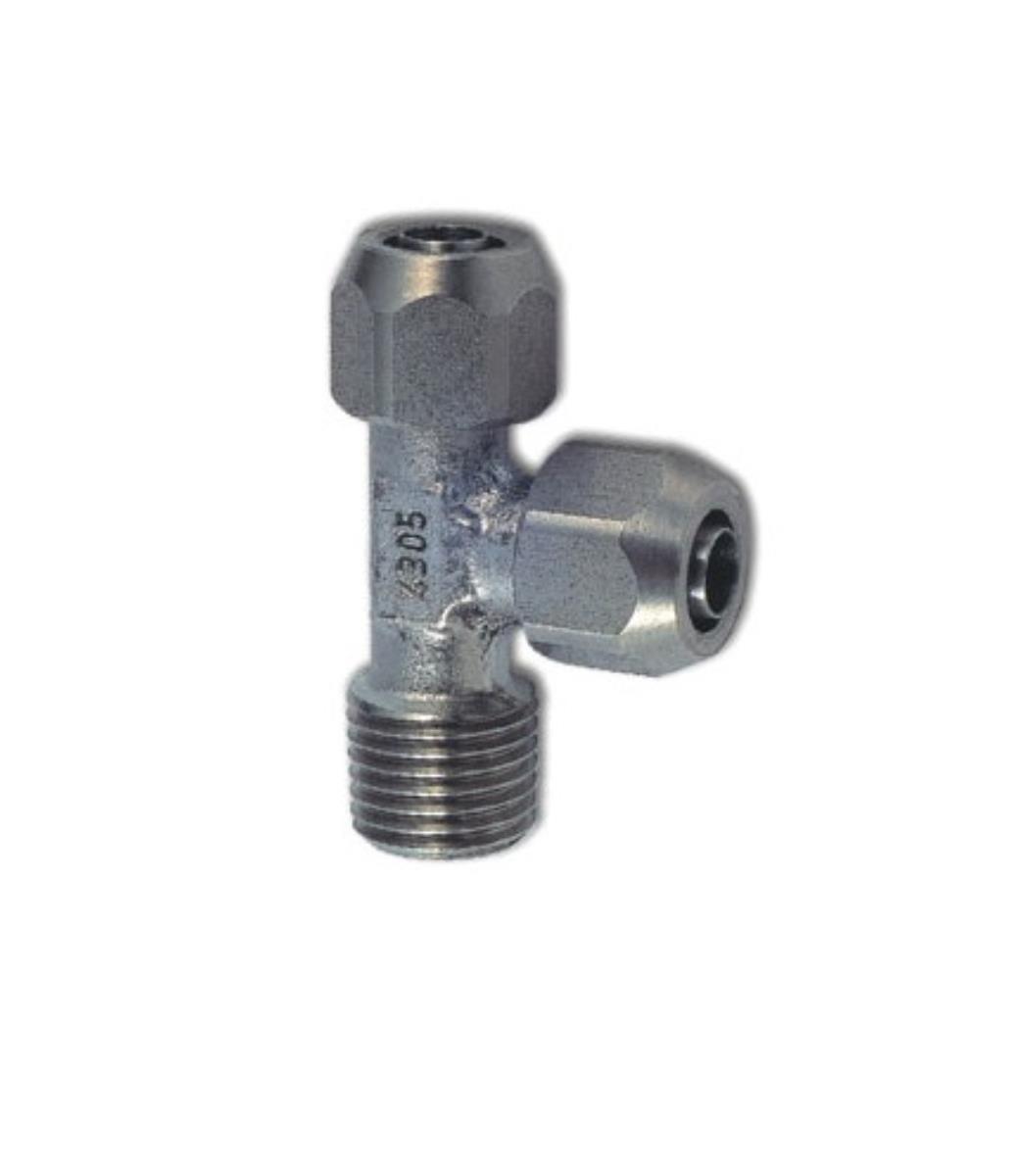

BSPT FIXED CONICAL MALE SIDE TEE FITTING
ONLINE CATALOGUE › FITTINGS FOR THE CHEMICAL AND FOOD INDUSTRY › STAINLESS STEEL AISI316L FITTINGS
Download sheet in pdf format
Code: 351 X
SIDE CONICAL MALE T-FITTING WITH AISI316L STAINLESS STEEL FITTING, silicon free.
minimum pack of 10 pieces
Connection hoses: PA6, PA11, PA12, Polyethylene, Polyurethane, PTFE, FEP.
Minimum Temperature -15 °C Maximum Temperature +225°C
Conical gas thread compliant with ISO 7.1, BS 21, DIN 2999
Minimum pressure: -0.99 bar (-0.099 Mpa) Maximum pressure: 15 bar (1.5 Mpa)
Compatible fluids: Compressed air - Vacuum - Water. Fluids for the food and chemical industry
reference standards:
1907/2006 REACH, 2011/65/EC
NSF/ANSI 169
PED 2014/68/EU
MOCA 1935/2004CE
SIDE CONICAL MALE T-FITTING WITH AISI316L STAINLESS STEEL FITTING, silicon free.
minimum pack of 10 pieces
Connection hoses: PA6, PA11, PA12, Polyethylene, Polyurethane, PTFE, FEP.
Minimum Temperature -15 °C Maximum Temperature +225°C
Conical gas thread compliant with ISO 7.1, BS 21, DIN 2999
Minimum pressure: -0.99 bar (-0.099 Mpa) Maximum pressure: 15 bar (1.5 Mpa)
Compatible fluids: Compressed air - Vacuum - Water. Fluids for the food and chemical industry
reference standards:
1907/2006 REACH, 2011/65/EC
NSF/ANSI 169
PED 2014/68/EU
MOCA 1935/2004CE
| code | measures tube/thread |
| 32C351X6/04-1/8 | 6/4 - 1/8" |
| 32C351X6/04-1/4 | 6/4 - 1/4" |
| 32C351X8/06-1/8 | 8/6 - 1/8" |
| 32C351X8/06-1/4 | 8/6 - 1/4" |
| 32C351X10/8-1/4 | 10/8 - 1/4" |
| 32C351X10/8-3/8 | 10/8 - 3/8" |
