HT FITTING FOR DOWNSHIPS 22
ONLINE CATALOGUE › FITTINGS FOR THE CHEMICAL AND FOOD INDUSTRY › POM QUICK CONNECTORS - SERIES 700
Download sheet in pdf format

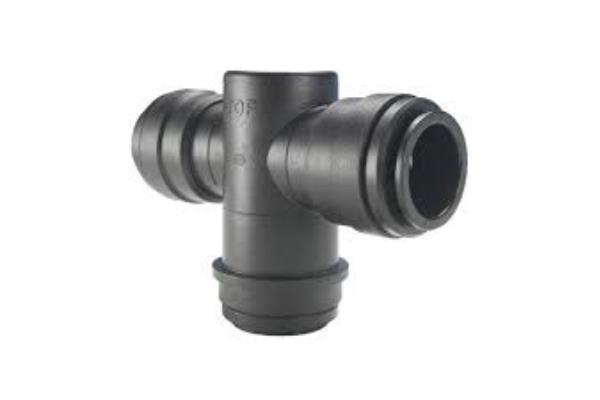

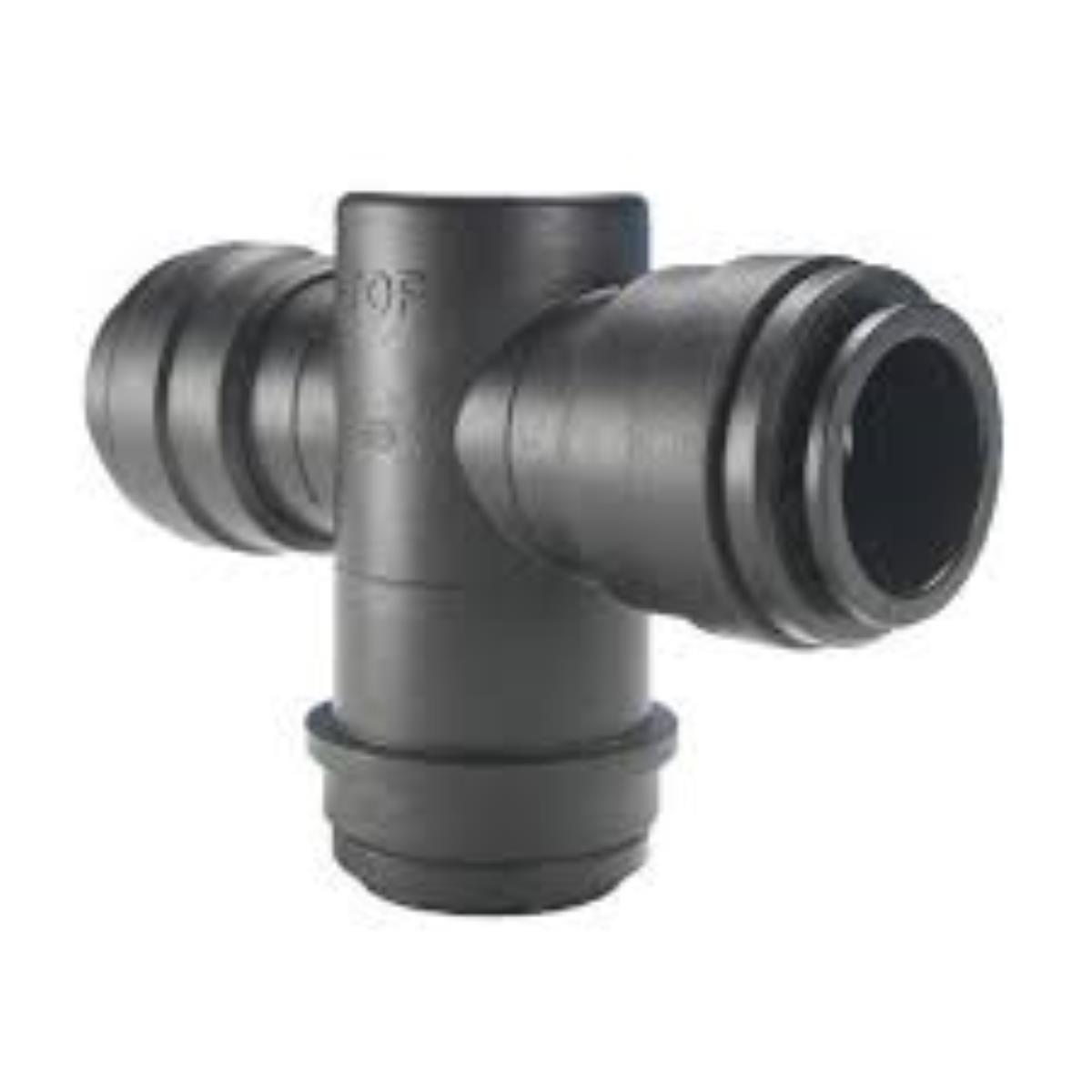

SIPHON FOR LOWER FOR PIPE Ø 22 x 18 IN SELF-EXTINGUISHING PA12 OR IN DN22 ALUMINUM BAR
IT SOLVE MANY CONDENSATION PROBLEMS IN COMPRESSED AIR SYSTEMS. IT IS THE ALTERNATIVE TO "I COLLI DI CIGNO".
THE EFFECTIVE SYSTEM INTERNAL TO THE FITTING ALLOWS THE COMPRESSED AIR TO FLOW WITH MINIMUM LOSS OF
LOAD WITHOUT DROPING THE CONDENSATE WHICH WITH THE RIGHT SLOPE WILL COLLECT AT THE BOTTOM OF THE LINE OR IN THE MOST CONVENIENT POINT OF THE SYSTEM.
ONE SIZE FOR TUBE OUTSIDE DIAMETER 22mm
