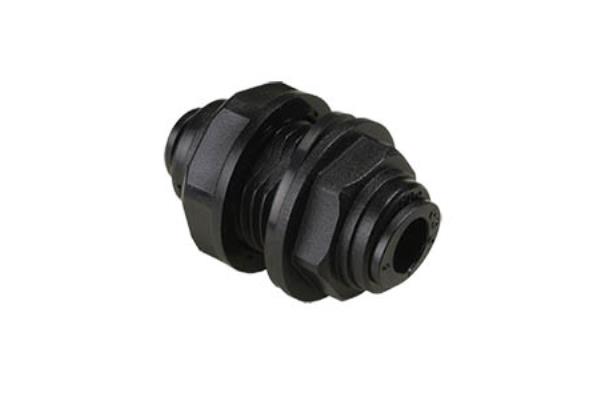

art.726 INTERMEDIATE BULKHEAD
ONLINE CATALOGUE › FITTINGS FOR THE CHEMICAL AND FOOD INDUSTRY › POM QUICK CONNECTORS - SERIES 700
Download sheet in pdf format
Code: 726
| ØD1 | ØD2 | T | B1 | B2 | H1 (HEX) | H2 (HEX) | L | WEIGHT | CONF. |
|---|---|---|---|---|---|---|---|---|---|
| 6 | 4 | M17x1.5P | 16.1 | 16.1 | 19 | 21 | 35.5 | 9.8 | 50 |
| 6 | 6 | M17x1.5P | 16.1 | 16.1 | 19 | 21 | 35.7 | 9.6 | 50 |
| 8 | 6 | M20x1.75P | 17.5 | 17.5 | 21 | 25.5 | 38.1 | 14.3 | 25 |
| 8 | 8 | M20x1.75P | 17.5 | 17.5 | 21 | 25.5 | 38.5 | 14.0 | 25 |
| 10 | 10 | M24x1.75P | 20.1 | 20.1 | 24 | 28.5 | 42.2 | 19.5 | 25 |
| 12 | 12 | M27x2.0P | 24.7 | 24.7 | 27 | 31 | 51.4 | 28.2 | 20 |
| 4 | 4 | M15x1.5P | 14.7 | 14.7 | 17 | 18 | 32.4 | 6.9 | 50 |
