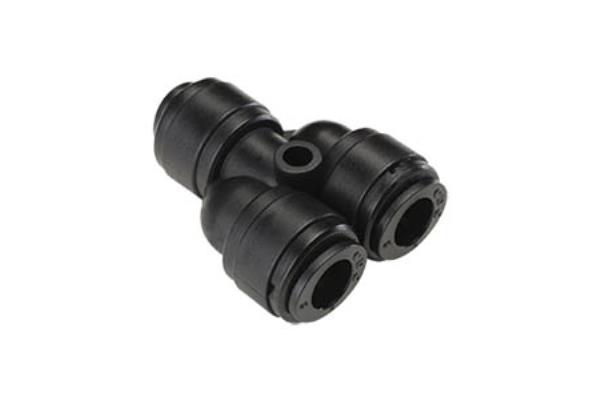

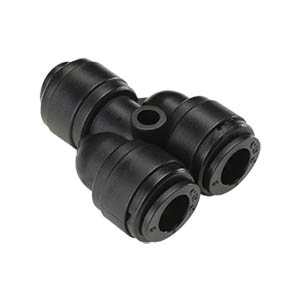

art.723 INTERMEDIATE Y
ONLINE CATALOGUE › FITTINGS FOR THE CHEMICAL AND FOOD INDUSTRY › POM QUICK CONNECTORS - SERIES 700
Download sheet in pdf format
Code: 723
| ØD1 | ØD2 | B1 | B2 | ØP1 | ØP2 | ØC | J | L | WEIGHT | CONF. |
|---|---|---|---|---|---|---|---|---|---|---|
| 4 | 4 | 14.7 | 14.7 | 13.8 | 13.8 | 3.3 | 13.5 | 33.7 | 6.7 | 100 |
| 6 | 6 | 16.1 | 16.1 | 15.5 | 15.5 | 3.3 | 15.5 | 38.8 | 9.2 | 50 |
| 8 | 8 | 17.5 | 17.5 | 17.6 | 17.6 | 4.5 | 17.6 | 41.0 | 11.6 | 50 |
| 10 | 10 | 20.1 | 20.1 | 20.0 | 20.0 | 4.5 | 20.0 | 46.2 | 16.0 | 25 |
| 12 | 12 | 24.7 | 24.7 | 23.0 | 23.0 | 4.5 | 23.0 | 56.4 | 26.3 | 20 |
| 10 | 8 | 20.1 | 17.5 | 20.0 | 20.0 | 4.5 | 20.0 | 45.9 | 16.8 | 25 |
