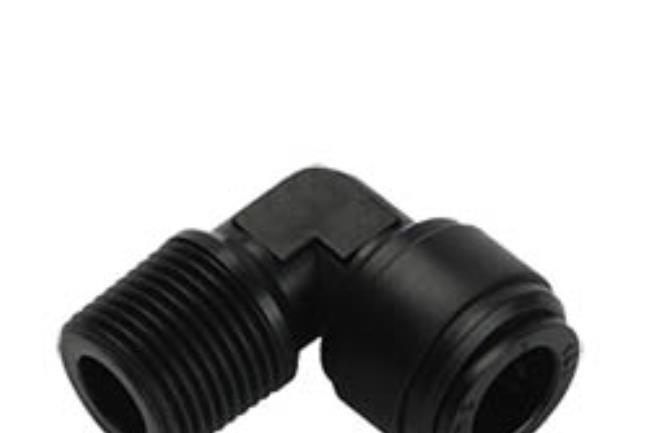

art.706 MALE CONICAL ELBOW BSPT
ONLINE CATALOGUE › FITTINGS FOR THE CHEMICAL AND FOOD INDUSTRY › POM QUICK CONNECTORS - SERIES 700
Download sheet in pdf format
Code: 706

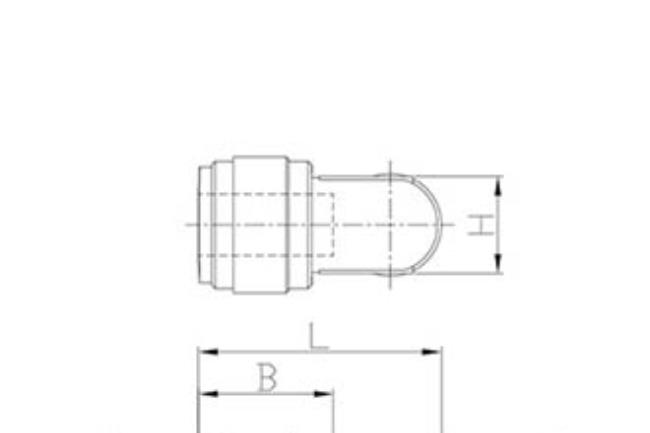

| ØD | T | ØP | TO | b | AND | L | H (HEX) | WEIGHT | CONF. |
|---|---|---|---|---|---|---|---|---|---|
| 6 | R1/8" | 15.0 | 9.1 | 16.1 | 25.6 | 25.4 | 10 | 4.1 | 100 |
| 6 | R1/4" | 15.0 | 13.1 | 16.1 | 30.6 | 27.0 | 10 | 5.1 | 50 |
| 8 | R1/4" | 17.6 | 13.1 | 17.5 | 32.2 | 31.5 | 13 | 7.0 | 50 |
| 10 | R3/8" | 20.0 | 13.5 | 20.1 | 35.7 | 33.9 | 14 | 9.2 | 50 |
| 12 | R1/2" | 23.0 | 16.3 | 24.7 | 41.4 | 40.7 | 17.7 | 15.6 | 25 |
| 4 | R1/8" | 15.0 | 9.1 | 14.7 | 25.6 | 25.2 | 10 | 4.2 | 100 |
| 6 | R3/8" | 17.6 | 13.5 | 16.1 | 32.6 | 33.1 | 13 | 8.4 | 50 |
| 8 | R3/8" | 17.6 | 13.5 | 17.5 | 32.6 | 33.5 | 13 | 8.0 | 50 |
| 10 | R1/4" | 23.6 | 13.1 | 20.1 | 38.3 | 37.5 | 17 | 14.1 | 25 |
| 12 | R1/4" | 23.6 | 13.1 | 24.7 | 38.3 | 38.2 | 17 | 13.1 | 25 |
| 12 | R3/8" | 23.0 | 13.5 | 24.7 | 38.3 | 38.4 | 17.0 | 13.2 | 25 |
