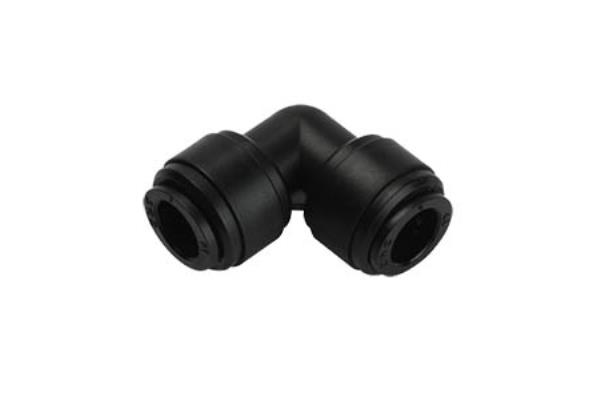

art.703 INTERMEDIATE CORNER
ONLINE CATALOGUE FITTINGS FOR THE CHEMICAL AND FOOD INDUSTRY POM QUICK CONNECTORS - SERIES 700
Download sheet in pdf format
Code: 703
INTERMEDIATE ELBOW
INTERMEDIATE WITH REDUCED ELBOW
INTERMEDIATE ELBOW
| ØD1 | ØD2 | B1 | B2 | ØE1 | ØE2 | L | H | WEIGHT | CONF. |
|---|---|---|---|---|---|---|---|---|---|
| 4 | 4 | 14.7 | 14.7 | 13.2 | 13.2 | 24.5 | 24.5 | 3.9 | 100 |
| 6 | 6 | 16.1 | 16.1 | 15.0 | 15.0 | 27.6 | 27.6 | 5.1 | 100 |
| 8 | 6 | 17.5 | 16.1 | 17.6 | 17.6 | 30.7 | 30.3 | 7.7 | 50 |
| 8 | 8 | 17.5 | 17.5 | 17.6 | 17.6 | 30.7 | 30.7 | 7.6 | 50 |
| 10 | 10 | 20.1 | 20.1 | 20.0 | 20.0 | 35.8 | 35.8 | 10.2 | 50 |
| 12 | 12 | 24.7 | 24.7 | 23.0 | 23.0 | 43.2 | 43.2 | 16.4 | 25 |
INTERMEDIATE WITH REDUCED ELBOW
| ØD1 | ØD2 | B1 | B2 | ØE1 | ØE2 | L | H | WEIGHT | CONF. |
| 8 | 4 | 17.5 | 14.7 | 17.6 | 13.2 | 28.3 | 29.7 | 5.9 | 50 |
| 10 | 6 | 20.1 | 16.1 | 23.0 | 17.6 | 37.8 | 36.1 | 12.6 | 50 |
| 10 | 8 | 20.1 | 17.5 | 20.0 | 20.0 | 35.8 | 35.5 | 10.2 | 50 |
| 12 | 6 | 24.7 | 16.1 | 23.0 | 17.6 | 38.5 | 36.1 | 12.0 | 50 |
| 12 | 8 | 24.7 | 17.5 | 23.0 | 17.6 | 38.5 | 36.5 | 11.9 | 50 |
| 12 | 10 | 24.7 | 20.1 | 23.0 | 23.0 | 43.2 | 42.5 | 17.3 | 25 |
| 15 | 15 | 29.4 | 29.4 | 28.0 | 28.0 | 52.2 | 52.2 | 27.4 | 20 |
| 22 | 22 | 33.8 | 33.8 | 35.5 | 35.5 | 63.9 | 63.9 | 46.8 | 9 |
