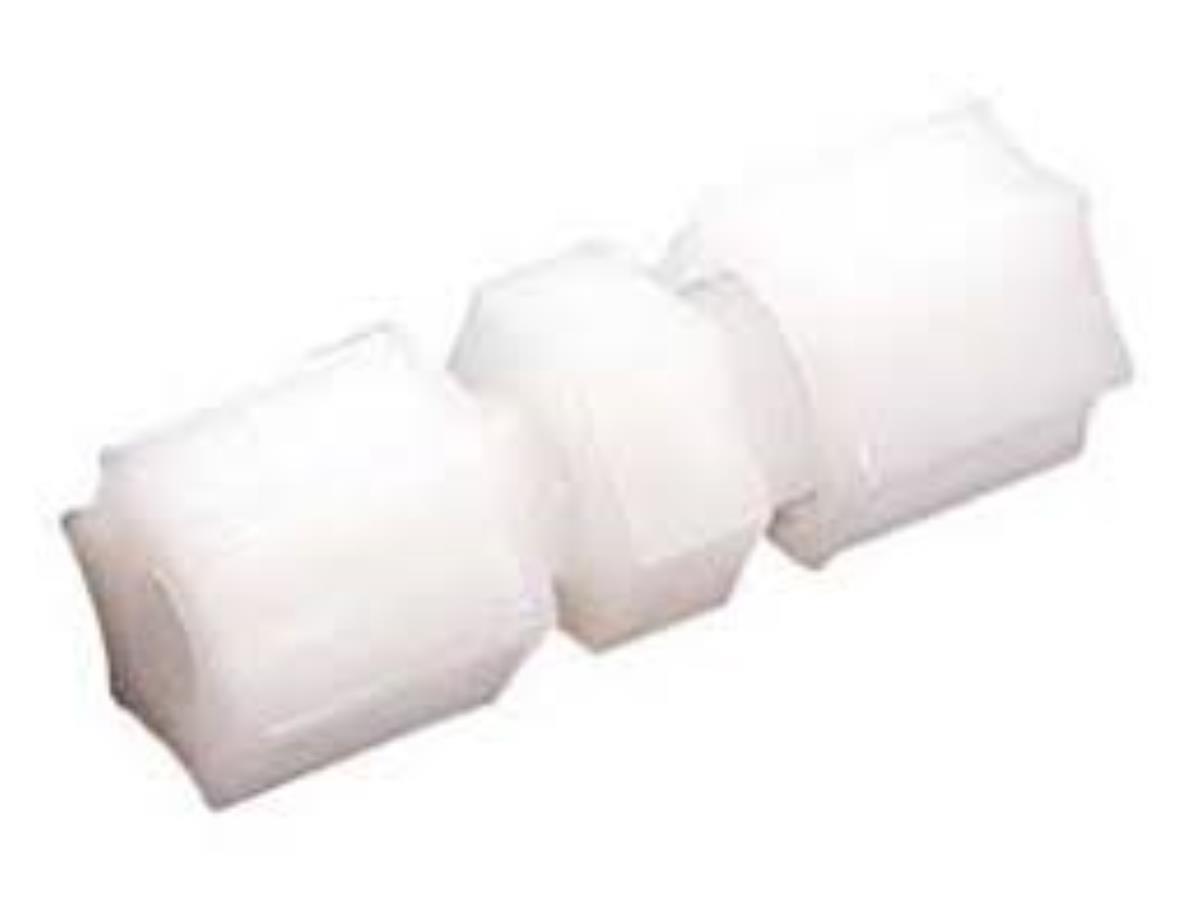

JACO CONNECTION UNION LAW
ONLINE CATALOGUE › FITTINGS FOR THE CHEMICAL AND FOOD INDUSTRY › JACO FITTINGS
Download sheet in pdf format
| VERSION IN POLYPROPYLENE | DIAMETER EXTERNAL PIPE IN INCHES | THREAD NPT IN INCHES | LENGTH CONNECTION mm | HEXAGON KEY mm |
| 39JACO_PP_DU_04_02 | 1/4" | 1/8" | 44 | 16 |
| 39JACO_PP_DU_04_04 | 1/4" | 1/4" | 50 | 16 |
| 39JACO_PP_DU_05_05 | 5/16" | 5/16" | 53 | 18 |
| 39JACO_PP_DU_06_04 | 3/8" | 1/4" | 54 | 21 |
| 39JACO_PP_DU_06_06 | 3/8" | 3/8" | 53 | 21 |
| 39JACO_PP_DU_08_06 | 1/2" | 3/8" | 62 | 25 |
| 39JACO_PP_DU_08_08 | 1/2" | 1/2" | 67 | 24 |
| 39JACO_PP_DU_10_06 | 5/8" | 3/8" | 53 | 28 |
| 39JACO_PP_DU_10_08 | 5/8" | 1/2" | 59 | 28 |
| 39JACO_PP_DU_10_10 | 5/8" | 5/8" | 69 | 28 |
| 39JACO_PP_DU_12_12 | 3/4" | 3/4" | 82 | 34 |
| 39JACO_PP_DU_14_10 | 7/8" | 5/8" | 80 | 37 |
| 39JACO_PP_DU_14_14 | 7/8" | 7/8" | 85 | 37 |
| VERSION IN KYNAR-PVDF | DIAMETER EXTERNAL PIPE IN INCHES | THREAD NPT IN INCHES | LENGTH CONNECTION mm | HEXAGON KEY mm |
| 39JACO_KY_DU_04_02 | 1/4" | 1/8" | 44 | 16 |
| 39JACO_KY_DU_04_04 | 1/4" | 1/4" | 50 | 16 |
| 39JACO_KY_DU_05_05 | 5/16" | 5/16" | 53 | 18 |
| 39JACO_KY_DU_06_04 | 3/8" | 1/4" | 54 | 21 |
| 39JACO_KY_DU_06_06 | 3/8" | 3/8" | 53 | 21 |
| 39JACO_KY_DU_08_06 | 1/2" | 3/8" | 62 | 25 |
| 39JACO_KY_DU_08_08 | 1/2" | 1/2" | 67 | 24 |
| 39JACO_KY_DU_10_06 | 5/8" | 3/8" | 53 | 28 |
| 39JACO_KY_DU_10_08 | 5/8" | 1/2" | 59 | 28 |
| 39JACO_KY_DU_10_10 | 5/8" | 5/8" | 69 | 28 |
| 39JACO_KY_DU_12_12 | 3/4" | 3/4" | 82 | 34 |
| 39JACO_KY_DU_14_10 | 7/8" | 5/8" | 80 | 37 |
| 39JACO_KY_DU_14_14 | 7/8" | 7/8" | 85 | 37 |
| VERSION IN NYLON | DIAMETER EXTERNAL PIPE IN INCHES | THREAD NPT IN INCHES | LENGTH CONNECTION mm | HEXAGON KEY mm |
| 39JACO_NY_DU_04_02 | 1/4" | 1/8" | 44 | 16 |
| 39JACO_NY_DU_04_04 | 1/4" | 1/4" | 50 | 16 |
| 39JACO_NY_DU_05_05 | 5/16" | 5/16" | 53 | 18 |
| 39JACO_NY_DU_06_04 | 3/8" | 1/4" | 54 | 21 |
| 39JACO_NY_DU_06_06 | 3/8" | 3/8" | 53 | 21 |
| 39JACO_NY_DU_08_06 | 1/2" | 3/8" | 62 | 25 |
| 39JACO_NY_DU_08_08 | 1/2" | 1/2" | 67 | 24 |
| 39JACO_NY_DU_10_06 | 5/8" | 3/8" | 53 | 28 |
| 39JACO_NY_DU_10_08 | 5/8" | 1/2" | 59 | 28 |
| 39JACO_NY_DU_10_10 | 5/8" | 5/8" | 69 | 28 |
| 39JACO_NY_DU_12_12 | 3/4" | 3/4" | 82 | 34 |
| 39JACO_NY_DU_14_10 | 7/8" | 5/8" | 80 | 37 |
| 39JACO_NY_DU_14_14 | 7/8" | 7/8" | 85 | 37 |
| VERSION IN POLYPROPYLENE | DIAMETER METRIC TUBE mm | DIAMETER METRIC TUBE mm | LENGTH CONNECTION mm | HEXAGON KEY mm |
| 39JACO_PP_DU_M03_M06 | 3 | 6 | 44 | 16 |
| 39JACO_PP_DU_M06_M06 | 6 | 6 | 50 | 16 |
| 39JACO_PP_DU_M08_M08 | 8 | 8 | 53 | 18 |
| 39JACO_PP_DU_M10_M06 | 10 | 6 | 54 | 21 |
| 39JACO_PP_DU_M10_M10 | 10 | 10 | 53 | 24 |
| 39JACO_PP_DU_M12_M10 | 12 | 10 | 62 | 25 |
| 39JACO_PP_DU_M12_M12 | 12 | 12 | 67 | 24 |
| 39JACO_PP_DU_M16_M10 | 16 | 10 | 53 | 28 |
| 39JACO_PP_DU_M16_M12 | 16 | 12 | 56 | 28 |
| 39JACO_PP_DU_M16_M16 | 16 | 16 | 59 | 28 |
| 39JACO_PP_DU_M19_M19 | 19 | 19 | 82 | 34 |
| 39JACO_PP_DU_M22_M16 | 22 | 16 | 80 | 37 |
| 39JACO_PP_DU_M22_M22 | 22 | 22 | 85 | 37 |
| VERSION IN KYNAR-PVDF | DIAMETER METRIC TUBE mm | DIAMETER METRIC TUBE mm | LENGTH CONNECTION mm | HEXAGON KEY mm |
| 39JACO_KY_DU_M03_M06 | 3 | 6 | 44 | 16 |
| 39JACO_KY_DU_M06_M06 | 6 | 6 | 50 | 16 |
| 39JACO_KY_DU_M08_M08 | 8 | 8 | 53 | 18 |
| 39JACO_KY_DU_M10_M06 | 10 | 6 | 54 | 21 |
| 39JACO_KY_DU_M10_M10 | 10 | 10 | 53 | 24 |
| 39JACO_KY_DU_M12_M10 | 12 | 10 | 62 | 25 |
| 39JACO_KY_DU_M12_M12 | 12 | 12 | 67 | 24 |
| 39JACO_KY_DU_M16_M10 | 16 | 10 | 53 | 28 |
| 39JACO_KY_DU_M16_M12 | 16 | 12 | 56 | 28 |
| 39JACO_KY_DU_M16_M16 | 16 | 16 | 59 | 28 |
| 39JACO_KY_DU_M19_M19 | 19 | 19 | 82 | 34 |
| 39JACO_KY_DU_M22_M16 | 22 | 16 | 80 | 37 |
| 39JACO_KY_DU_M22_M22 | 22 | 22 | 85 | 37 |
| VERSION IN NYLON | DIAMETER METRIC TUBE mm | DIAMETER METRIC TUBE mm | LENGTH CONNECTION mm | HEXAGON KEY mm |
| 39JACO_NY_DU_M03_M06 | 3 | 6 | 44 | 16 |
| 39JACO_NY_DU_M06_M06 | 6 | 6 | 50 | 16 |
| 39JACO_NY_DU_M08_M08 | 8 | 8 | 53 | 18 |
| 39JACO_NY_DU_M10_M06 | 10 | 6 | 54 | 21 |
| 39JACO_NY_DU_M10_M10 | 10 | 10 | 53 | 24 |
| 39JACO_NY_DU_M12_M10 | 12 | 10 | 62 | 25 |
| 39JACO_NY_DU_M12_M12 | 12 | 12 | 67 | 24 |
| 39JACO_NY_DU_M16_M10 | 16 | 10 | 53 | 28 |
| 39JACO_NY_DU_M16_M12 | 16 | 12 | 56 | 28 |
| 39JACO_NY_DU_M16_M16 | 16 | 16 | 59 | 28 |
| 39JACO_NY_DU_M19_M19 | 19 | 19 | 82 | 34 |
| 39JACO_NY_DU_M22_M16 | 22 | 16 | 80 | 37 |
| 39JACO_NY_DU_M22_M22 | 22 | 22 | 85 | 37 |
