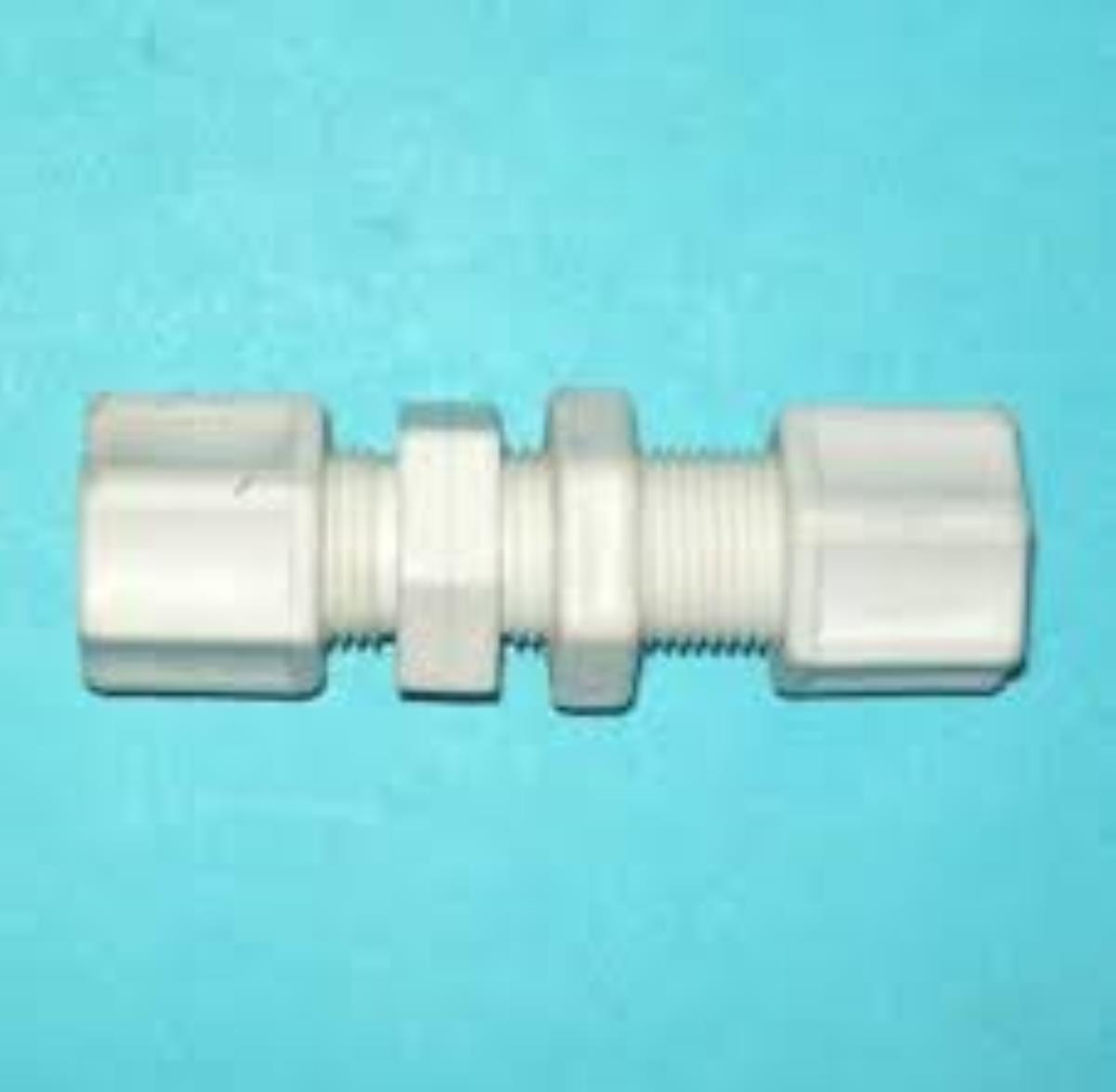

JACO BULKHEAD FITTING
ONLINE CATALOGUE › FITTINGS FOR THE CHEMICAL AND FOOD INDUSTRY › JACO FITTINGS
Download sheet in pdf format
| VERSION IN POLYPROPYLENE | DIAMETER EXTERNAL INCH PIPE | LENGTH FITTING mm | HEXAGON KEY mm |
| 39JACO_PP_PP_04_04 | 1/4" | 60 | 16 |
| 39JACO_PP_PP_05_05 | 5/16" | 66 | 18 |
| 39JACO_PP_PP_06_06 | 3/8" | 68 | 23 |
| 39JACO_PP_PP_08_08 | 1/2" | 75 | 27 |
| 39JACO_PP_PP_12_12 | 3/4" | 94 | 33 |
| VERSION IN POLYPROPYLENE | DIAMETER EXTERNAL IN mm | LENGTH FITTING mm | HEXAGON KEY mm |
| 39JACO_PP_PP_M06_M06 | 6 | 60 | 16 |
| 39JACO_PP_PP_M08_M08 | 8 | 66 | 18 |
| 39JACO_PP_PP_M10_M10 | 10 | 68 | 23 |
| 39JACO_PP_PP_M12_M12 | 12 | 75 | 27 |
| 39JACO_PP_PP_M19_M19 | 19 | 94 | 33 |
| VERSION IN KYNAR -PVDF | DIAMETER EXTERNAL INCH PIPE | LENGTH FITTING mm | HEXAGON KEY mm |
| 39JACO_KY_PP_04_04 | 1/4" | 60 | 16 |
| 39JACO_KY_PP_05_05 | 5/16" | 66 | 18 |
| 39JACO_KY_PP_06_06 | 3/8" | 68 | 23 |
| 39JACO_KY_PP_08_08 | 1/2" | 75 | 27 |
| 39JACO_KY_PP_12_12 | 3/4" | 94 | 33 |
| VERSION IN KYNAR -PVDF | DIAMETER EXTERNAL IN mm | LENGTH FITTING mm | HEXAGON KEY mm |
| 39JACO_KY_PP_M06_M06 | 6 | 60 | 16 |
| 39JACO_KY_PP_M08_M08 | 8 | 66 | 18 |
| 39JACO_KY_PP_M10_M10 | 10 | 68 | 23 |
| 39JACO_KY_PP_M12_M12 | 12 | 75 | 27 |
| 39JACO_KY_PP_M19_M19 | 19 | 94 | 33 |
| VERSION IN NYLON | DIAMETER EXTERNAL INCH PIPE | LENGTH FITTING mm | HEXAGON KEY mm |
| 39JACO_NY_PP_04_04 | 1/4" | 60 | 16 |
| 39JACO_NY_PP_05_05 | 5/16" | 66 | 18 |
| 39JACO_NY_PP_06_06 | 3/8" | 68 | 23 |
| 39JACO_NY_PP_08_08 | 1/2" | 75 | 27 |
| 39JACO_NY_PP_12_12 | 3/4" | 94 | 33 |
| VERSION IN NYLON | DIAMETER EXTERNAL IN mm | LENGTH FITTING mm | HEXAGON KEY mm |
| 39JACO_NY_PP_M06_M06 | 6 | 60 | 16 |
| 39JACO_NY_PP_M08_M08 | 8 | 66 | 18 |
| 39JACO_NY_PP_M10_M10 | 10 | 68 | 23 |
| 39JACO_NY_PP_M12_M12 | 12 | 75 | 27 |
| 39JACO_NY_PP_M19_M19 | 19 | 94 | 33 |
