MALE HOSE UNION 90 DIN 11851
ONLINE CATALOGUE › FITTINGS FOR THE CHEMICAL AND FOOD INDUSTRY › STAINLESS STEEL FITTINGS DIN 11851
Download sheet in pdf format

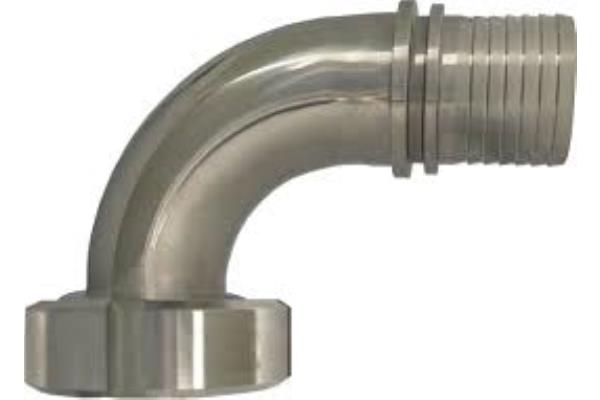

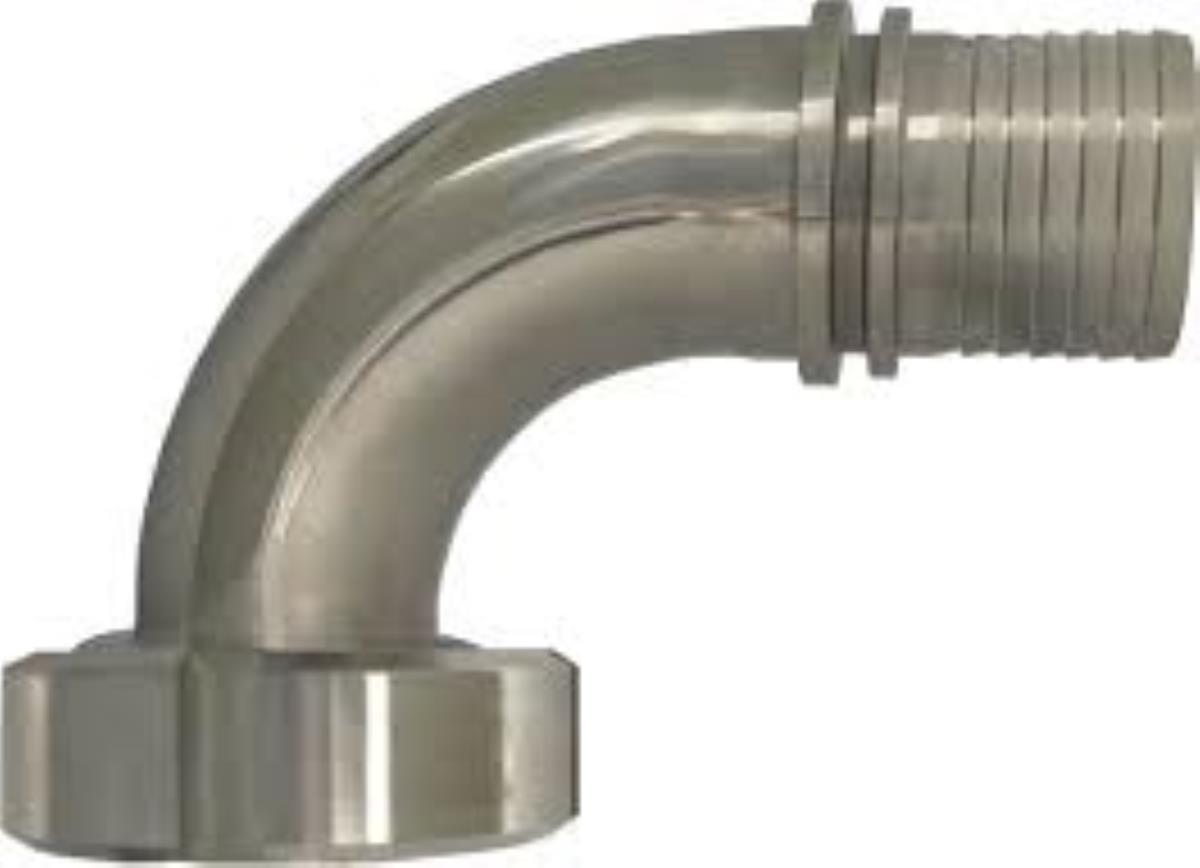

90° HOSE CONNECTOR IN FOOD GRADE AISI 316 STAINLESS STEEL WITH FEMALE SWIVEL ACCORDING TO DIN 11851 STANDARD.
WITH SAFETY COLLAR UNDER THE HEAD SUITABLE FOR FIXING SPANNLOC EN 14420-3 JAWS OR PRESS BUSHINGS.
MAXIMUM WORKING PRESSURE 25 BAR
WITH SAFETY COLLAR UNDER THE HEAD SUITABLE FOR FIXING SPANNLOC EN 14420-3 JAWS OR PRESS BUSHINGS.
MAXIMUM WORKING PRESSURE 25 BAR
| DIMENSION | DIAMETER HOSE HOLDER |
| DN25 | 25mm |
| DN32 | 32mm |
| DN40 | 38mm |
| DN50 | 50mm |
| DN65 | 63mm |
| DN80 | 75mm |
| DN100 | 100mm |
