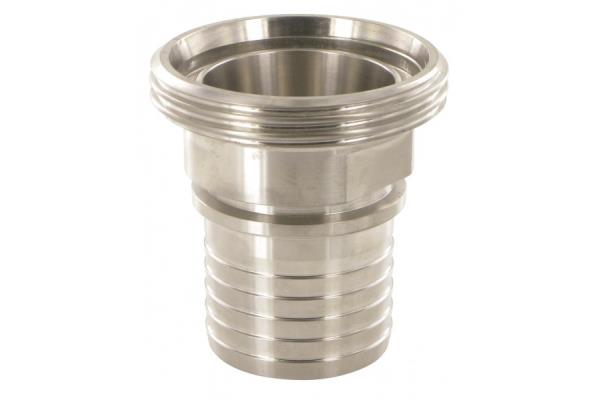

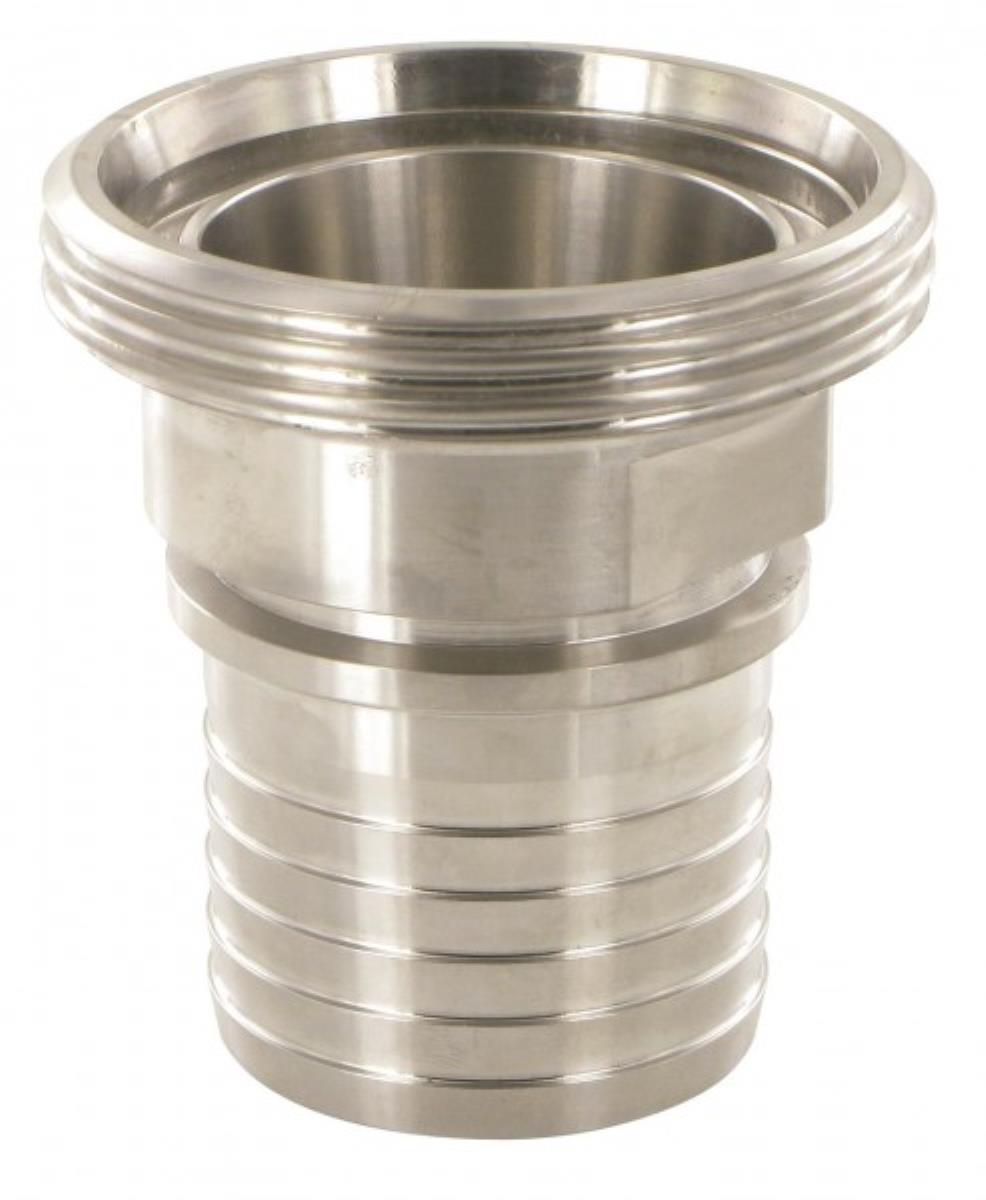

MALE HOSE FITTING DIN 11851
ONLINE CATALOGUE › FITTINGS FOR THE CHEMICAL AND FOOD INDUSTRY › STAINLESS STEEL FITTINGS DIN 11851
Download sheet in pdf format
AISI 316 STAINLESS STEEL MALE CONNECTOR - AS PER DIN 11851 STANDARD
RUBBER HOLDER WITH COLLAR UNDER THE HEAD FOR FIXING WITH SPANNLOC JAWS EN 14420-3 OR SAFETY BUSHINGS TO BE PRESSED WITHOUT GASKET.
MAXIMUM OPERATING PRESSURE 25 BAR
ALSO AVAILABLE ON REQUEST WITH SMOOTH RUBBER HOLDER
RUBBER HOLDER WITH COLLAR UNDER THE HEAD FOR FIXING WITH SPANNLOC JAWS EN 14420-3 OR SAFETY BUSHINGS TO BE PRESSED WITHOUT GASKET.
MAXIMUM OPERATING PRESSURE 25 BAR
ALSO AVAILABLE ON REQUEST WITH SMOOTH RUBBER HOLDER
| SIZE | DIAMETER RUBBER HOLDER |
| DN15 | 13mm |
| DN20 | 19mm |
| DN25 | 25mm |
| DN32 | 32mm |
| DN40 | 38mm |
| DN50 | 50mm |
| DN65 | 63mm |
| DN80 | 75mm |
| DN100 | 100mm |
