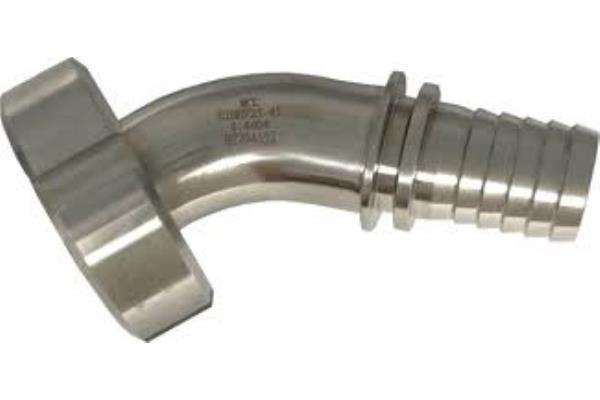

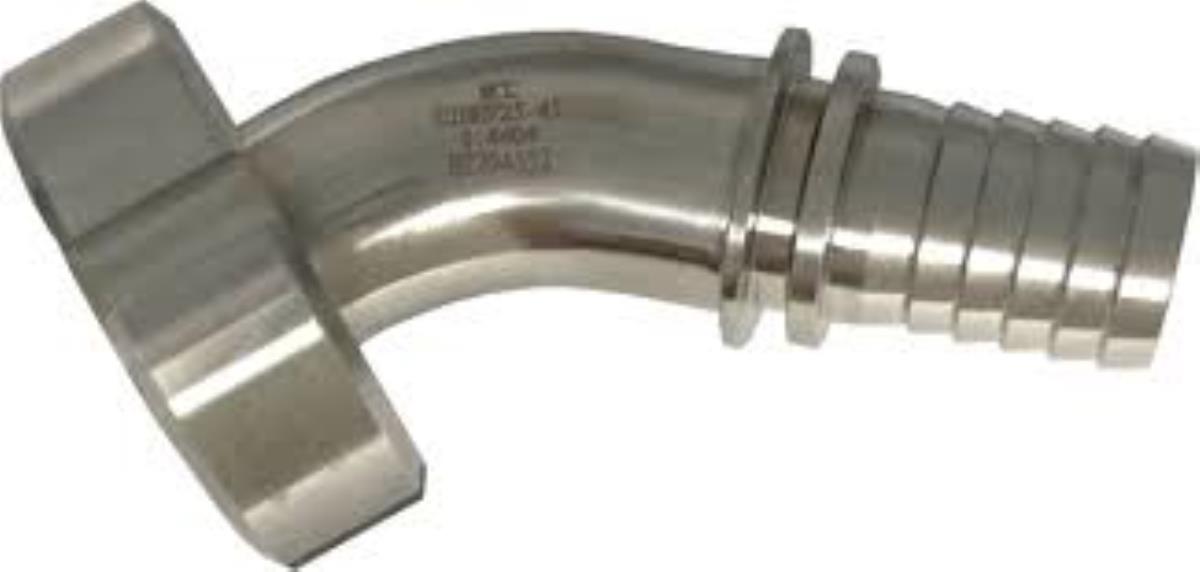

HOSE UNION 45 DIN 11851 WITH SWIVEL
ONLINE CATALOGUE › FITTINGS FOR THE CHEMICAL AND FOOD INDUSTRY › STAINLESS STEEL FITTINGS DIN 11851
Download sheet in pdf format
45° HOSE NOZZLE IN AISI 316 FOOD GRADE STAINLESS STEEL WITH FEMALE SWIVEL ACCORDING TO DIN 11851 STANDARD.
WITH SAFETY COLLAR UNDER THE HEAD SUITABLE FOR FIXING SPANNLOC JAWS EN 14420-3 OR PRESS-ON BUSHINGS.
MAXIMUM OPERATING PRESSURE 25 BAR
WITH SAFETY COLLAR UNDER THE HEAD SUITABLE FOR FIXING SPANNLOC JAWS EN 14420-3 OR PRESS-ON BUSHINGS.
MAXIMUM OPERATING PRESSURE 25 BAR
| SIZE | DIAMETER RUBBER HOLDER |
| DN20 | 19mm |
| DN25 | 25mm |
| DN32 | 32mm |
| DN40 | 38mm |
| DN50 | 50mm |
| DN65 | 63mm |
| DN80 | 75mm |
