HOSE CONNECTOR 45 DIN 11851 MALE
ONLINE CATALOGUE › FITTINGS FOR THE CHEMICAL AND FOOD INDUSTRY › STAINLESS STEEL FITTINGS DIN 11851
Download sheet in pdf format

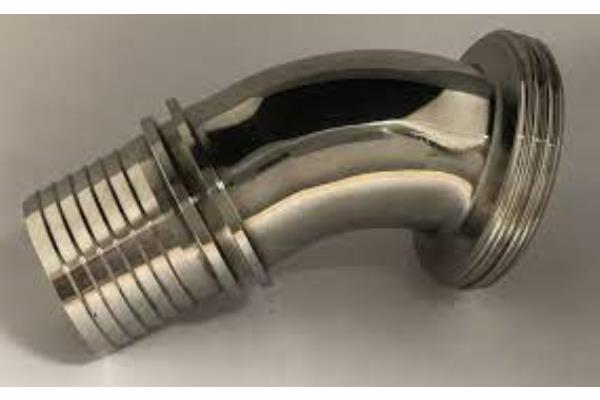

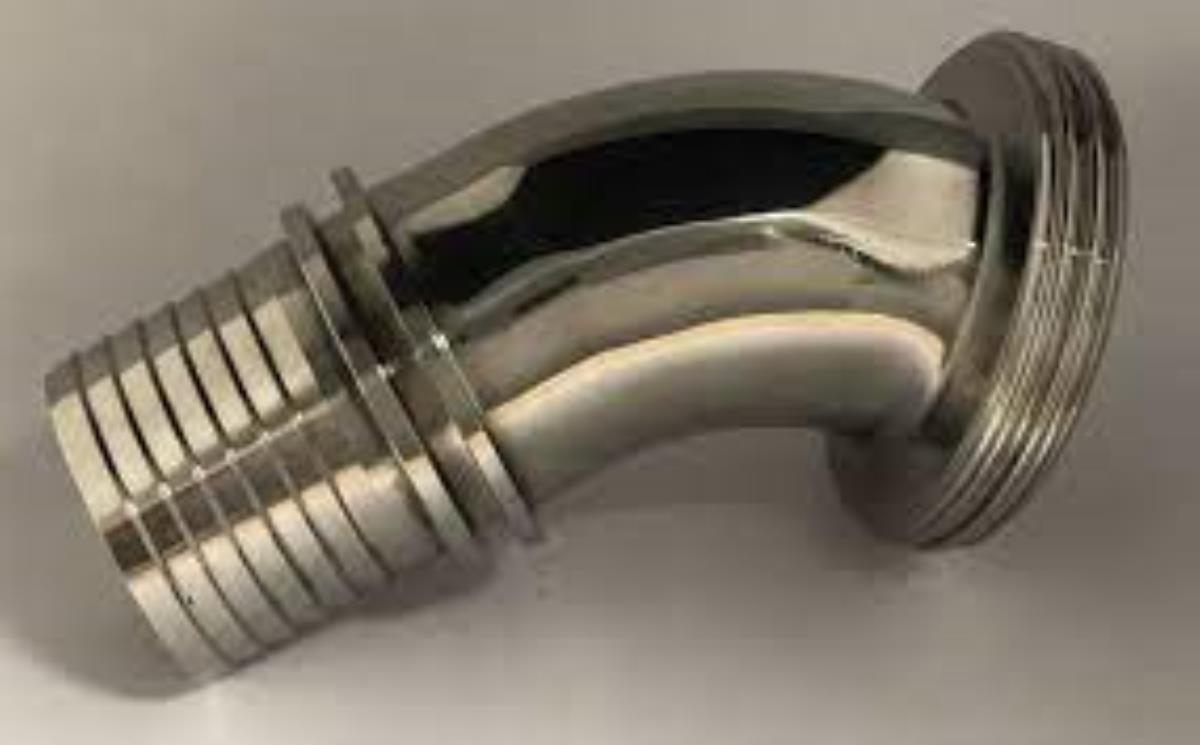

45° HOSE CONNECTOR IN AISI 316 STAINLESS STEEL MALE - AS PER DIN 11851 STANDARD
RUBBER HOLDER WITH COLLAR UNDER THE HEAD FOR FIXING WITH SPANNLOC JAWS EN 14420-3 OR SAFETY BUSHINGS TO BE PRESSED WITHOUT GASKET.
MAXIMUM OPERATING PRESSURE 25 BAR
RUBBER HOLDER WITH COLLAR UNDER THE HEAD FOR FIXING WITH SPANNLOC JAWS EN 14420-3 OR SAFETY BUSHINGS TO BE PRESSED WITHOUT GASKET.
MAXIMUM OPERATING PRESSURE 25 BAR
| SIZE | DIAMETER RUBBER HOLDER |
| DN20 | 19mm |
| DN25 | 25mm |
| DN32 | 32mm |
| DN40 | 38mm |
| DN50 | 50mm |
| DN65 | 63mm |
| DN80 | 75mm |
