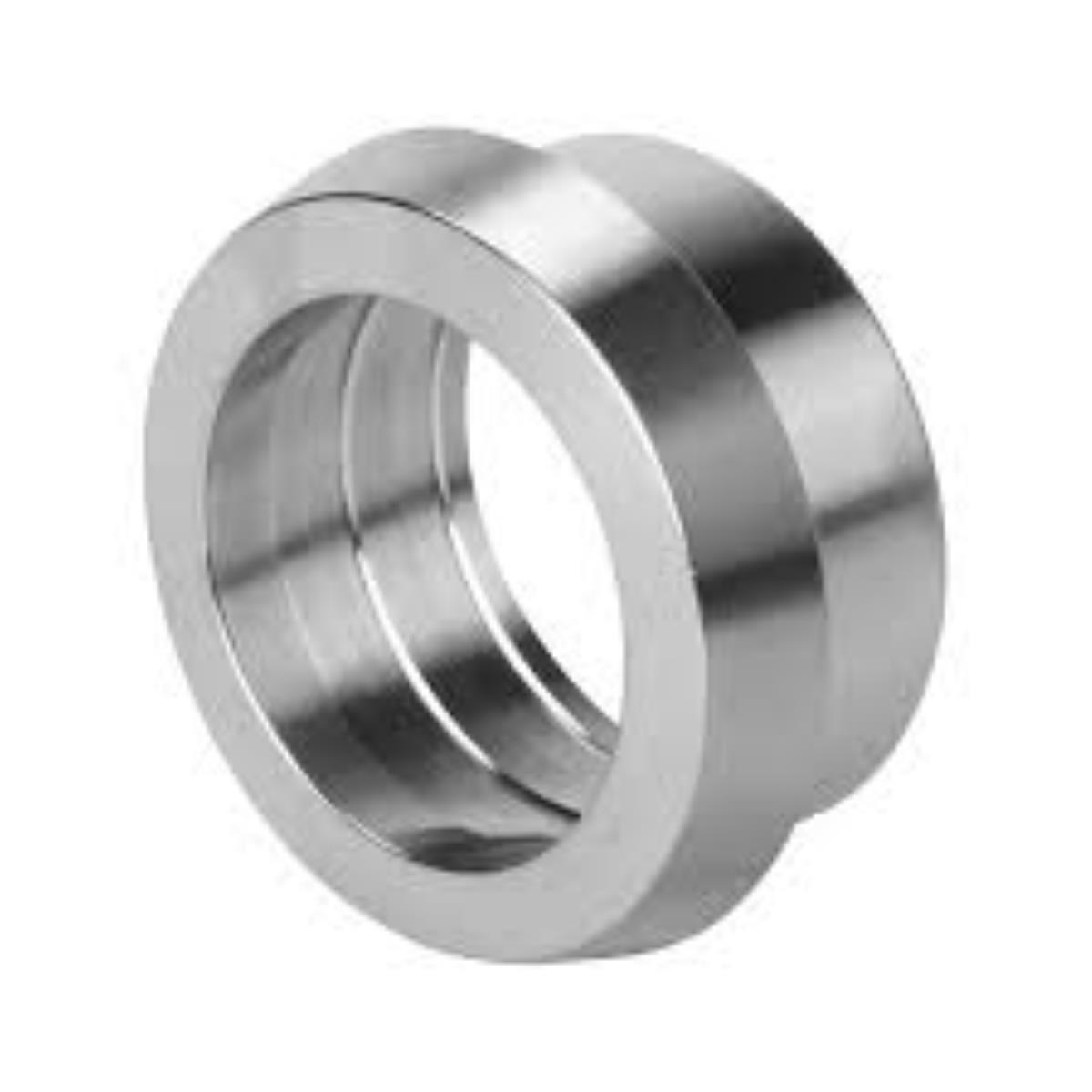

FEMALE UNION FOR DRILLING DIN 11851
ONLINE CATALOGUE › FITTINGS FOR THE CHEMICAL AND FOOD INDUSTRY › STAINLESS STEEL FITTINGS DIN 11851
Download sheet in pdf format
T111 D
MALE AISI 316 STAINLESS STEEL UNION DRILLED ACCORDING TO DIN 11851 STANDARD
MALE AISI 316 STAINLESS STEEL UNION DRILLED ACCORDING TO DIN 11851 STANDARD
| DIMENSION | DIAMETER TANG mm |
| DN10 | 10X18 |
| DN15 | 16x24 |
| DN20 | 20x30 |
| DN25 | 25x35 |
| DN32 | 31x41 |
| DN40 | 37x48 |
| DN50 | 49x61 |
| DN65 | 66x79 |
| DN80 | 81x93 |
| DN100 | 97.6x114 |
| DN104 | 100x114 |
