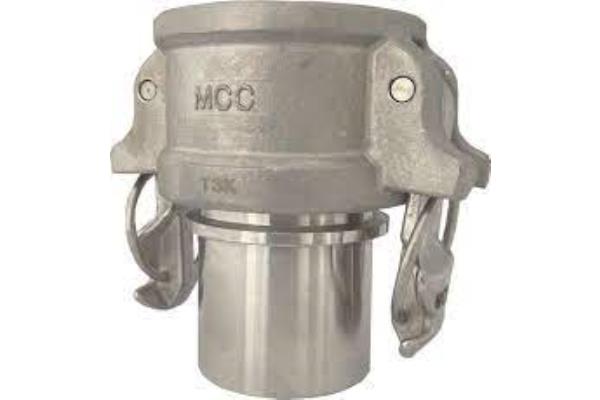

SELF LOCK FITTING TYPE C EN14420-7 - smooth hose holder
ONLINE CATALOGUE › FITTINGS FOR THE CHEMICAL AND FOOD INDUSTRY › CAMLOCK FITTINGS
Download sheet in pdf format
Ideal for use in pressing flexible hoses using steel pressing ring nuts which, during the crushing phase, hook onto the ring placed on the hose holder before the fitting to guarantee greater safety against the fitting slipping out. Ideal for use in pressing flexible hoses with THERMOPLASTIC LYNER underlayer such as polyethylene, Crosslinked, PTFE, PFA, PVDF using steel pressing ring nuts which, during the crushing phase, hook onto the ring placed on the hose holder before the fitting to guarantee greater safety against the fitting slipping out. This version also has a smooth tang and a safety lock system.
Available MATERIAL: AISI316 STEEL| DIAMETER NOMINAL | DIAMETER HOSE HOLDER mm | PRESSURE MAXIMUM BAR |
| DN025 | 25 | 16 |
| DN032 | 32 | 16 |
| DN040 | 38 | 16 |
| DN050 | 50 | 16 |
| DN065 | 63 | 16 |
| DN080 | 75 | 16 |
| DN100 | 100 | 16 |
