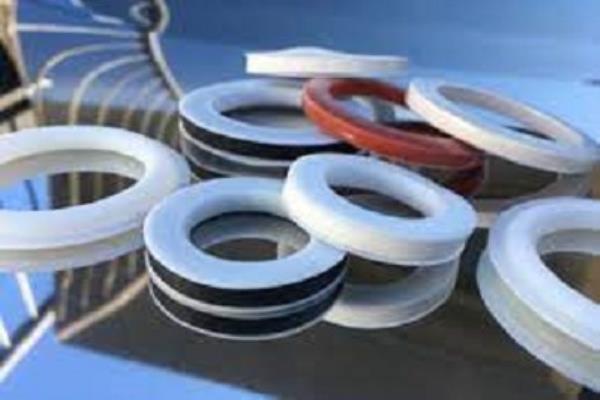

CAMLOCK SEALS
ONLINE CATALOGUE › FITTINGS FOR THE CHEMICAL AND FOOD INDUSTRY › CAMLOCK FITTINGS
Download sheet in pdf format
According to the REGULATION FOR FOOD GRADE ENVIRONMENTS EU1935/2004
| COLOR | NORM | MATERIAL | DN 15 | DN 20 | DN 25 | DN 32 | DN 40 | DN 50 | DN 65 | DN 80 | DN 100 | DN 125 | DN 150 | DN 200 |
| BLACK | BLUE | NBR | X | X | X | X | X | X | X | X | X | X | X | X |
| BLACK | WHITE | EPDM | X | X | X | X | X | X | X | X | X | X | X | - |
| BLACK | YELLOW | FKM-VITON ® | X | X | X | X | X | X | X | X | X | X | X | - |
| GREEN | - | CSM | X | X | X | X | X | X | X | X | X | X | X | - |
| BLACK | WHITE PTFE COVER | NBR/PTFE | X | X | X | X | X | X | X | X | X | - | - | - |
| BLACK | WHITE PTFE COVER | FKM/PTFE | X | X | X | X | X | X | X | X | X | - | - | - |
| BLACK | COVERAGE WHITE PTFE | EPDM/PTFE | X | X | X | X | X | X | X | X | X | - | - | - |
| RED | COVERAGE SILICONE/FEP | SILICONE/FEP | X | X | X | X | X | X | X | X | X | - | - | - |
| WHITE | EU1935/2004 | EPDM | X | X | X | X | X | X | X | X | X | - | - | - |
| RED | EU1935/2004 | SILICONE | X | X | X | X | X | X | X | X | X | - | - | - |
| WHITE | EN 14420 EU1935/2004 | EPDM | X | X | X | X | X | X | X | X | X | X | X | - |
| WHITE | EN 14420 EU1935/2004 | NBR | X | X | X | X | X | X | X | X | X | X | X | - |
| WHITE | EN 14420 EU1935/2004 | SILICONE | X | X | X | X | X | X | X | X | X | X | X | - |
| BLACK | - | PU | X | X | X | X | X | X | X | X | X | X | - | - |
| BLUE | - | PU | X | X | X | X | X | X | X | X | X | X | - | - |
| TRANSPARENT | - | PU | X | X | X | X | X | X | X | X | X | X | - | - |
