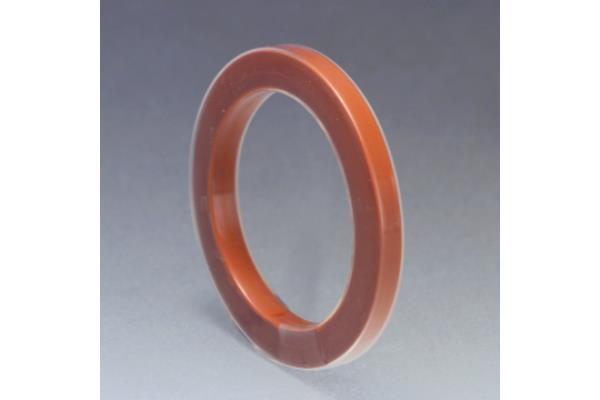

CAMLOCK FEP-SILICONE CORE GASKET



Download sheet in pdf format
ELASTIC SEAL FOR CAM LOCK FEMALE FITTING IN FEP (Fluorinated Ethylene Propylene) WITH SILICONE HEART Weight 40 g - RED COLOR - compliant with RoHs and REAC


DN INTERNAL DIAMETER
mm
OUTER DIAMETER
mm
THICKNESS
mm
1/2" 16.00 +/- 0.3 26.30 +/-0.3 4.00 +/-0.10
3/4" 22.22 +/- 0.3 34.93 +/-0.3 5.54 +/-0.10
1" 26.99 +/- 0.3 39.69 +/-0.3 6.35 +/-0.10
1"1/4 34.53 +/- 0.3 49.21 +/-0.3 6.35 +/-0.10
1"1/2 41.27 +/- 0.3 55.56 +/-0.3 6.35 +/-0.10
2" 50.80 +/- 0.3 66.67 +/-0.3 6.35 +/-0.10
2"1/2 60.32 +/- 0.3 79.37 +/-0.3 6.35 +/-0.10
3" 76.20 +/- 0.4 94.45 +/-0.4 6.35 +/-0.10
4" 101.30 +/- 0.4 123.30 +/-0.4 6.35 +/-0.10
5" 127.00 +/- 0.4 150.30 +/-0.4 6.35 +/-0.10
6" 152.40 +/- 0.5 179.83 +/-0.5 6.35 +/-0.10
8" 237.00 +/- 0.5 237.30 +/-0.5 9.50 +/-0.10
