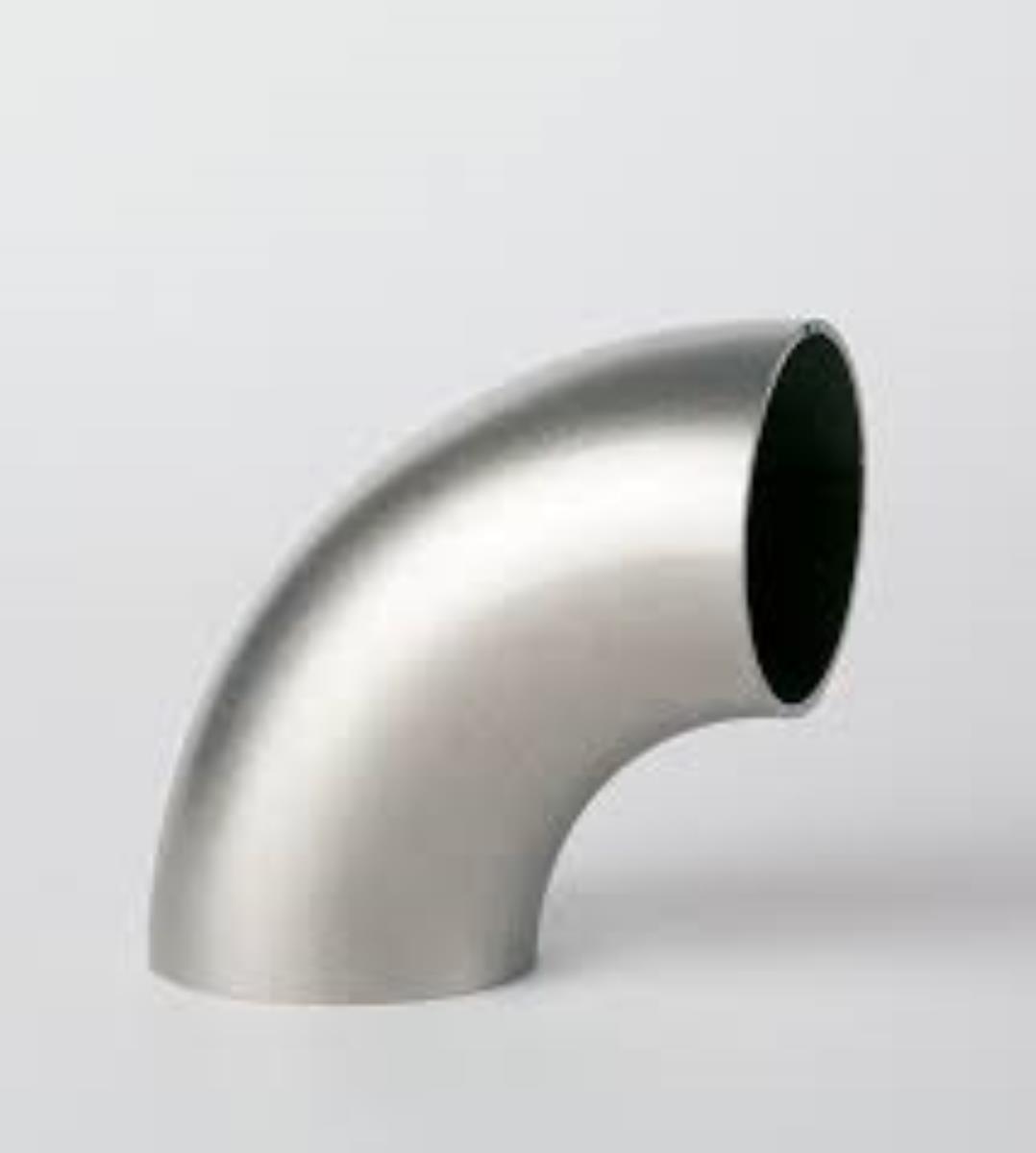

90° BEND TO WELD INTERNAL AND EXTERNAL FINISHING 2B

MATERIAL: AISI 316

standard wall thickness 2mm on request 1.5 and 3mm

External diameter inches External diameter mm Curvature radius mm
1/4" 13.70 20.50
3/8" 5.20pm 30.00
1/2" 9.30pm 25.40
3/4" 26.90 28.50
1" 33.70 38.10
1"1/4 42.40 47.80
1"1/2 48.30 57.10
2" 60.30 63.50
2"1/2 76.10 76.20
3" 88.90 114.30
3"1/2 101.60 133.50
