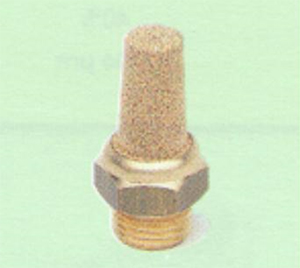

470 Silencer
ONLINE CATALOGUE › FITTINGS FOR COMPRESSED AIR › FITTINGS AND CONNECTIONS FOR PNEUMATIC SYSTEMS › Accessories, mini valves, silencers
Download sheet in pdf format

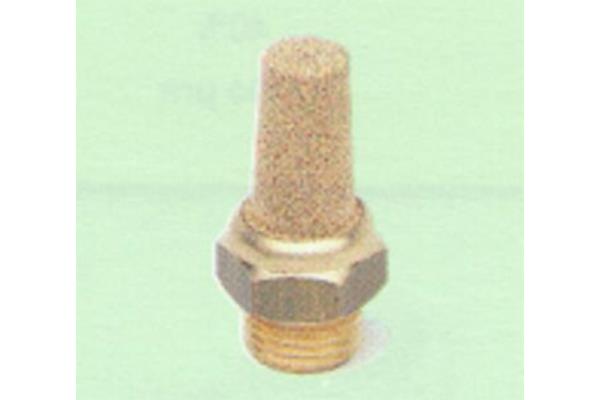

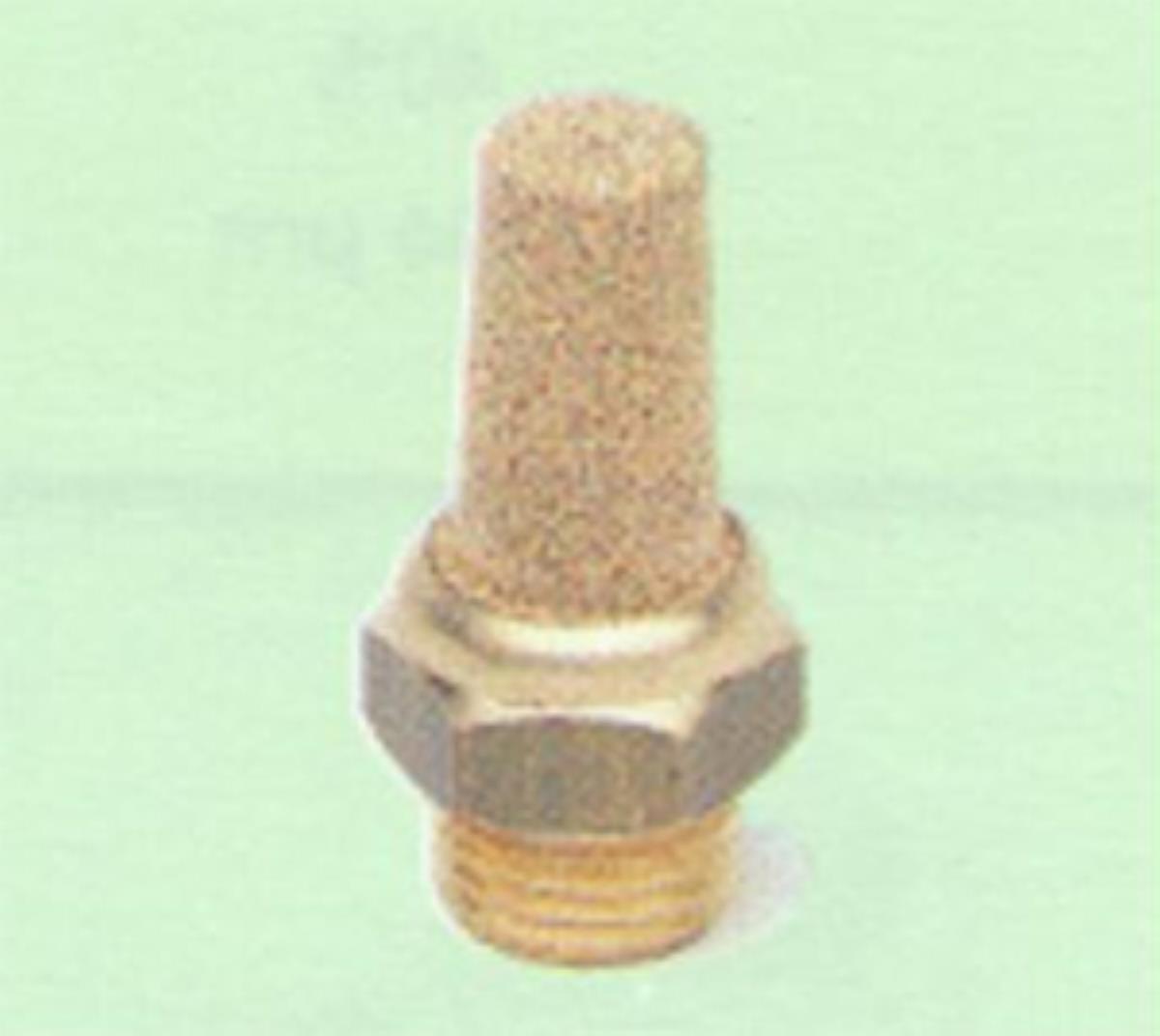

BRASS TRUNCED CONE SILENCER. MAXIMUM PRESSURE 12 bar - MINIMUM TEMPERATURE -10 bar - MAXIMUM TEMPERATURE +80° C - AVERAGE POROSITY 40% - FILTRATION THRESHOLD 36 microns.
| Item number | Measure | noise reduction (db) at 6 bar |
|---|---|---|
| 32A47005M | M5 | - |
| 32A4701/8 | 1/8 | 14.6 |
| 32A4701/4 | 1/4 | 26 |
| 32A4703/8 | 3/8 | 26 |
| 32A4701/2 | 1/2 | 20 |
| 32A4703/4 | 3/4 | 19 |
| 32A4701 | 1" | 17 |
