METRIC ROUND NICKEL PLATED MALE STRAIGHT
ONLINE CATALOGUE › FITTINGS FOR COMPRESSED AIR › FITTINGS AND CONNECTIONS FOR PNEUMATIC SYSTEMS › 100 Series PNEUMATIC QUICK FITTINGS IN NICKEL PLATED BRASS METALLIC PUSH
Download sheet in pdf format

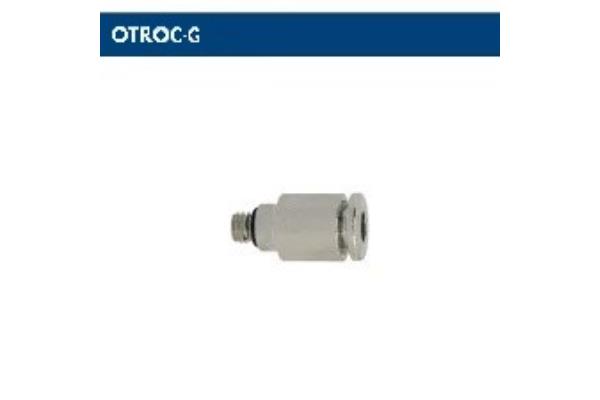

Code: art. 100_4 OTROC-G
art. 100_4 OTROC-G
Compatible Fluids: Air · Compressed Air · Vacuum · Operating Pressure: 16 Bar
Standard pack 10 pieces.
art. 100_4 OTROC-G
NICKEL PLATED METRIC ROUND MALE STRAIGHT FOR METRIC PIPE
Operating Temperature: -20 ºC to 80 ºC
Construction Materials: Nickel-plated brass UNI EN 12164 CW 614N and UNI EN 12165 CW 617N
Usable tubes: Polyamide tube · Polyethylene tube · Polyurethane tube Oring types: NBR without siliconeConstruction Materials: Nickel-plated brass UNI EN 12164 CW 614N and UNI EN 12165 CW 617N
Compatible Fluids: Air · Compressed Air · Vacuum · Operating Pressure: 16 Bar
Standard pack 10 pieces.
| CODE | Tube | fillet steak | Length | Key | WEIGHT |
| mm | conical | mm | gr | ||
| OTRC04M5 | 4 | M5x0.8 | 19.0 | 2.50 | 5 |
| OTRC04M6 | 4 | M6x1 | 20.0 | 2.50 | 8 |
| OTRC04M7 | 4 | M7x1 | 20.5 | 2.50 | 11 |
| OTRC06M5 | 6 | M5x0.8 | 21.1 | 2.50 | 8 |
| OTRC06M7 | 6 | M7x1 | 20.5 | 4 | 9 |
