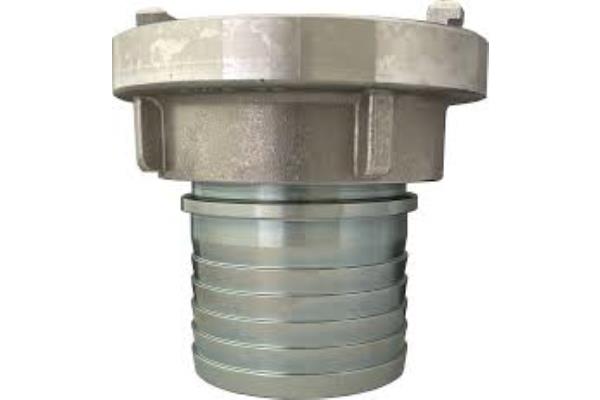

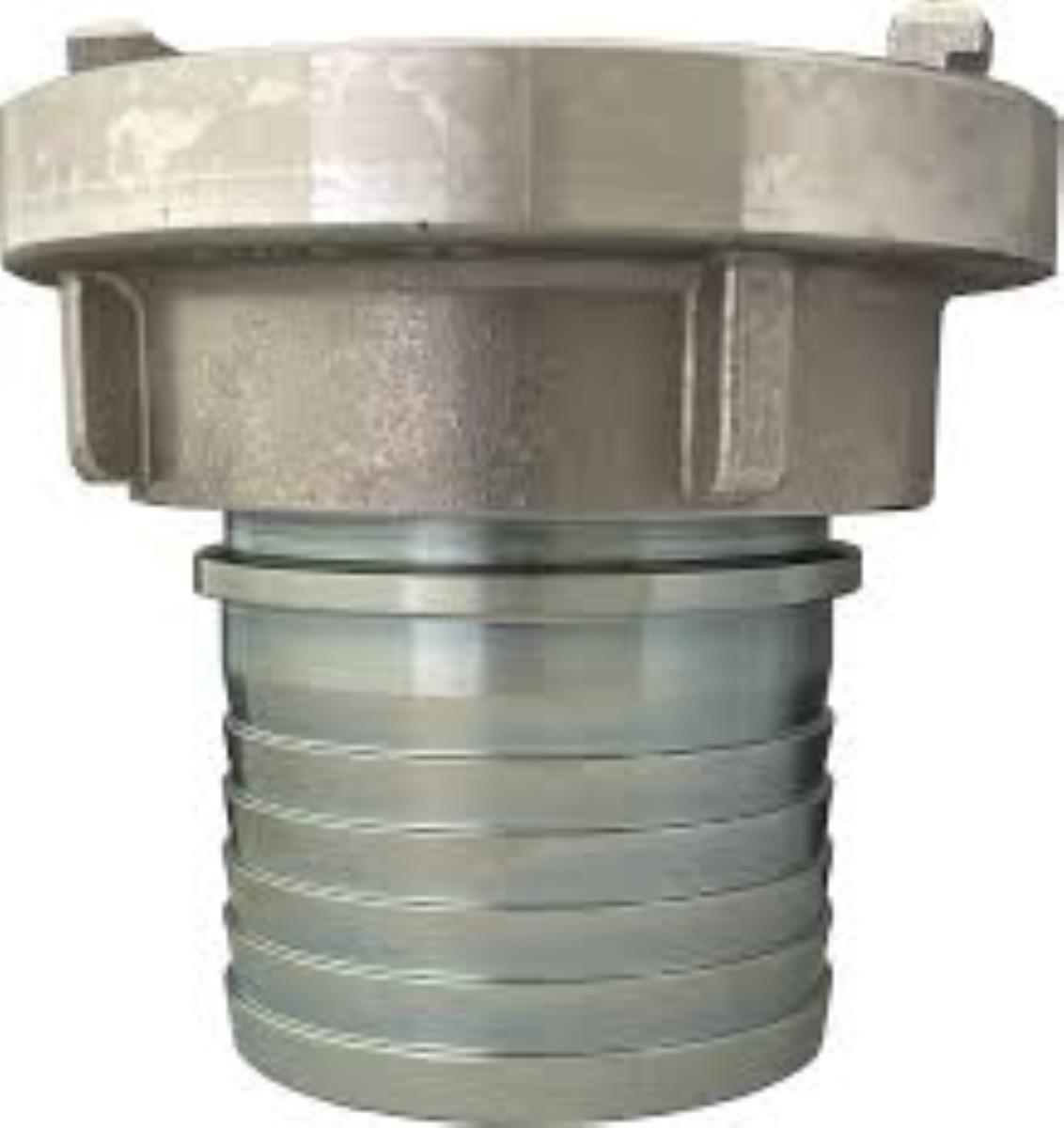

STORZ FITTING IN FORGED ALUMINUM DIN - HOSE PORT WITH STEEL TANK
ONLINE CATALOGUE › FITTINGS FOR AGRICULTURAL-INDUSTRIAL MAINTENANCE › SYMMETRICAL TWISTED FITTINGS › STORZ FORGED ALUMINUM FITTINGS
Download sheet in pdf format
VERSION WITH THICKLY SHANGED TANG FOR RUBBER OR PVC HOSES, WHERE A STRONG GRIP IS REQUIRED FOR HIGH PRESSURES, WITH SAFETY COLLAR.
Operating pressure: 16 bar
Material: FORGED ALUMINUM - STEEL TANG
Standard seals WHITE NBR, on request in transparent FDA or green FKM silicone
KA = INSIDE DISTANCE OF CLOSING FLAPS (mm)
Operating pressure: 16 bar
Material: FORGED ALUMINUM - STEEL TANG
Standard seals WHITE NBR, on request in transparent FDA or green FKM silicone
KA = INSIDE DISTANCE OF CLOSING FLAPS (mm)
| size/KA mm | hose holder mm |
|---|---|
| DN52(C) / KA66 | 50 |
| DN75(B) / KA89 | 75 |
| DN110(A) / KA133 | 100 |
