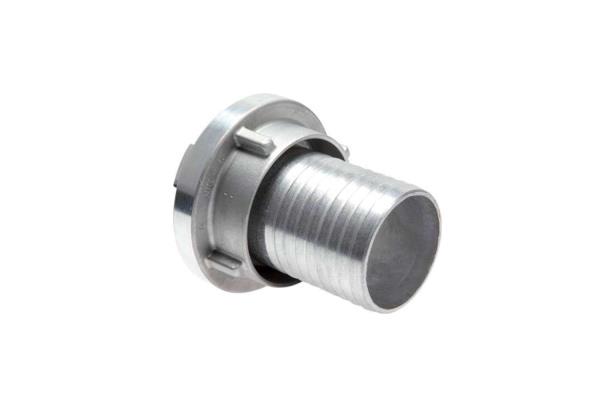

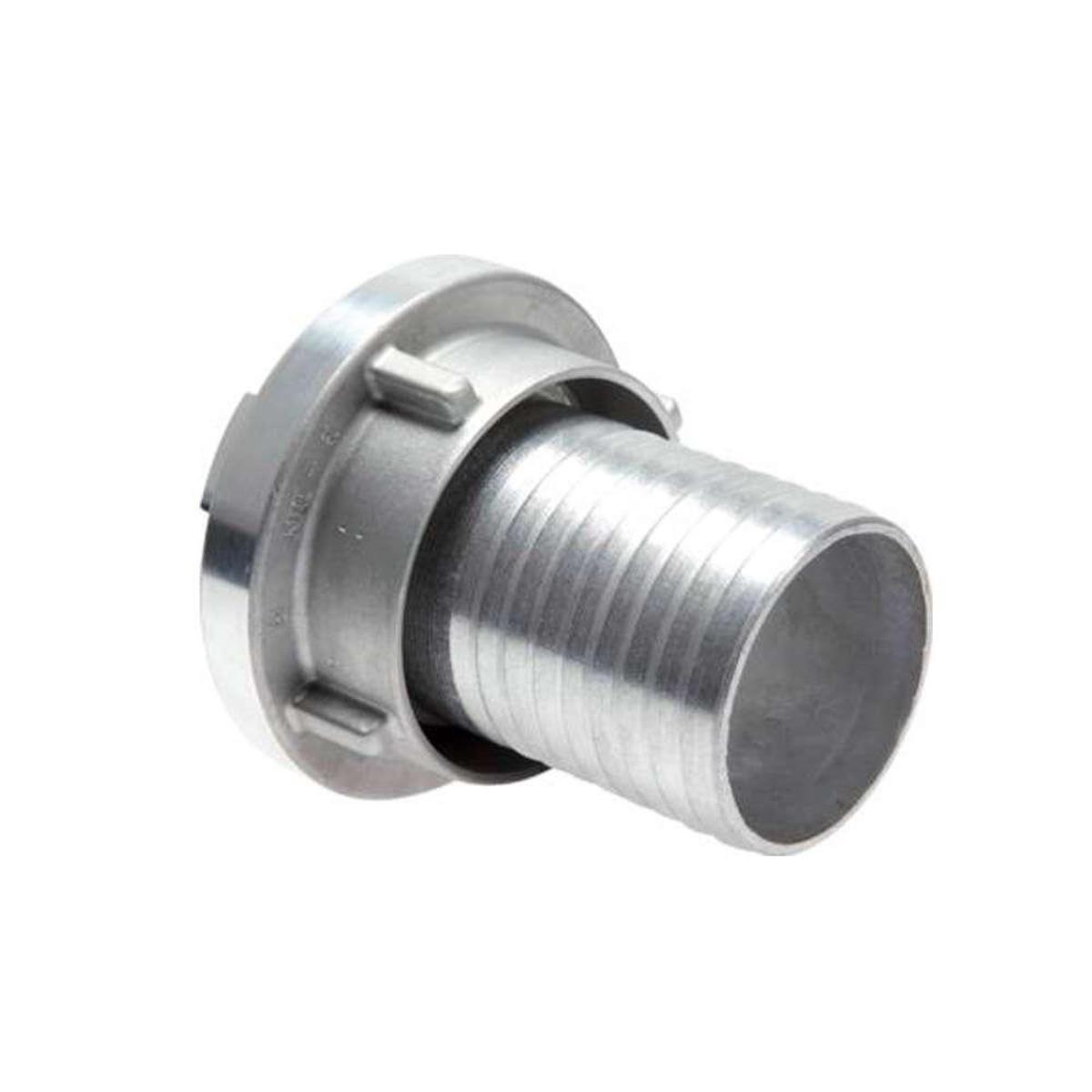

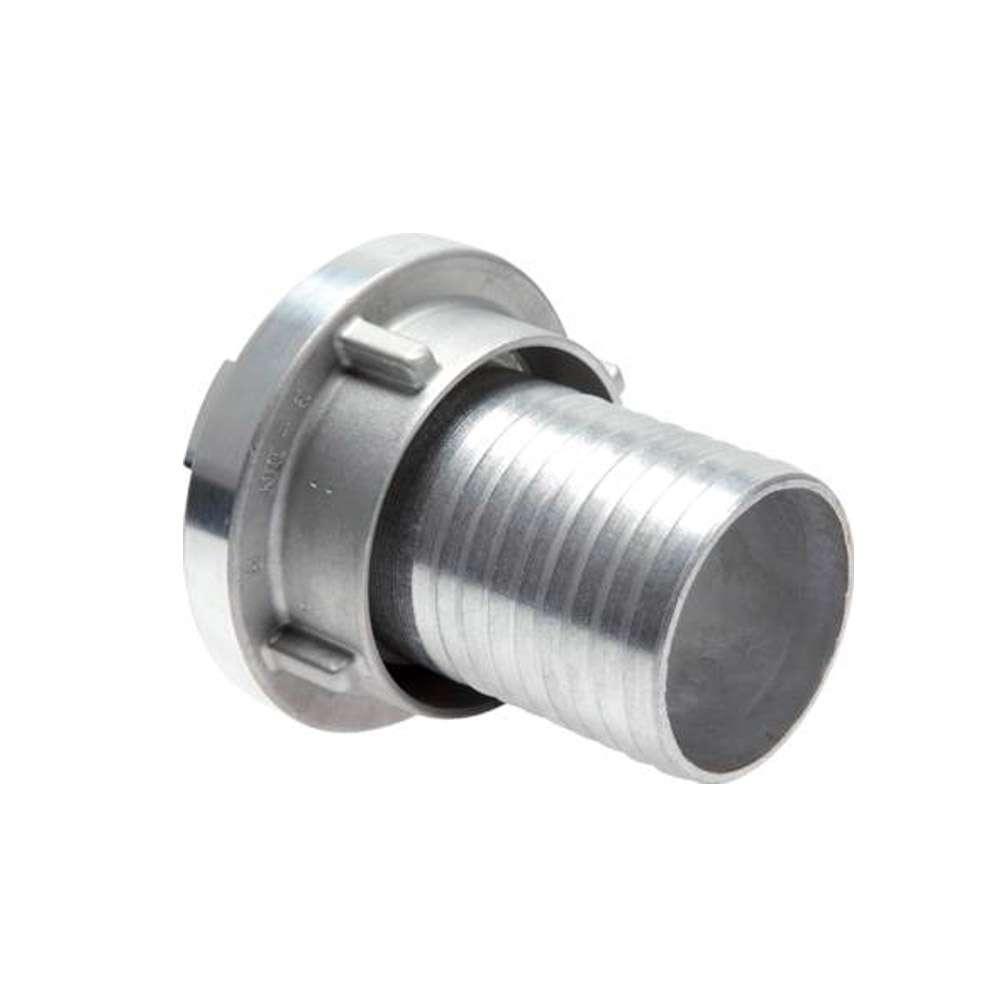

STORZ FORGED ALUMINUM FITTING DIN HOSE PORT WITH RED TANK
ONLINE CATALOGUE › FITTINGS FOR AGRICULTURAL-INDUSTRIAL MAINTENANCE › SYMMETRICAL TWISTED FITTINGS › STORZ FORGED ALUMINUM FITTINGS
Download sheet in pdf format
VERSION WITH THICKLY SHANGED TANG FOR RUBBER OR PVC HOSES WHERE A STRONG GRIP IS REQUIRED FOR HIGH PRESSURES.
On request, PADLOCKABLE version **
Operating pressure: 16 bar
Material: FORGED ALUMINUM
Standard seals WHITE NBR, on request in transparent FDA or green FKM silicone
KA = INSIDE DISTANCE OF CLOSING FLAPS (mm)
On request, PADLOCKABLE version **
Operating pressure: 16 bar
Material: FORGED ALUMINUM
Standard seals WHITE NBR, on request in transparent FDA or green FKM silicone
KA = INSIDE DISTANCE OF CLOSING FLAPS (mm)
| size/KA mm | hose holder mm | safety collar |
|---|---|---|
| DN52(C) / KA66 | 50 | x |
| ** DN75(B) / KA89 | 75 | x |
| DN100(A) / KA115 | 100 | - |
| DN110(A) / KA133 | 100 | x |
