CAM CONCRETE FEMALE FITTING
ONLINE CATALOGUE › FITTINGS FOR AGRICULTURAL-INDUSTRIAL MAINTENANCE › MALLEABLE CAST IRON FITTINGS FOR CONCRETE
Download sheet in pdf format

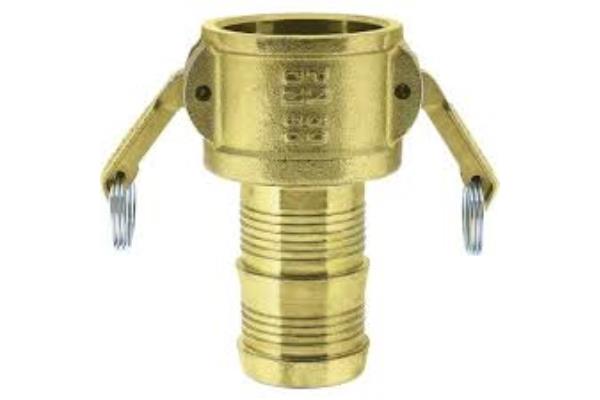

YELLOW GALVANIZED DUCTIVE CAST IRON FITTING WITH HOSE PORT.
INCLUDING OIL-PROOF BLACK NBR RUBBER GASKET
nominal pressure PN40 bar
System 22
INCLUDING OIL-PROOF BLACK NBR RUBBER GASKET
nominal pressure PN40 bar
System 22
| Item | DN hose holder | diameter RAPID ATTACK mm |
| 31M30F025PTG25 a lever | 25 | 35.5 |
| 31M30FX25PTG25 | 25 | 42 |
| 31M30F035PTG35 | 35 | 51 |
| 31M30F035PTG38 | 38 | 51 |
| 31M30F042PTG42 | 42 | 54 |
| 31M30F050PTG50 | 50 | 64 |
| 31M30F065PTG65 | 65 | 74 |
