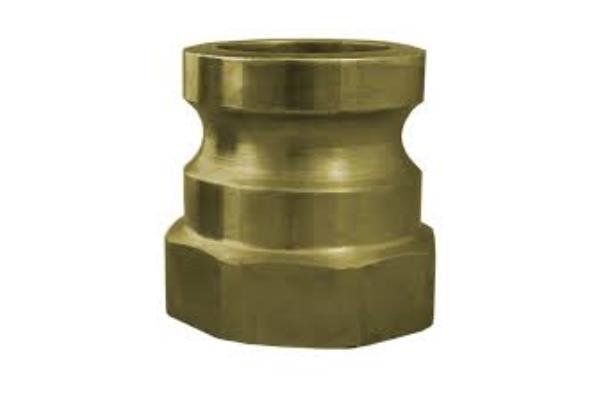

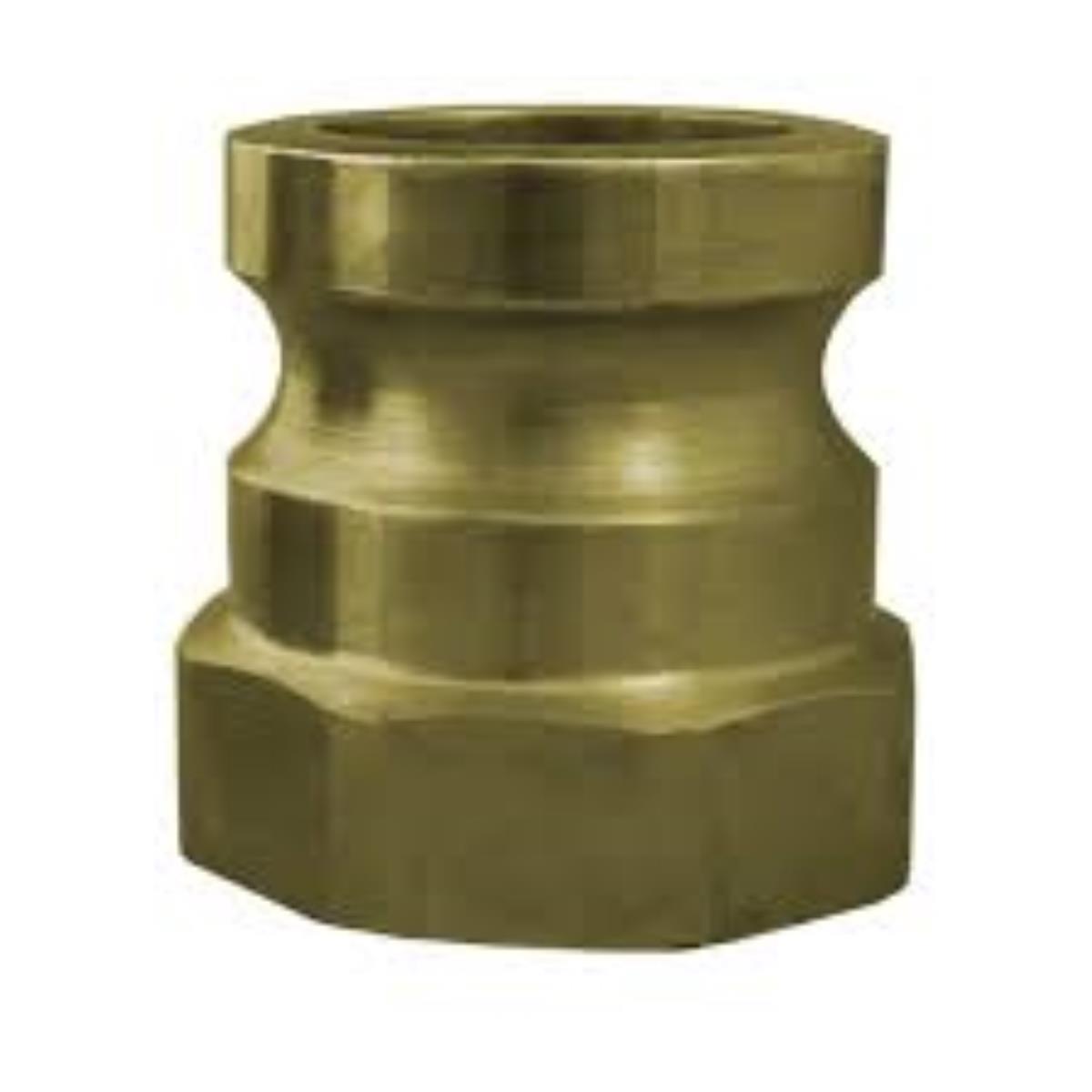

CAM BETON MALE FITTING WITH FEMALE THREAD
ONLINE CATALOGUE › FITTINGS FOR AGRICULTURAL-INDUSTRIAL MAINTENANCE › MALLEABLE CAST IRON FITTINGS FOR CONCRETE
Download sheet in pdf format
YELLOW GALVANIZED DUCTIVE CAST IRON FITTING
ISO228 FEMALE THREAD
nominal pressure PN 50 bar
System 22
ISO228 FEMALE THREAD
nominal pressure PN 50 bar
System 22
| Item | fillet steak bsp | Internal diameter Rapid attack |
| 31M3050025MF1 | 1" | 35 |
| 31M3050X25MF1 | 1" | 41 |
| 31M30F0035MF1 | 1" | 49.5 |
| 31M30F0054MF11/4 | 1"1/4 | 41 |
| 31M30M0035MF11/4 | 1"1/4 | 49.5 |
| 31M30M0054MF11/4 | 1"1/4 | 63 |
| 31M30M0035MF11/2 | 1"1/2 | 49.5 |
| 31M30M0042MF11/2 | 1"1/2 | 53 |
| 31M30M0050MF11/2 | 1"1/2 | 63 |
| 31M30M0035MF2 | 2" | 49.5 |
| 31M30M0050MF2 | 2" | 63 |
| 31M30M0050MF21/2 | 2"1/2 | 63 |
| 31M30M0065MF21/2 | 2"1/2 | 73 |
