TWO-WAY DIVIDER WITH GATE VALVES
ONLINE CATALOGUE › FITTINGS FOR AGRICULTURAL-INDUSTRIAL MAINTENANCE › FIRE-FIGHTING ITEMS › UNI FITTINGS AND REDUCERS
Download sheet in pdf format
Code: 1903-2V

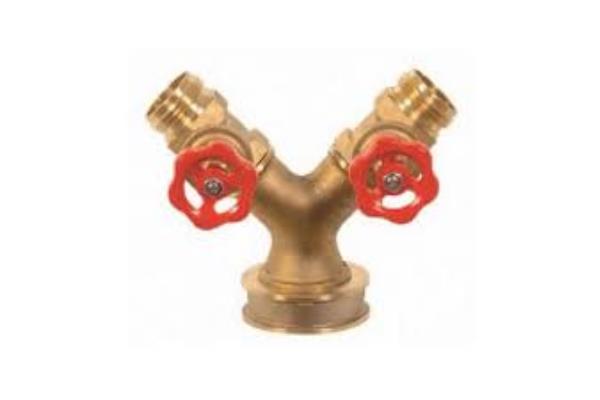

TWO-WAY BRASS DIVIDER UNI EN 1982
FEMALE INPUT SWIVEL UNI 804
MALE OUTPUTS UNI 810
WITH SHUTTERS FIG. 1903-2V
TWO-WAY BRASS DIVIDER UNI EN 1982
FEMALE INPUT SWIVEL UNI 804
MALE OUTPUTS UNI 810
WITH SHUTTERS FIG. 1903-2V
| CODE | CONFIGURATION |
| 34DIV2VUNI_F45MM25 | FEMALE SWIVEL UNI 45 MALE-MALE UNI 25 |
| 34DIV2VUNI_F45MM45 | FEMALE SWIVEL UNI 45 MALE-MALE UNI 45 |
| 34DIV2VUNI_F70MM45 | FEMALE SWIVEL UNI 70 MALE-MALE UNI 45 |
| 34DIV2VUNI_F70MM70 | FEMALE SWIVEL UNI 70 MALE-MALE UNI 70 |
| 34DIVU2VNI_F100MM70 | FEMALE SWIVEL UNI 100 MALE-MALE UNI 70 |
