SAFETY CLAMP IN FDA POLYPROPYLENE
ONLINE CATALOGUE › CLAMPS AND TIGHTENING SYSTEMS › SAFETY CLAMP - SPANNLOC
Download sheet in pdf format

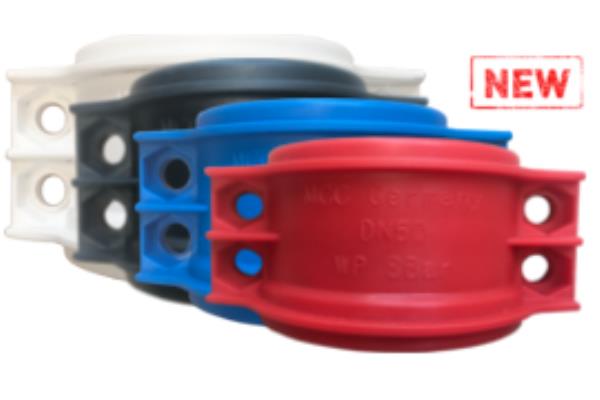

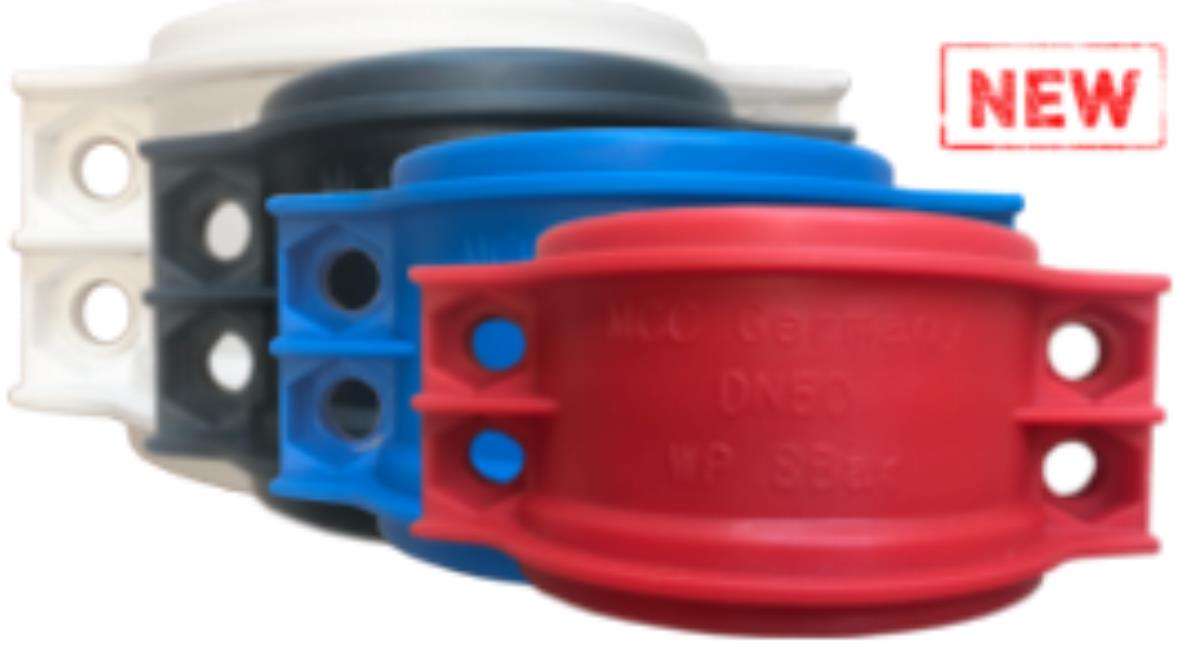

SPANNLOC" type safety clamp in POLYPROPYLENE - Stainless steel screws
Maximum working pressure: 8 bar
FDA VERSION for uses in contact with fluids used for human consumption.
available colors: BLACK - WHITE - BLUE - RED
The size identifies the closing range compatible with the external diameter of the tube
Attention!
The seal is guaranteed only for tightening on smooth tubes externally or on any smooth sleeves at the ends.
Maximum working pressure: 8 bar
FDA VERSION for uses in contact with fluids used for human consumption.
available colors: BLACK - WHITE - BLUE - RED
The size identifies the closing range compatible with the external diameter of the tube
Attention!
The seal is guaranteed only for tightening on smooth tubes externally or on any smooth sleeves at the ends.
| dn | Max pressure | closing field | screws |
| 25 | 25 | 36-39 | M6x20 |
| 32 | 25 | 43-46 | M6x20 |
| 38 | 25 | 50-53 | M6x20 |
| 38 | 25 | 53-56 | M6x20 |
| 50 | 25 | 61-63 | M8x25 |
| 50 | 25 | 63-67 | M8x25 |
| 50 | 25 | 69-71 | M8x25 |
| 63 | 25 | 78-82 | M8x25 |
| 75 | 25 | 89-93 | M8x25 |
