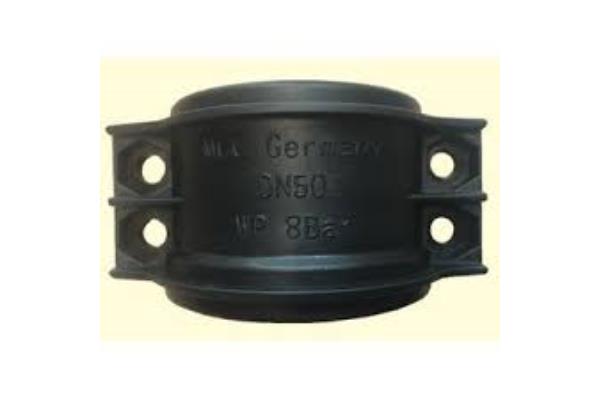

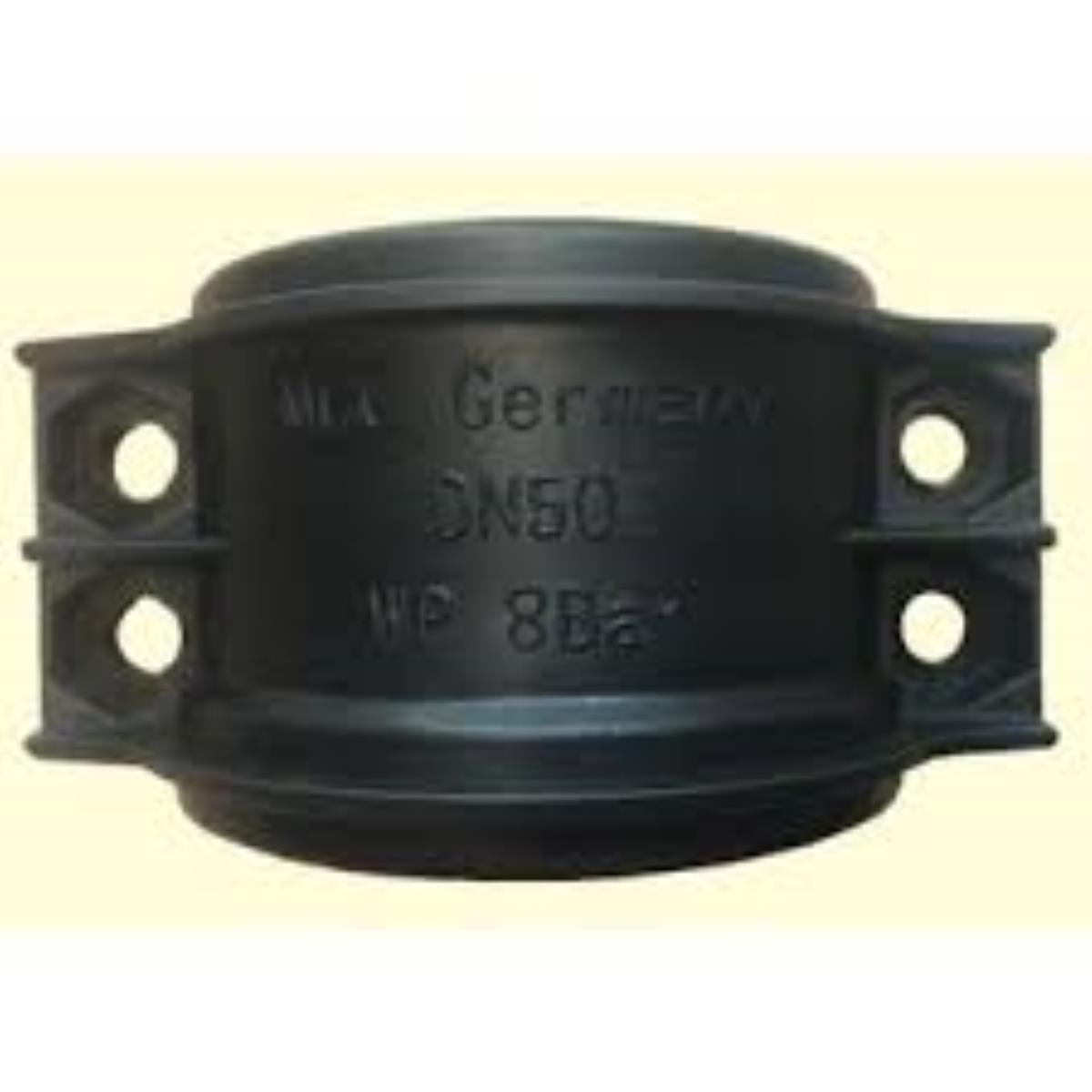

BLACK POLYPROPYLENE SAFETY CLAMP
Safety clamp "SPANNLOC type" in accordance with EN 14420-3 in BRASS - Stainless steel screws
Maximum working pressure: 25 bar up to DN 100.
The size identifies the closing range compatible with the external diameter of the tube
Attention!
The seal is guaranteed only for tightening on smooth tubes externally or on any smooth sleeves at the ends.
dn | Max pressure | closing field | screws |
13 | 25 | 22-24 | M6x20 |
19 | 25 | 30-33 | M6x20 |
25 | 25 | 36-39 | M6x20 |
32 | 25 | 43-46 | M6x20 |
38 | 25 | 50-53 | M6x20 |
38 | 25 | 53-56 | M6x20 |
50 | 25 | 61-63 | M8x25 |
50 | 25 | 63-67 | M8x25 |
50 | 25 | 69-71 | M8x25 |
63 | 25 | 78-82 | M8x25 |
75 | 25 | 89-93 | M8x25 |
